The ART MX822 Eight Channel Stereo Rackmount Mixer is a versatile eight input mixer for studio, live sound or installation applications. Each input accepts a mono or stereo signal and provides independent level, pan and effects send controls. Channel One includes a switchable mic/line source select and the XLR mic connector provides switchable phantom power.
Multiple MX822s may be chained for additional inputs using common 1/4-inch TRS cables. External effects processors can be linked in and mixed with independent level controls. A front panel headphone jack with separate level control allows independent monitoring.
ART MX822 Features
- Eight stereo/mono input channels with individual level, pan and effects send controls
- External effects loop with independent send and return controls
- Front panel 1/4-inch stereo (TRS) headphone jack with amplifier and independent level control for output monitoring
- Switchable balanced microphone XLR or 1/4-inch inputs on Channel One
- Switchable low noise +48V phantom power for microphone input
- Separate green and red LED signal and clip indicators for each input channel
- Six level left and right main output metering including clip indicators
- Balanced left and right XLR main outputs
- Multiple units may be chained together for additional inputs
- Rugged 1U rack mount steel case
- MX822 8-Channel Stereo Mic/Line Mixer1

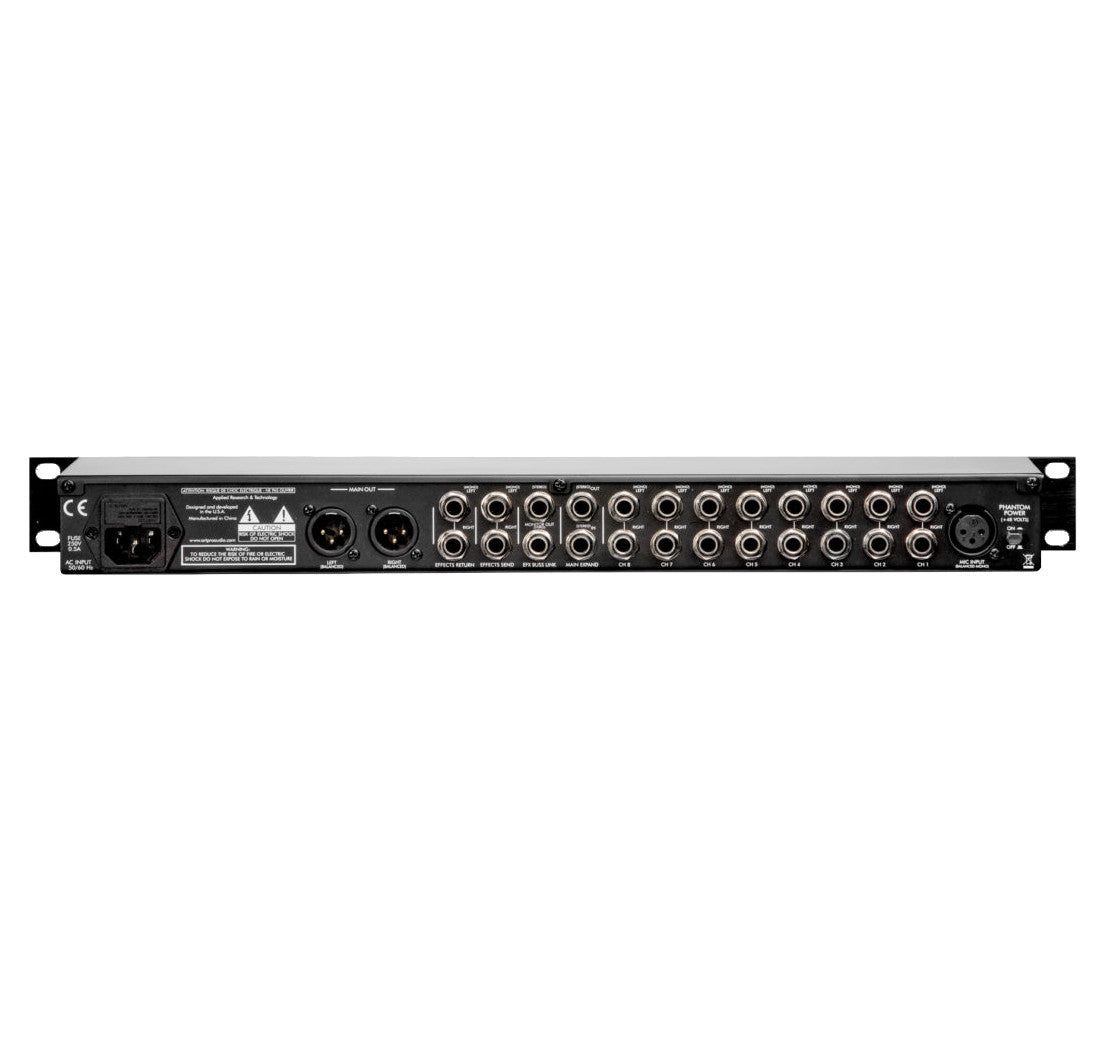

- Input Connections
- XLR-F balanced (MIC)
- 1/4″ TRS unbalanced (Ch1-Ch8, Effects Return)
- 1/4″ TRS stereo unbalanced (EFX Buss, Main Expand)
- Output Connections
- XLR-M balanced (Main)
- 1/4″ TRS unbalanced (Effectss Send)
- 1/4″ TRS stereo unbalanced (Monitor, Main Expand, Headphone)
- Input Impedance 1kΩ (MIC), 5k Ω (Ch1-Ch8)
- Output Impedance <1kΩ (Main, balanced), <25 Ω (Headphone)
- Total Harmonic Distortion <0.01% @ 1kHz
- Signal to Noise Ratio > 90dB typical (Ref 0dBu)
- Maximum Input Level -19dBu (MIC), +24dBu (Ch1-8)
- Maximum Output Level +24dBu (Main), +18dBu (Monitor, Effects Send)
- Maximum Gain+60dB (MIC), +14dB (Ch1-8)
- Phantom PowerSwitch Selectable, +48V DC, filtered, current limited
- Power Requirements
- USA – 95 to 125 VAC, 50-60 Hz
- Export units configured for country of destination
- Dimensions (HxWxD)1.75x19x6″ (44.5x483x152mm)
- Weight6.5 lbs (2.95 kg)
