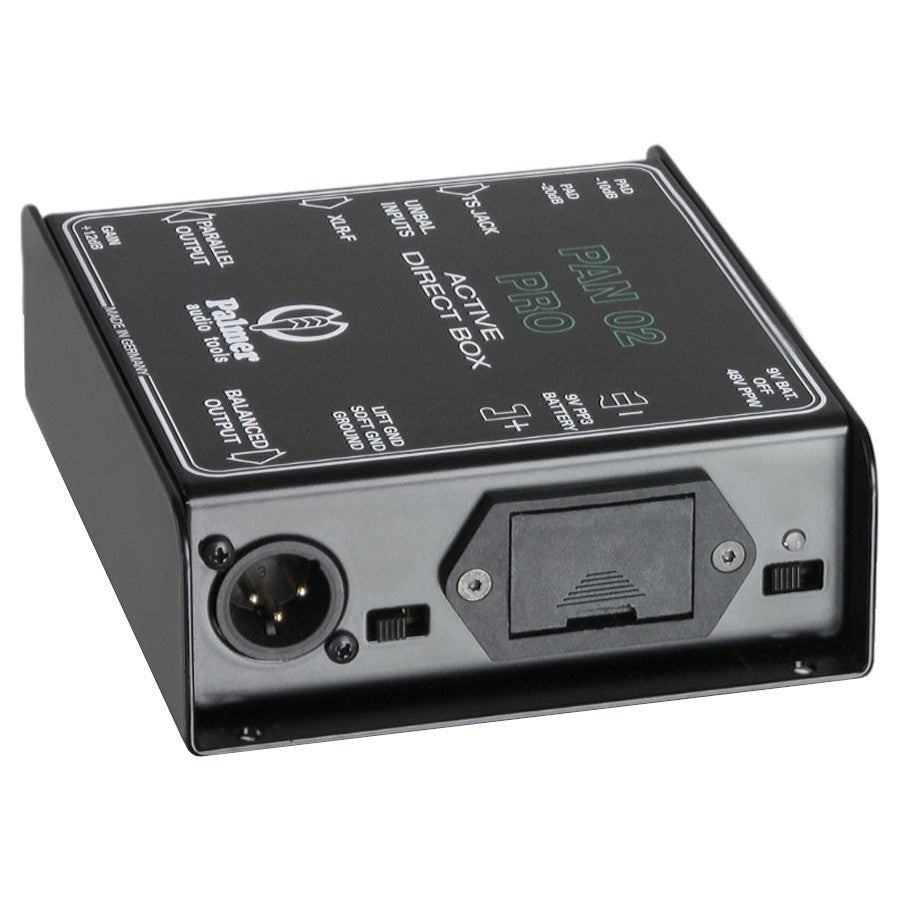

The Palmer PAN02 PRO is an active DI-box with outstanding additional functions. These include an unbalanced XLR input, in addition to the 3-way attenuator -10, -20, -30 dB and a switchable gain of 12 dB, connected with a maximum output voltage of +20 dBu. The Groundlift switch has a "lift" position allowing adjustments between a "soft and hard grounding." The balanced output is achieved with a high quality transformer in the Mumetall housing that was specially developed for this purpose. The PAN02 Pro can be powered either with a 9 V battery or 48 V phantom power. A two-color LED indicates which source supplies the power.
Palmer PAN 02 PRO Features
- First-class Active Di-box
- Unbalanced XLR Input
- 3-way attenuator (-10, -20, -30dB)
- Switchable gain (12dB)
- Max. Output voltage +20 dB
- Soft ground lift
- PAN 02 PRO Professional Active DI Box1
- Type active
- Channels 1
- Inputs 2
- Input connectors 6.3 mm jack, XLR
- Max. input level + 45 dBu
- Input impedance -10 & -20 dB: 70 k Ohm(s), -30 dB: 40 k Ohm(s), 0dB & 12 dB: 1 M Ohm(s)
- Input pad 0 dB, -10 dB, -20 dB, -30 dB
- Outputs 1
- THRU outputs/channel 1
- Output connectors 6.3 mm jack, XLR
- Max. output level + 20 dBu
- Output impedance 600 Ohm(s)
- Frequency response 20 - 20000 Hz
- Transformer balanced Yes
- Ratio 3.16:1, 10:1, 31.6:1, 1:4
- ControlsAttenuator, battery/+ 48 V Power, Boost, ground lift
- Operating voltage +48 V phantom power, 9 V block
- Cabinet material sheet steel
- Cabinet surface Powder coated
- Width 116 mm
- Depth 140 mm
- Height 43.5 mm
- Weight 0.85 kg
