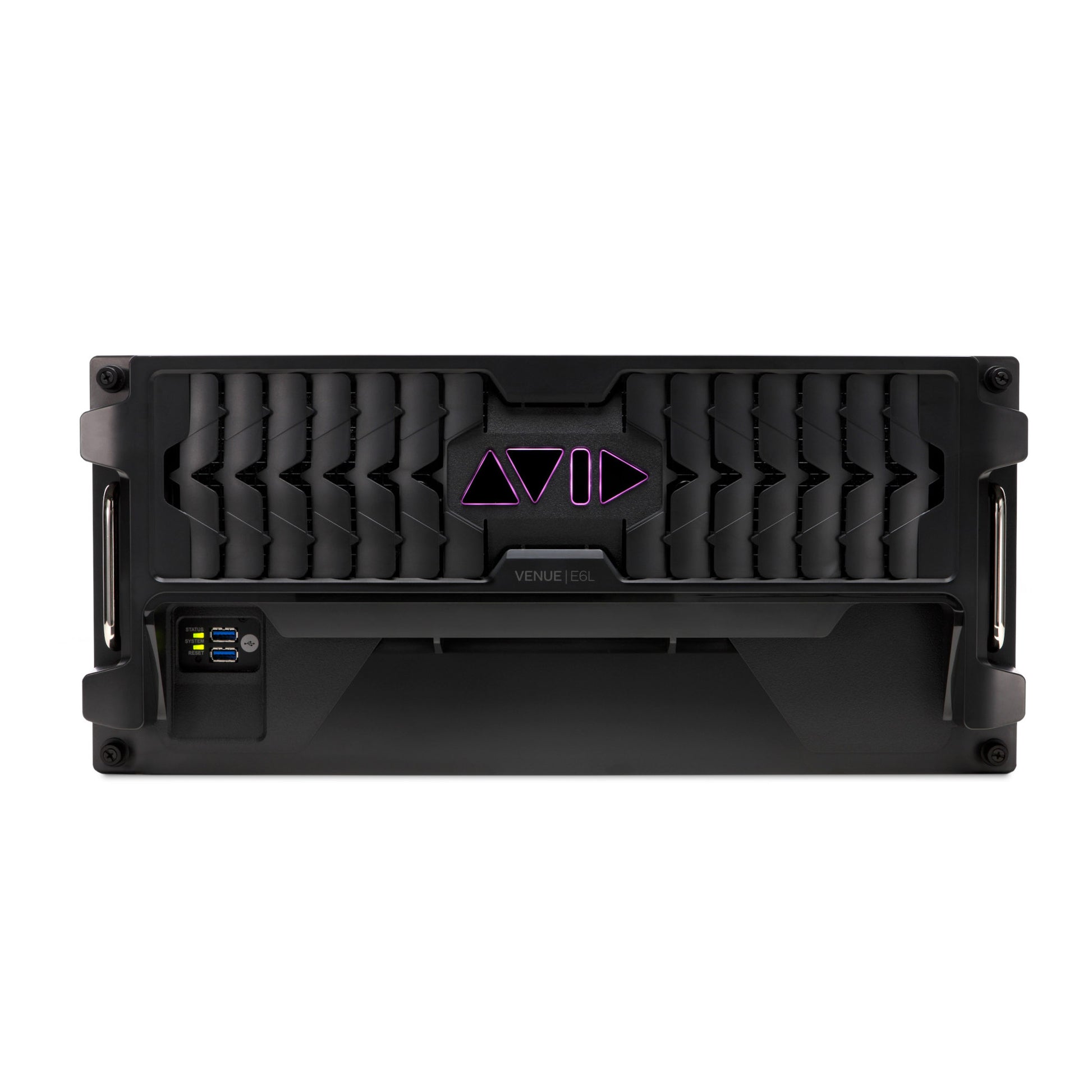

• Avid VENUE | E6L Control Surface Engine Front View
1 1

Avid VENUE

Avid VENUE

Soundpro Item: 64274 | Part Number: 9935-65974-00

$29,995.00
$29,995.00 $29,995.00
Your Price Sold out
MSRP: $29,995.00 | MAP: $29,995.00
  • 144 input channels
  • 64 mix busses + LCR
  • 125 plugin rack slots
  • 16 x 16 matrix
  • Includes 1 HDX-192 DSP card for sound processing (supports up to 2)
  • 4 expansion slots to add capabilities through option cards, including Waves SoundGrid support, Ethernet AVB, and MADI I/O
Log in or register for YOUR best price

Get extraordinary processing power and support for up to 144 input channels in a high-performance engine that’s ideal for mid-size live productions.

View full details

Specifications

  • Sample Rates96 kHz
  • Input Channels144
  • Input ProcessingHEAT, HPF, LPF, 4-band PEQ, Expander/Gate, Compressor/Limiter, Delay, 4 plugin inserts, hardware insert
  • Mix Busses64 + LCR
  • Output Processing7-band PEQ, Compressor/Limiter, Delay, 4 plugin inserts, hardware insert
  • Matrix16 x 16
  • VCAs48
  • Stereo Solo Busses2, with independent control
  • Graphic EQs (31-band)32
  • Digital Signal ProcessingSupports up to four HDX-192 DSP Expansion Cards for plugin processing; includes one card
  • Plugin Support64-bit AAX DSP; also supports Waves SoundGrid systems through the WSG-HD Option Card for full integration with S6L, or over MADI
  • Plugin Slots400
  • Pro Tools IntegrationRecord/play back up to 128 audio tracks via Ethernet AVB
  • Expansion Option Card Slots4 max
  • Ethernet AVB PortsIncludes two AVB-192 Ethernet AVB Network Cards with two ports (per card), selectable as etherCON (copper) or SFP (fiber), with redundant ring topology; supports Luminex GigaCore 26i and GigaCore 10 AVB switches for redundant star configuration
  • I/O SharingSupports up to three S6L systems, up to 192 inputs total (requires two AVB-192 Ethernet AVB Network Cards to share I/O)
  • Word Clock I/OClock I/O BNC, 75 Ohm coaxial
  • USB Ports5 USB 2.0 ports (2 front, 2 back, 1 internal)
  • Power SupplyN+1 redundant, internal hot-swappable PSUs
  • Dimensions (H x W x D)8.6 x 16.9 x 19 inches (218 x 430 x 483 mm)
  • Rack Spaces5U
  • Weight74 lbs (33 kg)
