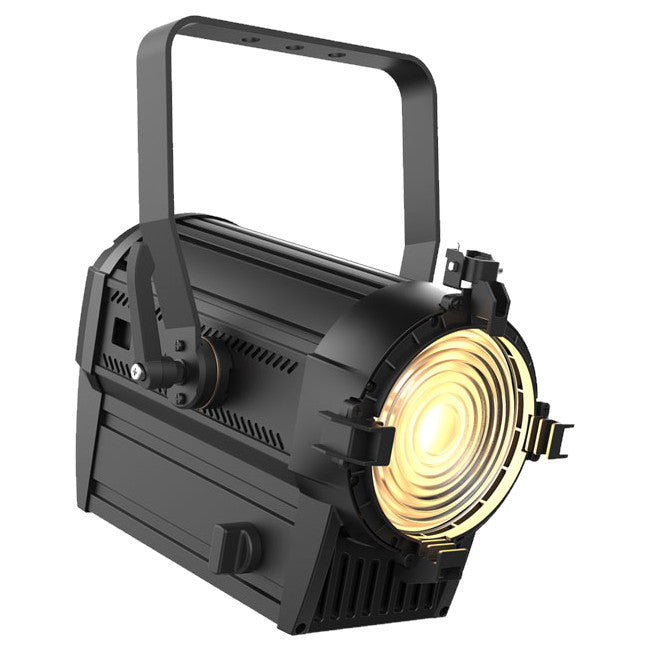

Chauvet Pro Ovation FD-105WW Warm White LED Fresnel

Chauvet Pro Ovation FD-105WW Warm White LED Fresnel

SoundPro Item: 34306 | Part Number: OVATIONFD105WW

$800.00
$900.00 $800.00
Your Price Sold out
MSRP: $900.00 | MAP: $800.00

Usually ships in 5-7 business days

  • 6“ warm white LED Fresnel with class leading output
  • Soft and even field of light
  • Works perfectly on conventional dimmers or constant power with DMX
  • Auto-senses power/data and responds appropriately
  • Superior low end dimming whether using dimmers or constant power
  • Perfect fixture for the retrofit market, utilizes existing dimming infrastructure flawlessly
  • 16-bit dimming resolution (DMX mode) for smooth fades
  • Flat, even field of light, with manual zoom (8-63 deg)
  • Virtually silent operation for use in any situation
Log in or register for YOUR best price

Ovation FD-105WW is a LED Fresnel wash utilizing data and power sensors that make it possible to run on both dimming power systems and constant power rigs. A massive zoom range of 8° to 63° and a beautifully soft, warm white wash with high CRI make it a worthy LED replacement for aging incandescent six-inch Fresnels. Enjoy the benefits of LED lighting without being held back by previous investments made in major dimming systems.

View full details
  • Optical
    • Light Source: 1 LEDs (WW) 80W, (2 A), 50,000 hours life expectancy
    • Color Temperature (at full): 3,197K
    • CRI: 91Beam Angle: 8° to 51°
    • Field Angle: 14° to 63°
    • Zoom Range: 8° to 63°
    • Illuminance (14°): 6,609 lux @ 5 m
    • Illuminance (63°): 340 lux @ 5 m
    • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
  • Dynamic Effects
    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Zoom: Manual
    • Strobe Rate: 0 to 25 Hz
    • Dim Modes: 5
    • Dim Curves: 4
  • Construction/Physical
    • Dimensions: 12.8x11x16.5" (325x279x420 mm)
    • Weight: 13 lbs (5.9 kg)
    • Exterior Color: Black
    • Accessory Holder/Gel Frame Size: 6.25 in/159 mm
  • Connections
    • Power Connection: Local plug to Neutrik® powerCON®
    • Power Input: Neutrik® powerCON®
    • Power Output: Neutrik® powerCON®
    • Data Connectors: 3- and 5-pin XLR
    • Cable Length (power): 5 ft (1.5 m)
  • Control
    • Control Protocol: DMX, RDM, Dimmer
    • DMX Channels: 1, 2 or 3
    • Modes/Personalities: 3 personalities (UNO, DOS, STD-P)
  • Electrical
    • Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
    • Power Linking: 14 units @ 120V; 25 units @ 230V
    • Power and Current: 115W, 0.951 A @ 120V, 60 Hz
    • Power and Current: 125W, 0.541 A @ 230V, 50 Hz
  • Certifications/QualificationsCE, METIP Rating: IP20, dry location
