Specifications

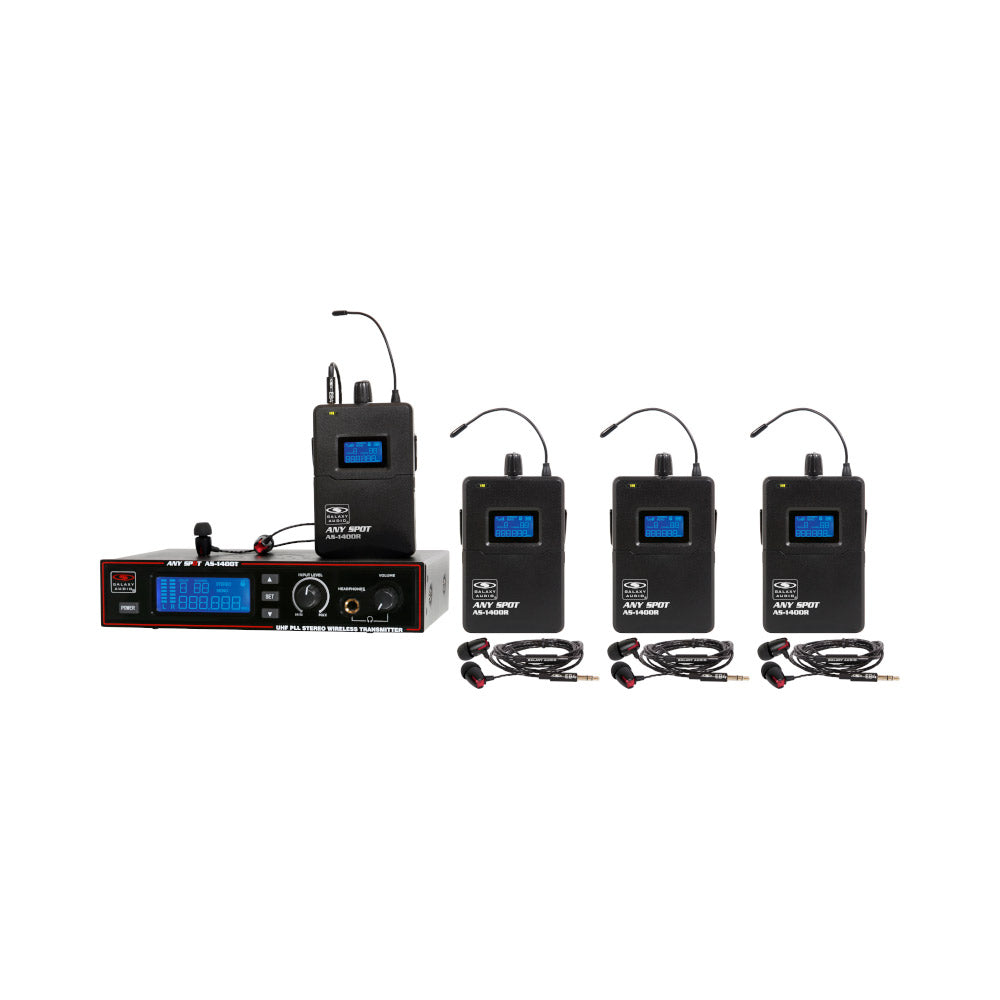

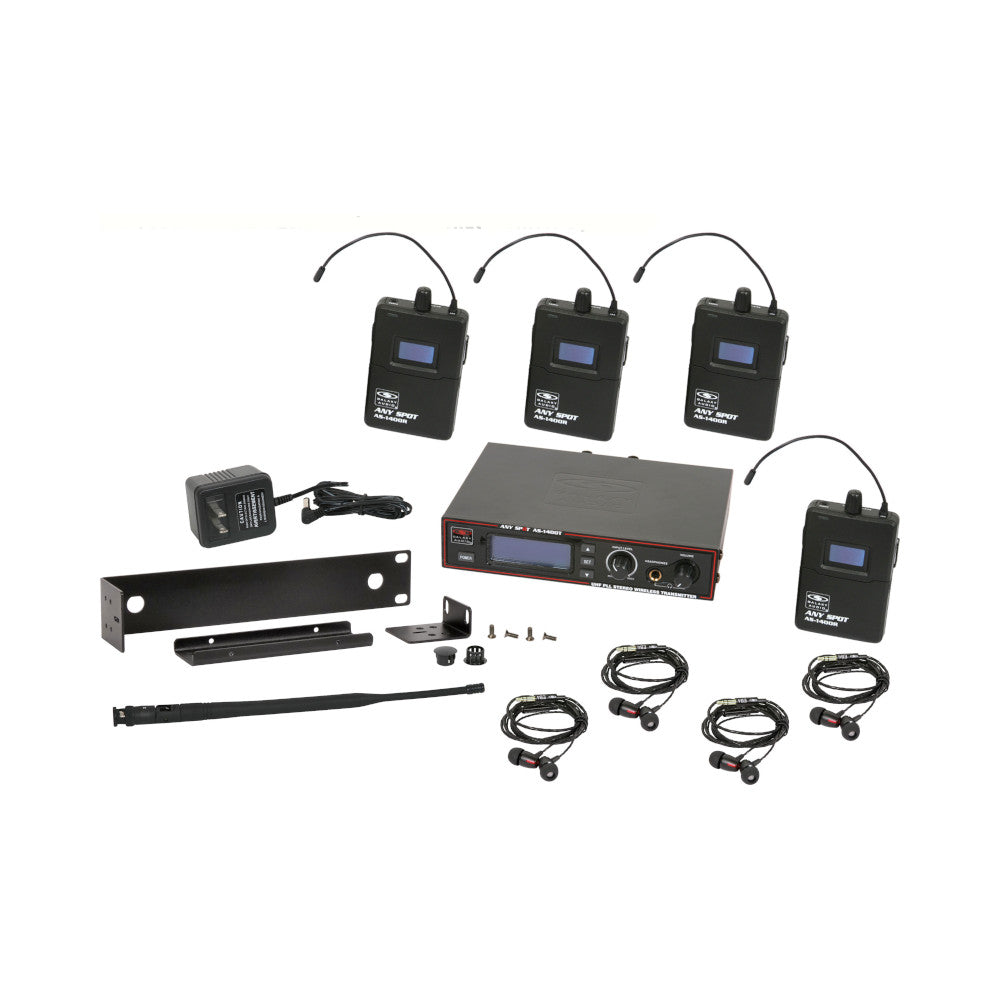

- AS-1400 System
- Band: UHF
- Frequency Range: CODE M 516 MHz - 558 MHz
- Frequencies: 275 Selectable Frequencies
- Transmitter Output Level: 30 mW
- Operating Range
- Under Typical Conditions 300' (92 m)
- Note: actual range depends on RF signal absorption, reflection, interference, and battery characteristics
- Audio Frequency Response: +/-3dB 40Hz - 16kHz
- Total Harmonic Distortion: < 0.4% @ 1kHz
- Signal to Noise: >105dB
- Maximum Deviation Range: +/-68kHz
- Dynamic Range: >90dB A-weighted
- Operating Temperature
- Range: 14º F to 122º F (-10º C to 50º C)
- Note: battery characteristics may limit this range
- Band Width: 42 MHz
- AS-1400 Transmitter
- Main Frame Size: EIA STANDARD 1/2 U
- Modulation Mode: FM Stereo Modulation
- RF Output: 30 mW
- Max Audio Input Level: +6dBV
- Gain Adjustment Range: 33dB
- Audio Input: Line Level X 2, XLR/ 1/4" Combo Jack
- XLR Input
- Balanced
- Pin 1: Ground (cable shield)
- Pin 2: Audio +
- Pin 3: Audio -
- Audio Output: 1/4" Headphone Out
- Dimensions (HxWxD): 1.7x8.2x7.1" (44x209x180 mm)
- Weight: 37.4 oz (1,060 g)
- Power Requirements: 12-18 V DC at 300 mA supplied by external power supply
- AS-1400 Receiver
- Audio Output Level: 100 mW
- Sensitivity: 6dBμV, S/N>60dB
- Stereo Separation: 45dB (at 1kHz)
- Output Connector: 1/8"(3.5 mm) Stereo Earphone Connector
- Dimensions (HxWxD): 4.33x2.56x0.87" (110x65x22 mm)
- Weight: 5.12 oz (145 g)(without batteries)
- Power Requirements: 2 AA alkaline or rechargeable batteries
- Battery Life: About 7 hours (alkaline)
