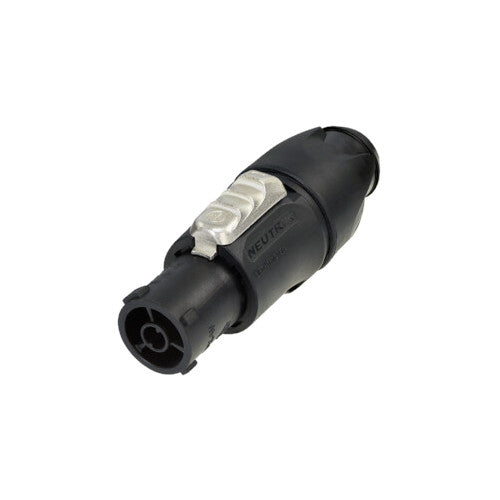

Neutrik NAC3FX-W-TOP powerCON TRUE1 Locking Female Connector
Neutrik NAC3FX-W-TOP powerCON TRUE1 Locking Female Connector
SoundPro Item: 93948 | Part Number: NAC3FX-W-TOP
Usually ships in 5-7 business days
- IEC EN 60320-1, UL 60320-1 and C22.2 No. 60320-1:19 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL817 and equipment acc. to IEC 62368-1
- Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm (0.23 – 0.47 inches)
- Heavy duty sealed power connector for harsh and demanding environment
- IP65 rating and approved for outdoor protection
- Uses high impact UV-resistant materials
- Extremely robust and reliable cable retention
- TOP True Outdoor Protection
- Lockable, single phase connector with Circuit Breaking Capability (16A resp. 20 A 250 VAC)
- Superior NEUTRIK quality standard
The Neutrik NAC3FX-W-TOP powerCON TRUE1 Locking Female Connector is a locking true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. Keyed for Power IN, screw terminals, IP65, up to 16 A (USA: 20A). The powerCON TRUE1 TOP is a single-phase connector for outdoor applications with breaking capacity (CBC) for outdoor applications.
- Product
- Title: NAC3FX-W-TOP
- Connector series: powerCON TRUE1TOP
- Electrical
- Contact resistance: ≤ 2 mΩ
- Dielectric strength: 4 kVdc / 2.8 kVac
- Insulation resistance: > 0,1 GΩ (after damp heat test IEC 68-2-30)
- Number of electrical contacts: 2 + PE
- Rating Europe: EN 60320-1: 16 A 250 V AC
- Rating USA: UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC
- Mechanical
- Cable O.D.: 6 - 12 mm (0.23 – 0.47 inches)
- Lifetime: > 5000 mating cycles
- Wiresize: 1.0 - 2.5 mm²
- Wiresize: 12 AWG
- Material
- Contact plating: 2 µm Ag
- Contacts: Bronze (CuSn0.2)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: ZuAl4Cu1
- Shell: Polyamide (PA 6.6 30 % GR)
- Strain relief: Polyacetal (POM)
- Environmental
- Flammability: UL 94 V-0
- Protection class: IP65, UL50E enclosure type 4 (mated)
- Temperature range: -30°C to +80°C
