• Shure SLXD124/85 Combo Wireless Microphone System
1 1

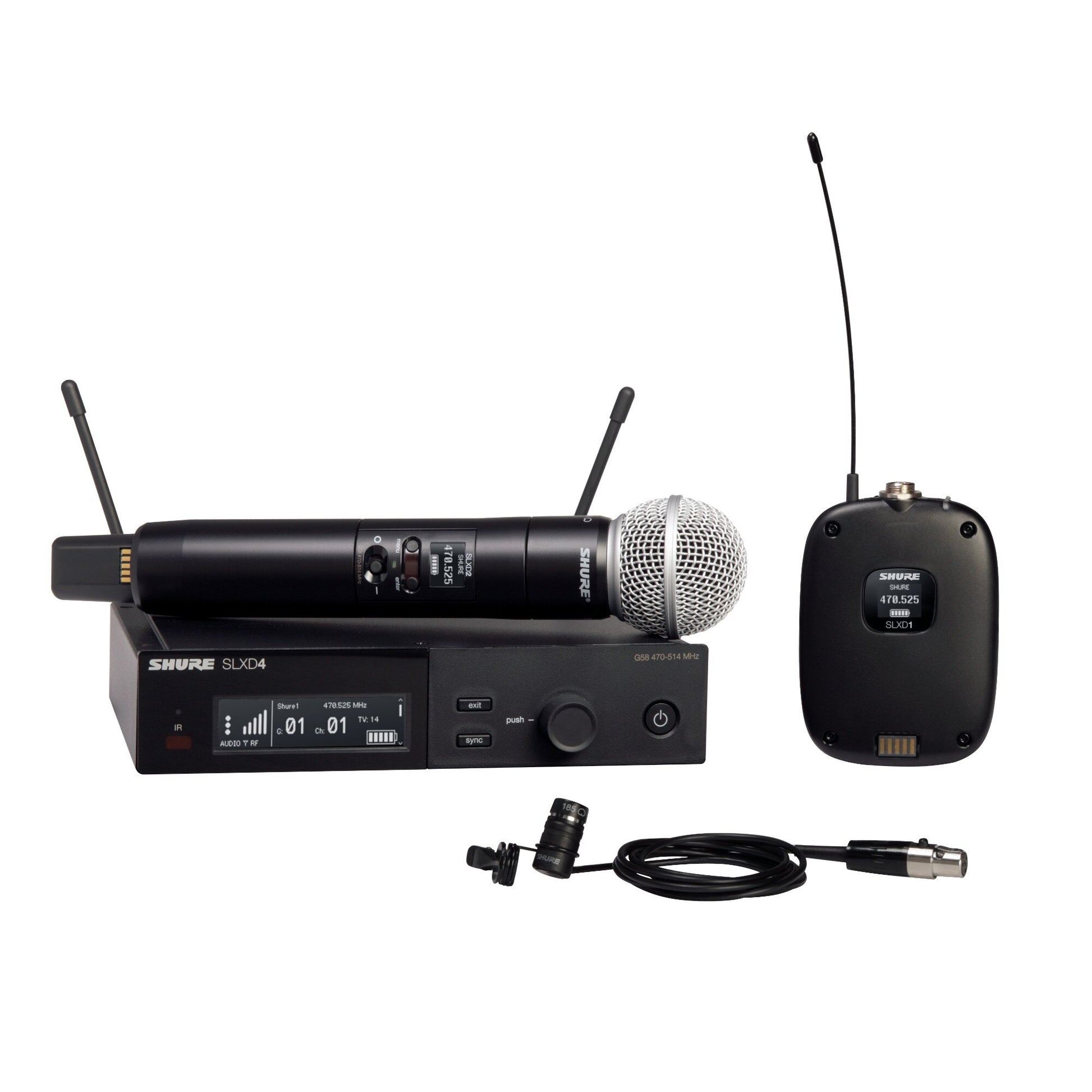

Shure SLXD124/85 Combo Wireless Microphone System | Frequency: J52 (558-602 MHz and 614-616 MHz)

Shure SLXD124/85 Combo Wireless Microphone System | Frequency: J52 (558-602 MHz and 614-616 MHz)

SoundPro Item: 46559 | Part Number: SLXD124/85-J52

$999.00
$1,299.00 $999.00
Your Price Sold out
MSRP: $1,299.00 | MAP: $999.00

Usually ships in 5-7 business days

  • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
  • 120 dB dynamic range
  • Digital predictive switching diversity
  • 44 MHz tuning bandwidth (region dependent)
  • 32 available channels per frequency band (region dependent)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
  • Easy pairing of transmitters and receivers over IR scan and sync
  • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
Log in or register for YOUR best price

With SLXD124/85 Combo Wireless Microphone System from Shure, you can perform with confidence using a wireless installation that's customized to meet your specific needs.

View full details
  • System
    • RF Carrier Frequency Range: 470–937.5 MHz, varies by region (See Frequency Range and Output Power table)
    • Working Range: 100 m ( 328 ft)
    • RF Tuning Step Size: 25 kHz, varies by region
    • Image Rejection: >70 dB, typical
    • RF Sensitivity: −97 dBm (at 10 BER)
  • Audio
    • Latency: 3.2 ms
    • Audio Frequency Response: 20 Hz– 20 kHz (+1, ­2 dB)
    • Audio Dynamic Range: 118 dB (at 1% THD, A-weighted, typical
    • Total Harmonic Distortion: <0.02%
    • System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (with respect to the ring of the 6.35 mm output) output.
    • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
  • Temperature Range
    • Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
    • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
  • SLXD1
    • Battery Type: Rechargeable Li-Ion or 1.5V AA batteries
    • Dimensions (HxWxD): 3.86x2.68x1" (98x68x25.5mm)
    • Weight: 89 g
    • Housing: PC/ABS
    • Audio Input
      • Connector: 4-Pin male mini connector (TA4M)
      • Impedance: 1 MΩ
      • Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
      • Preamplifier Equivalent Input Noise (EIN): ­118 dBV
    • RF Output
      • Antenna Type: 1/4 wave
      • Occupied Bandwidth: <200 kHz
      • Modulation Type: Shure proprietary digital
      • Power: 1 mW or 10 mW
  • SLXD2
    • Battery Type: Rechargeable Li-ion or 1.5V AA batteries
    • Dimensions: 37.1x176mm (1.46x6.93"), DxL
    • Weight: 147g
    • Housing: Aluminum
    • Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
    • RF Output
      • Antenna Type: Integrated Single Band Helical
      • Occupied Bandwidth: <200 kHz
      • Modulation Type: Shure proprietary digital
      • Power: 1 mW or 10 mW
  • SLXD4
    • Dimensions (HxWxD): 42x197x152mm (1.65x7.76x5.98")
    • Weight: 816 g, without antennas
    • Housing: Galvanized Steel
    • Power Requirements: 15V DC @ 600 mA, supplied by external power supply (tip positive)
    • RF Input
      • Spurious Rejection: >75 dB, typical
      • Connector Type: BNC
      • Impedance: 50 Ω
      • Phantom Power Protection
        • 1/4" (6.35 mm): Yes
        • XLR: Yes
    • Audio Output
      • Gain Adjustment Range: ­18 to +42 dB in 1 dB steps
      • Configuration
        • 1/4" (6.35 mm): Balanced (Tip = audio +, Ring = audio -, Sleeve = ground )
        • XLR: Balanced (1=ground, 2=audio +, 3=audio −)
      • Impedance
        • 1/4" (6.35 mm): 1.3 kΩ (670 ΩUnbalanced)
        • XLR (line): 400 Ω (200 ΩUnbalanced)
        • XLR (mic): 150 Ω
      • Full Scale Output
        • 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single)
        • XLR: LINE setting= +15 dBV, MIC setting= ­15 dBV
    • Mic/Line Switch: 30 dB pad
    • Networking
      • Network Interface: Single Port Ethernet 10/100 Mbps
      • Network Addressing Capability: DHCP or Manual IP address
      • Maximum Cable Length: 100 m (328 ft)
