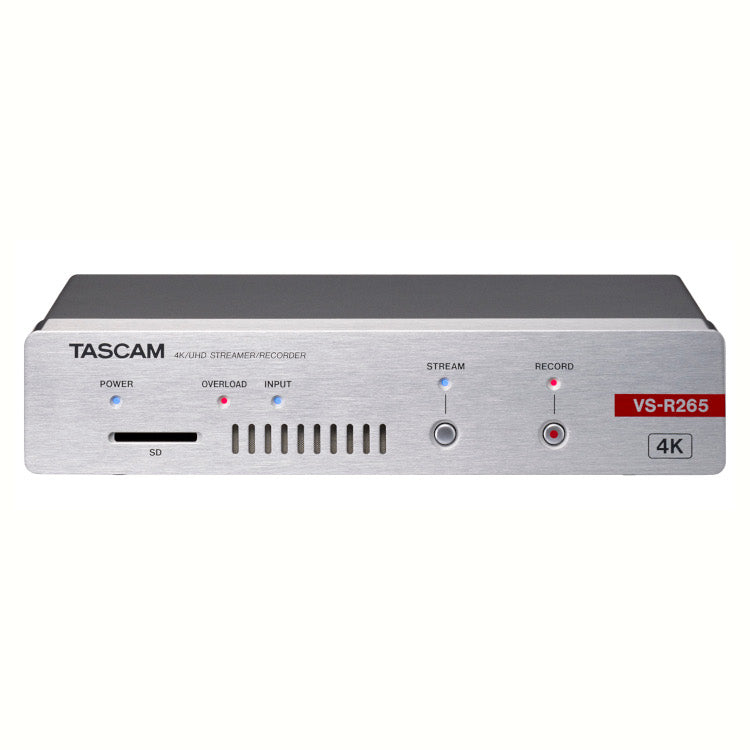

TASCAM VS-R265 4K/UHD Streamer/Recorder
TASCAM VS-R265 4K/UHD Streamer/Recorder
Soundpro Item: 51221 | Part Number: VSR-265
- Stand-alone encoder and decoder for 4K live streaming
- Simultaneously records, encodes, streams, and decodes 4K/UHD (3840x2160p) video streams
- Compliant with standard live streaming protocols
- Provides Full HD live video streaming (1920x1080) to Content Delivery Networks (CDNs) including YouTube, Wowza, Ustream, AWS Elemental MediaLive and CloudFront, etc.
- Uses High Efficiency Video Coding (HEVC), a high efficiency coding scheme that delivers H.264 video quality via 4K content at half the bit rate
- Unicast and multicast streaming support
- Multiple Simulcast and backup enabled by 3 RTMP streams simultaneously
- Can stream up to 8 streams simultaneously
- Output selectable from various streams
- Simultaneous recording and archiving via SD, USB and internal storage
- Create, archive, and backup files automatically via FTP
- Tascam Discovery app and web-GUI allow easy remote management of multiple VS-R unit systems
- No AC adaptor required
- Compatible with major streaming protocols such as RTMP, RTSP and HLS
- Ability to record directly to USB connected media or SD cards via a front panel loading slot
- Supports recording to internal storage (17GB)
- Ideal for 4K live streaming in corporate, educational, house of worship, government, industrial, security, and other installations
- USB memory has Tascam Discovery app
Couldn't load pickup availability
The VS-R265 is a 4K/UHD AV over IP streaming encoder and decoder that simultaneously records, encodes, streams, and decodes 4K video streams (3840x2160) using High Efficiency Video Coding (HEVC), a high efficiency coding scheme that delivers H.264 video quality at half the bit rate.
The VS-R265 4K live stream encoder addresses the growing demand for an external stand-alone encoder for 4K live streaming environments. The VS-R265 functions as a YouTube encoder and also provides live video streaming to popular Content Delivery Networks (CDNs) including Wowza, Ustream, AWS Elemental MediaLive and CloudFront, to name a few. The half-rack size VS-R265 functions as a stand-alone unit—no external computer is needed for recording or streaming.
Specifications
- Video Inputs and Outputs
- HDMI IN: HDMI v1.4a (Type A receptacle)
- HDMI Out: HDMI v2.0 (Type A receptacle)
- Input Resolutions
- 2160p: 30 / 29.97/ 25 / 24 / 23.98 fps
- 1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps
- 720p: 60 / 59.94 / 50 fps
- 576p: 50 fps
- 480p: 60 / 59.94 fps
- Frame Rate Limiting: on/off
- Encode Scaling Resolutions
- Passthrough
- 3840x2160p
- 1920x1080p
- 1280x720p
- 950x540p
- 720x576p
- 720x480p
- 640x360p
- 480x270p
- 320x180p
- Encoding Format: H.264 / H.265
- Encoding Bitrates: 500k to 30M bps
- Bit Rate Control: variable, constant
- Key Frame Interval
- Seconds: 0.25 - 16.5(default: 1) in 0.25 intervals
- Frames: 3 - 1000
- Video Streaming Supported Protocols
- RTMP Note) Some servers that use the RTMP protocol do not support H.265
- RTMPS
- RTSP
- HLS
- RTP
- UDP
- Number of Simultaneous Streams: 8 (3 x RTMP/RTMPS, 1 x RTSP, 1 x HLS, 2 x RTP/UDP Unicast,1 x RTP/UDP Multicast) * The streaming performance depends on resolution settings, transfer rate, and network environment
- Audio Inputs and Outputs
- Analog In (Balanced)
- Connectors: Euroblock (balanced) 3.81 mm pitch
- Nominal Input Level
- +4dBu(1.23Vrms, when Ref.Level set to other than -9dBFS)
- +6dBu(1.55Vrms, when Ref. Level set to -9 dBFS)
- Max. Input Level
- +15dBu(4.36Vrms, Ref.Level -9dBFS)
- +18dBu(6.16Vrms, Ref.Level -14dBFS)
- +20dBu(7.75Vrms, Ref.Level -16dBFS)
- Input Impedance: 10 k Ω or higher
- Analog In (Unbalanced)
- Connector: 3.5mm (1/8") stereo mini jack
- Nominal Input Level: -10dBV (0.316Vrms)
- Max. Input Level: +6dBV (2.0Vrms)
- Input Impedance: 10 kΩ
- Analog Out (Balanced)
- Connectors: Euroblock 3.81 mm pitch
- Nominal Output Level
- +4dBu(1.23Vrms, when Ref.Level set to other than -9dBFS)
- +6dBu(1.55Vrms, when Ref. Level set to -9 dBFS)
- Max. Output Level (switchable)
- +15dBu(4.36Vrms, Ref.Level -9dBFS)
- +18dBu(6.16Vrms, Ref.Level -14dBFS)
- +20dBu(7.75Vrms, Ref.Level -16dBFS)
- Output Impedance: 200 Ω or lower
- Analog Out (Unbalanced)
- Connector: 3.5mm (1/8") stereo mini jack
- Nominal Output Level: -10dBV (0.316Vrms)
- Max. Output Level: +6dBV (2.0Vrms)
- Output Impedance: 200 Ω
- Output Volume: -∞, -72 to +6dB (1dB step)
- Audio Codec: AAC, 64k to 512k bps, 32k/44.1k/48k Hz
- Video / Audio Recording
- Recording Media: USB Drive, SD/SDHC card, Internal storage
- Recording Format: MPEG2-TS,MPEG4
- Recording Bit Rates: 500K to 30M bps
- Control Input/Output
- Ethernet / PoE+
- Connector: RJ-45
- Transmission Protocol: TCP/IP,UDP,HTTP
- Gigabit Ethernet Standard: 1000BASE-T (IEEE 802.3ab)
- Cables: Category 5e or faster STP cables
- USB
- Connector: USB A-type 4-pin
- Protocol: USB 2.0, USB 3.0
- PowerPoE Plus Class 4; recommended Tascam PS-P1220E AC adapter (sold separately)
- Power Consumption12.2W
- Operating Temperature Range32°F to 104°F (0°C to 40°C)
- Dimensions (WxHxD)8.43" x 1.75" x 5.36"
- Weight1.87 pounds
