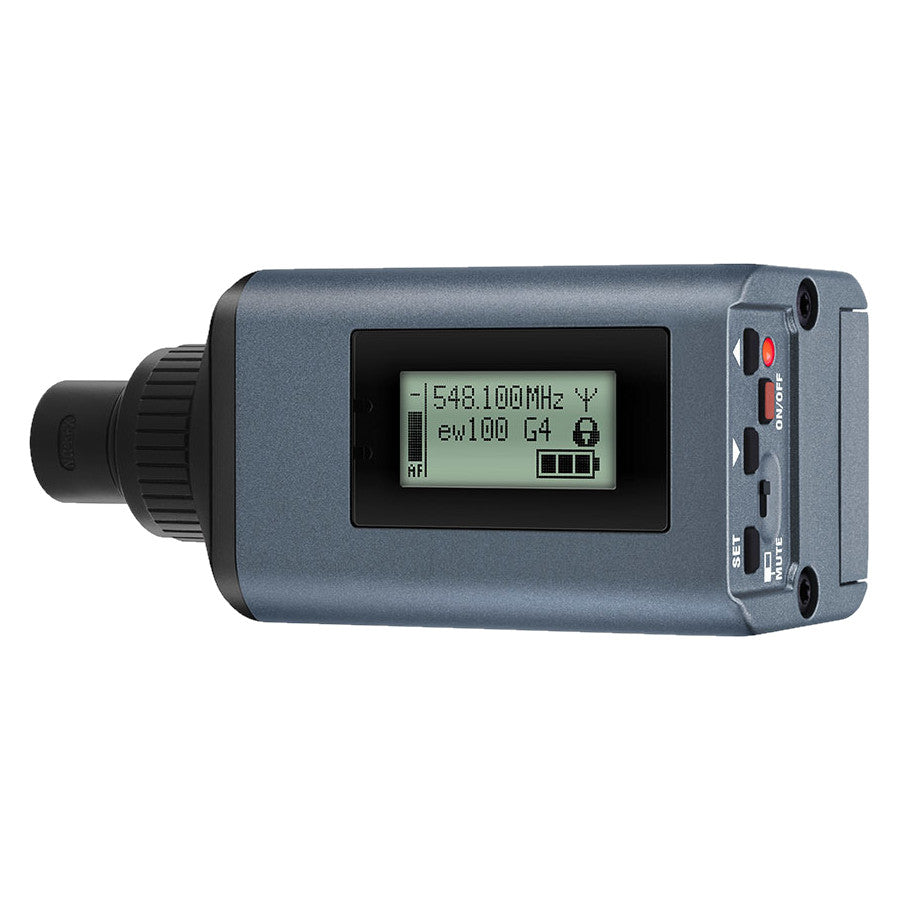

Powerful plug-on transmitter that turns every wired dynamic microphone into a wireless transmitter for evolution wireless G4 100P Series systems. For documentary, Mobile Journalism and audio for video applications.
Sennheiser SKP 100 G4 Features
- Powerful plug-on transmitter, easily mounted on any kind of microphone
- Excellent sound and construction quality
- Easy to use and fast setup time
- Powerful and reliable wireless transmission
- Range: up to 100m/330ft
- Up to 8 hours of operation time
- SKP 100 G4 Plug-On Transmitter for Dynamic Microphones1
- AA batteries2
- Quick guide1
- Safety guide1
- Manufacturer declaration sheet1
- Frequency range
- A: 516 - 558 MHz
- A1: 470 - 516 MHz
- AS: 520 - 558 MHz
- B: 626 - 668 MHz
- C: 734 - 776 MHz
- C-TH: 748.3 MHz - 757.7 MHz
- D: 780 - 822 MHz
- E: 823 - 865 MHz
- G: 566 - 608 MHz
- GB: 606 - 648 MHz
- JB: 806 - 810 MHz
- K+: 925 - 937,5 MHz
- 748.3 MHz - 757.7 MHz
- DimensionsApprox. 105x43x43mm
- CompanderSennheiser HDX
- THD, total harmonic distortion≤ 0.9 %
- Weightapprox. 195 g
- Signal-to-noise ratio≥ 110 dBA
- RF output powerMax. 30 mW
- Switching bandwidthup to 42 MHz
- Peak deviation±48 kHz
- Nominal deviation±24 kHz
- Operating timeTypically 8 h
- ModulationWideband FM
- Power supply2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption (at nominal voltage: typ. 180 mA) with transmitter switched off: ≤ 25 μA
- Input impedance68 kΩ, unbalanced
- Max. Input voltage3.3 Veff
- Powering3 V battery / 2.4 V rechargeable battery
- Transmission frequencyMax. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- AF frequency response80 – 18,000 Hz
- Temperature Range-10 °C to +55 °C
- Frequency stability≤ ±15 ppm
More about Sennheiser’s evolution wireless G4 500 Series
Choose a wireless system that grows and changes with your needs. Sennheiser’s evolution wireless (EW) Series delivers simplicity, flexibility, and dependability to your performance. Engineered for professional audio, the EW G4 500 has something for any project or venue.
Select from state-of-the-art components designed with live sound in mind. From musicians to filmmakers, sound engineers to public speakers, this series delivers intuitive control without compromising on quality. Enjoy consistent performance from a true diversity, half-rack receiver in a full-metal housing with an intuitive OLED display.
Feature-packed and highly flexible, this wireless series provides the tools you need optimize your performance, including increased switching bandwidth of up to 88 MHz, 3520 selectable frequencies (fully tunable in a stable UHF range), up to 32 compatible channels, and increased RF output power (up to 50 mW, adjustable in three steps 10/30/50). The wireless synchronization between transmitter and receivers is streamlined via infrared. Additionally, access Sennheiser’s WSM Software via Ethernet connection for advanced frequency coordination in multi-channel setups. EW G4 300 wireless components enjoy up to 330 feet (100 meters) of transmission range for increased freedom and versatility and boast a battery life of up to 8 hours.
