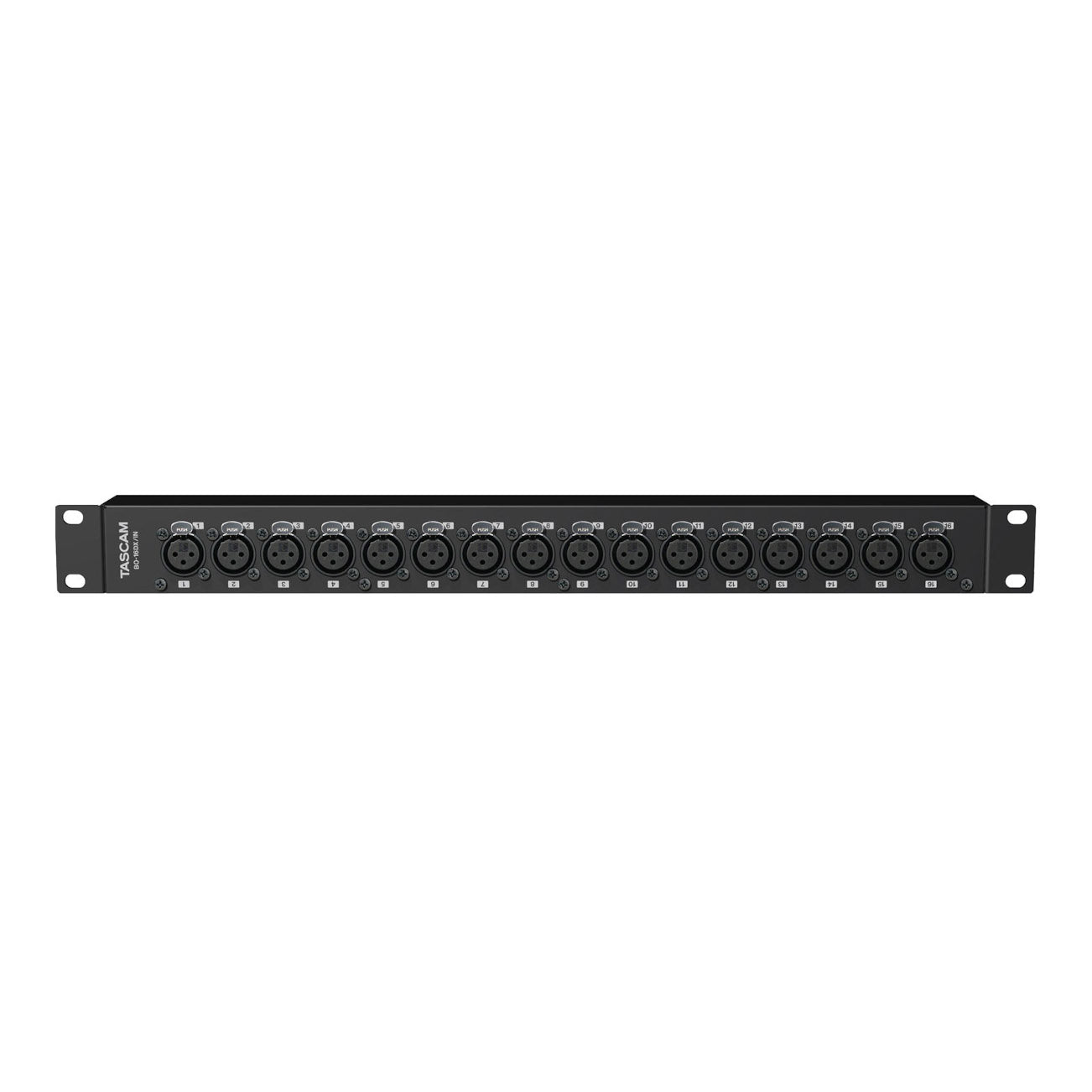

The TASCAM BO-16DX/IN is a rugged, rackmounted audio adaptor designed for professional installation and live sound applications. 16 front-panel XLR Inputs are internally bridged to dual D-Sub output connectors on the rear panel, providing a fast and easy way to interface between stage boxes, FOH and monitor mixing consoles, audio over IP convertors and more.
TASCAM BO-16DX/IN Features
- The ideal I/O solution for the TASCAM ML-16D and ML-32D
- Flexible mounting options
- 16 XLR input connectors on the front panel
- Dual D-Sub output connectors compliant with AES59-2012 on the rear panel
- Multiple rackmounting options
- Short unit depth allows free layout in the rack
- 1U Rackmount size
- BO-16DX/IN 16 Channel D-Sub XLRF Breakout Box1
- Rackmount screw set1
- Owner's Manual including warranty1
- Front
- Connectors: XLR 3-31 × 16 (1: GND, 2: HOT, 3: COLD)
- Rear
- Connectors: D-sub 25pin female × 2
- Attachment screws: No.4-40 UNC × 4 (inch-type)
- Dimensions (WxHxD)19×1.7×2.1" (482.6×44.1×54.5 mm)
- Weight1.99 lbs (0.9 kg)
