Experience freedom and flexibility to explore all your guitar's sound possibilities with Zoom's G3n Multi-Effects processor.
The G3n is a versatile multi-effects processor that lets you defy genre with the most realistic stompbox, cabinet, and amplifier emulations Zoom has ever created. Its high-quality sound, portable design, 80 second Looper, and intuitive interface make it the perfect addition to your pedalboard. To put it simply, the G3n offers all the sounds and tools you need to improve your tone and sound greater than ever.
The G3n is pre-loaded with 70 expertly crafted and assembled DSP effects (68 effects, 1 looper pedal, and 1 rhythm pedal), plus 10 of the most realistic amp/cabinet emulators we've ever created. We've loaded the G3n with essential guitar sounds like overdrive, distortion, compression, EQ, delay, reverb, flanging, phasing, vibrato, and chorusing. Unique multi-effects such as Seq Filter, Reverse Delay, HD Hall, and OSC Echo are also included.
Zoom G3n Features
- 70 (68 effects, 1 looper pedal, and 1 rhythm pedal) onboard high-quality digital effects, including distortion, overdrive, EQ, compression, delay, reverb, flanging, phasing, and chorusing
- 5 new amp emulators plus 5 cabinet emulators
- 75 custom-designed factory patches
- Free ZOOM Guitar Lab Mac/Windows software allows downloading of additional effects and patches
- Use up to 7 effects simultaneously, chained together in any order
- 3 stompbox switches allow effects to instantly be brought in and out
- Intuitive user interface
- 3 independent editing displays
- Auto Save function for automatic saving of all patch parameters
- Onboard chromatic tuner with dedicated footswitch supports all standard guitar tunings, including open and drop tunings
- Tuner range of 435 - 445 Hz
- Stereo/mono Looper allows recording of up to 80 seconds of phrase recording
- 68 built-in rhythm patterns that can be used in conjunction with the Looper
- Tap Tempo with dedicated footswitch
- Input jack accepts standard guitar cable
- Auxiliary stereo input jack for connection of smartphones and music players
- Dual output jacks for connection to guitar amps and mono or stereo PA systems
- Dedicated stereo headphone output
- Control input for external expression pedal
- G3n Multi-Effect Processor1
- AC adapter1
- Effect Types80 (70 DSP effects, 5 amp emulators, 5 cabinet emulators)
- Number of Simultaneous Effects7
- Number of User Banks/Patches150
- Sampling Frequency44.1 kHz
- A/D Conversion24-bit with 128x oversampling
- D/A Conversion24-bit with 128x oversampling
- Signal Processing32-bit
- Frequency Characteristics20 – 20 kHz +1 dB, -3 dB (10 kΩ load)
- Display128 x 32 dot-matrix LCD (x3)

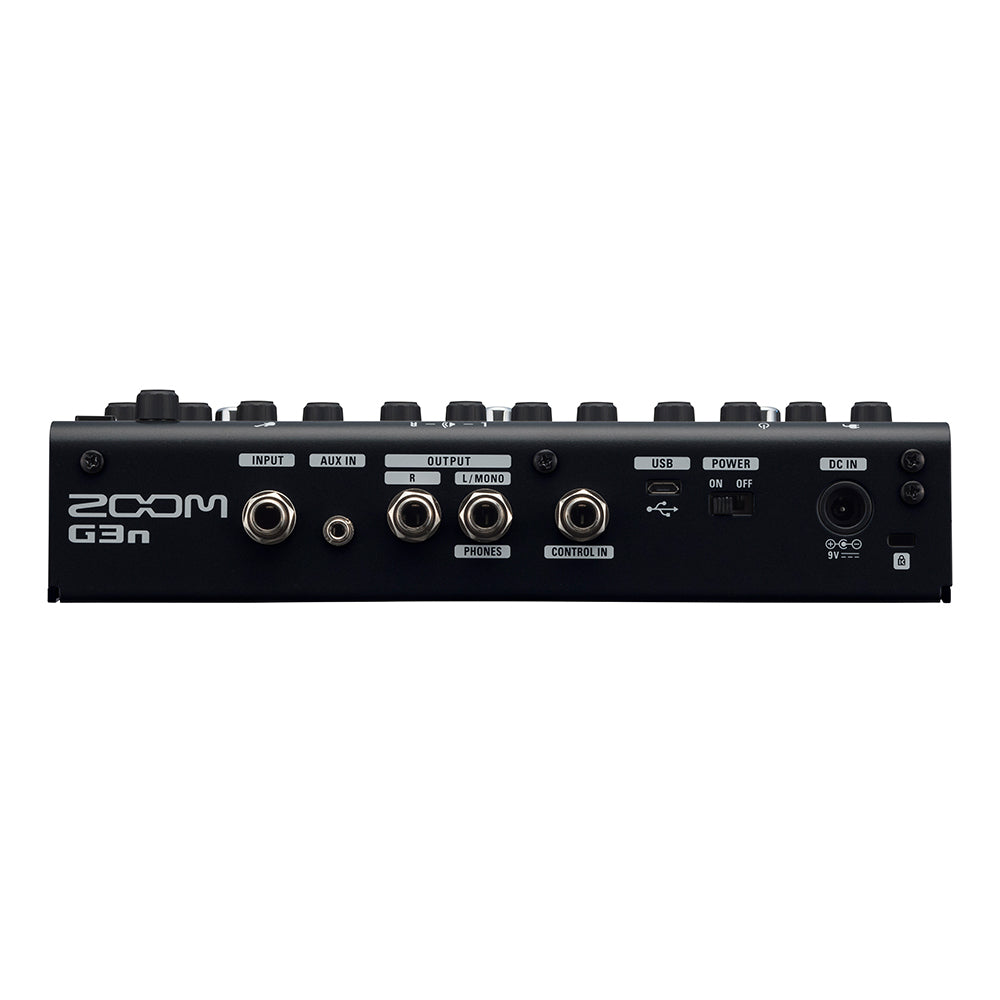

- Inputs
- INPUT: Standard monaural phone jack Rated input level: -20 dBu Input impedance (line): 470 kΩ
- AUX IN: Stereo mini jack (3.5 mm) Rated input level: -10 dBu Input impedance (line) : 10 kΩ
- Outputs
- OUTPUT R: Standard monaural phone jack
- OUTPUT R, MAXIMUM OUTPUT LEVEL: Line +5 dBm (with output load impedance of 10 kΩ or more)
- L/MONO/PHONE: Standard stereo phone jack (combined line/headphone)
- L/MONO/PHONE, MAXIMUM OUTPUT LEVEL: Line +5 dBm (with output load impedance of 10 kΩ or more) Headphones 15 mW + 15 mW (into 32 Ω load)
- Equivalent Input Noise-119 dBu
- Noise Floor (Residual Noise)-100 dBu
- PowerAC adapter DC9V (center minus plug), 500 mA (ZOOM AD-16)
- USBUSB MIDI, USB Micro-B
- Dimensions (DxWxH)7.13x12.52x2.52" (181x318x64 mm)
- Weight4 lbs (1.84 kg), * 0 dBu=0.775 Vrms
