Zoom’s G6 takes tones from many popular amps and combines them with new amp models, providing you the best of classic and new to create a tone palette uniquely yours. Impulse responses are incredibly varied with 70 pre-loaded IRs and space to add over 100 more. Distortion and Modulation effects bring a new option to tweak classic tones.
With room for 240 patches and 100 presets to build patches easily cycled through during a setlist, the G6 makes planning ahead easy. Each patch has room for up to 7 effects, making tons of possibilities. Additionally, 68 rhythm patterns in different genres and time signatures are built in to give you options to express the groove you’re feeling.
Use the G6’s four Play Modes to change the touchscreen and footswitch layout for quicker access to controls you need. Looper Mode builds layers to your sound with loops up to 2 hours on an SD/SDXC card (45-second loop max without SD card). Memory Mode helps organize patches, repurposing one of the footswitches to activate one of the 4 patches in each bank. Scroll through your banks and patches with the matching footswitch in Bank/Patch Mode. Access a visual representation of your pedal chain with Effect Board Mode.

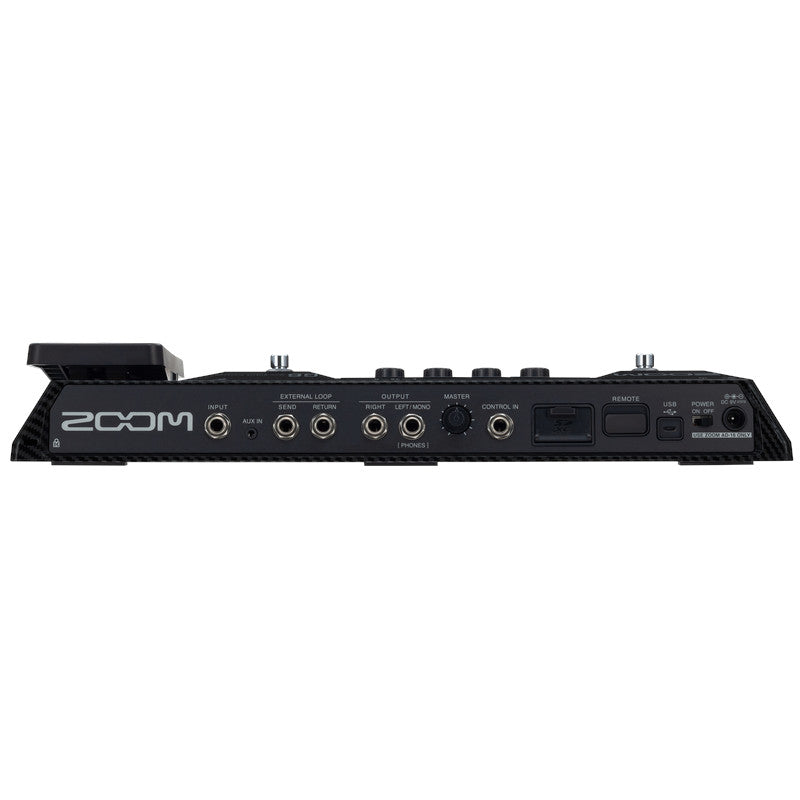

Connections include a mono input, stereo outputs, mono FX loop, aux in, control in, and headphones out. You can also repurpose the G6 as a 2in/2out audio interface for Mac or PC with the USB port.
Tiny yet packed with possibilities, the G6 is a great travel companion. The G6’s 4.3” color touchscreen is a great size for mobile use, and menu controls and layout are user-friendly.
Pair with Guitar Lab software (via USB connection) to access even more amps, effects, and artist patches. The G6 can also be connected directly to Handy Guitar Lab app via Bluetooth and controlled wirelessly with the BTA-1 adaptor (sold separately).
Zoom G6 Features
- 4.3" color touchscreen
- Loaded with amps
- Ultimate collection of Zoom guitar effects and tones
- Distortion and Modulation effects
- 240 patches with 100 presets for building patches
- Looper, memory, bank/patch, and effect board play modes
- Guitar Lab software to browse and upload/download an endless assortment of amps, effects and artists patches
- Guitar Lab app
- G6 multi-effects processor1
- AD-16 AC adapter1
- Max number of simultaneous effects9 effects, or 7 effects + Amp
- User patches240
- Sampling frequency44.1kHz
- A/D conversion24-bit 128x oversampling
- D/A conversion24-bit 128x oversampling
- Signal processing32-bit
- Frequency characteristics20 Hz - 20kHz (+0.5 db/-0.5 dB) (10Ωk load)
- Display4.3" TFT color LCD (480x272)
- Inputs
- Input: standard mono phone jack
- Rated input level: -20dBu
- Line input impedance: 500Ωk
- Return: standard mono phone jack
- Rated input level: -20dBu
- Line input impedance: 1ΩM
- Aux in: stereo mini jack
- Rated input level: -10dBu
- Line input impedance: 10Ωk
- Outputs
- Output R: standard mono phone jack
- Max output level: +11.4 dBu (when output impedance 10 Ωk or higher)
- Output L/mono (phones): standard stereo phone jack
- Max output level: +11.4 dBu (when output impedance 10 Ωk or higher)
- Headphones: 24mW + 24mW (at 32 load)
- Send: standard stereo phone jack
- Max output level: +11.4 dBu (when output impedance 10 Ωk or higher)
- Noise floor (residual noise)
- L/R: -99.3 dBu
- Send: -99dBu
- Control input: FP02M input
- Power: AC adapter
- USB port: USB 2.0 Micro-B, supported cable type Micro-B
- SD card
- Standards: cards that support SD/SDXC/SDHC specifications (class 10 or higher)
- Looper: 44.1 kHz/ 16-bit stereo WAV
- IR: 44.1 - 192kHz, 16/24/32-bit WAV
- RemoteZOOM BTA-1 or other dedicated wireless adapter
- Dimensions (DxWxH)8.98" x 16.46" x 2.56"
- Weight4.28 pounds (1.94 kg)
