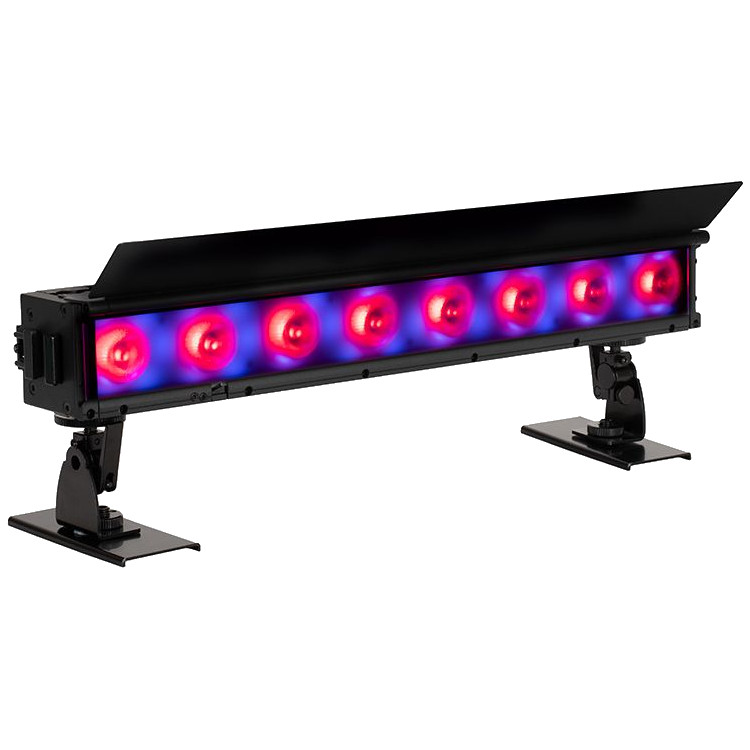

ADJ ElectraPix Bar 8 RGBAL+UV LED Linear Wash Light

The ADJ Lighting ElectraPix Bar 8 is a cutting-edge, .5-Meter battery powered, wireless DMX lighting solution. Packed with advanced features, this fixture boasts eight 20-Watt Hex Color LED (RGBAL+UV), providing unparalleled control and creativity. Powered by either batteries or wall outlets, it offers up to 20 hours of battery operation.

With individual pixel control, built-in foreground and background LED programs, and a variable white color temperature range, the ElectraPix Bar 8 ensures dynamic lighting possibilities. Its color-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.

Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. Additional, up to four ElectraPix Bar 8 fixtures may be mounted vertically to the VFB1 floor base (sold separately). The fixture's control options include DMX512, Aria X2 Wireless DMX, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.

The ElectraPix Bar 8 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Bar 8, where innovation meets performance.

ADJ ElectraPix Bar 8 Features

• 8 Pixel, Hex Color LED (RGBAL+UV) LED Bar
• Battery or Wall Powered
• Up to 20 Hour Battery Operation
• Battery Operation (Menu Option)
• Individual Pixel Control
• Built-In Foreground LED Programs
• Built-In Background LED Programs
• Variable White Color Temperature Control (2,700K ~ 9,900K)
• English & Spanish User Menu
• Built-In Alarm
• Color Calibrated LEDs
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (0.3Hz ~ 11Hz)
• Electronic Dimming
• Attach up to four (4) ElectraPix Bar 8 to the Accu Stand VFB1 vertical floor base

• ADJ ElectraPix Bar 8 RGBAL+UV LED Linear Wash Light1
• Outdoor Locking Power Cable 1
• UCIR24 Remote1
• 20° Diffusion Filter1

• Source
  • (8) 20W Hex Color RGBAL+UV Foreground LED's
  • (32) 0.2W RGB Background LED's
  • 50,000 Hour Average Life*
  • *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
• Optical
  • 2,300K ~ 9,900K White Color Temperature Range
  • 17° Beam Angle
  • 45mm Lens Diameter x8
• Physical
  • IP65 Housing
  • OLED Digital display
  • L Track system for locking accessories / rigging
  • Glare Shield
  • Diffusion Filter slot
  • Angle adjustable feet
  • Horizontal slide lock to attach additional ElectraPix Bar 8 or ElectraPix Bar 16
• Control
  • DMX512
  • Aria X2 Wireless Management / DMX System
  • Bluetooth
  • RDM and RDM Net Compatible
  • IR (Includes UCIR24 wireless remote)
  • (9) DMX Channel Modes (5, 6, 9, 13, 22, 24, 48, 52 & 66 Channel modes)
  • On-board Manual Control Mode
  • Primary / Secondary Mode
  Connections
  • 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
  • Outdoor Locking Power Sockets
  • Battery Charging Socket
• Dimensions & Weight
  • Length: 3.37” (85.7mm) Width: 23.24” (590.3mm) Height: 9.79” (248.6mm)
  • Weight: 14 lbs. (6.4 kg)
• Power
  • AC100-240V/50Hz-60Hz Input
  • 60W Power Consumption
  • Link 15 pieces @120VAC or 28 pieces @ 230VAC
• Battery
  • Rechargeable Lithium ion
  • Battery Capacity: 7,000mAh
  • Battery Voltage: 22.2V
  • Charge Time: 6 Hours (To Full)
  • Up to 20 Hour Battery Operation
  • Battery Cycles: 500
• Thermal
  • Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
  • Storage Temperature: -22°F to 113°F (-30°C to 45°C)
• Certifications & IP Rating
  • CE
  • cETLus (Pending)
  • FCC
  • IP65
• Optional Accessories
  • Accu Stand VFB1 (Floor Base)
  • LTrack A2 (LTrack Adapter Only)
  • LTrack CA2 (LTrack Adapter with Narrow Clamp)
  • EPIX B816 IPCB: replacement charging base and power supply
