The Encore Burst 200 is ideal for use in both fixed installations and touring productions. Potent C.O.B LEDs and an innovative ‘dim to warm’ feature emulates halogen lamps but also offers cooler operation and lower power requirement benefits of LEDs. Use a single unit for medium-sized venues, or join several together for larger venues, outdoor concerts and festivals, and more!
Powered by two 110W warm white (2700K) CREE COB LEDs with a 2700K color temperature and an average lamp life of 50,000 hours, the Encore Burst 200 also offers a “dim-to-warm” and Tungsten Mode effect that replicates a classic halogen-like dimming profile. An additional low-intensity LED element built-in delivers a 1200K color temperature, while 1.2 Hz flicker-free operation provides a smooth visual.
The fixture is constructed with aluminum extrusion rails system to connect multiple fixtures to create larger arrangements in a vertical or horizontal array. Professional-locking True1 powerCON I/O sockets allow the power supply for multiple units to be daisy-chained together (up to four fixtures at 120V or eight fixtures at 230V). The unit is fitted with 5-pin XLR I/O sockets for DMX control, offering a choice of four different modes (1, 2, 4, and 6-channel).
The fixture is fitted with a 4-digit LED display and corresponding push buttons that allow mode selection and DMX addressing. Choose from five dimming curves and independent 0 – 100% dimming for each lamp and variable speed strobing effects. Each of the two lens assemblies offers manual tilt adjustment of the individual lens, allowing for a wider coverage area.
ADJ Encore Burst 200 Features
- Modular design to connect multiple fixtures together in a vertical or horizontal tray from a built-in rail system on the fixtures
- DMX Modes: 6
- Dimming Curve Modes: 6
- Dimming: 0 - 100% each module
- Pixel Control
- Strobe Effect
- Adjustable LED Refresh Rate (900-25,000Hz)
- Adjustable Gamma Brightness (2.0-2.8)
- With Wired Digital Communication Network
- Encore Burst 200 Strobe Light1
- Light Source
- 2x 110W Warm White CREE COB (Chip On Board) LEDs
- 2,700K Color Temperature (1,200K Tungsten Mode)
- 50-degree Beam Angle
- CRI: 81
- 12249 LUX @ 1M; 490 LUX @ 5M
- 50,000 Hour Average LED Life
- Connections
- Data Input: 5pin DMX In/Out
- Power Input: Locking Power Cable In/Out (with protective rubber caps)
- Safety Cable Loop
- ControlRDM (Remote Device Management)
- Electrical
- 100-240V 50Hz/60Hz (Auto Sensing)
- Power Linking: 4 Fixtures @120V | 8 Fixtures @240V
- Max Power Consumption: 235W
- IPX4 RatedX (Protection against Dust) Fixture is not tested for dust ingress. 4 (Protection against Water) Fixture offers protection from a splash of water in any direction
- Dimensions/Weight
- Length: 7.9” (200.5mm)
- Width: 15.7” (400mm)
- Height: 8.5” (215.5mm)
- Weight: 15 lbs. (6.8kg)
- Approvals / RatingsCE Certified
More about ADJ’s Encore Burst Series
As with all members of ADJ’s Encore Series, the Burst LED wash fixtures boast efficient optics, robust build, and versatile feature sets. Lightweight and compact, Encore Burst fixtures are easy to store, transport, and install. For how little space or effort they take to install, they generate extremely powerful output suitable for large scale productions and installations such as theme parks, churches, and concert tours, as well as small-to-large indoor and outdoor temporary events.
Boasting a distinctive and durable die-cast metal housing that makes them ideal lighting choices for touring and temporary event use, the Burst models are also IP65 “weatherproof” rated (meaning it’s sealed against liquid, snow, dust, and sand), making them well-suited for temporary outdoor use or other environments where they may be exposed to liquid spillage or excessive dust or dirt. Their protection against dust and particulates also makes them ideal for indoor use since it extends the lifespan of the fixture with less required maintenance.

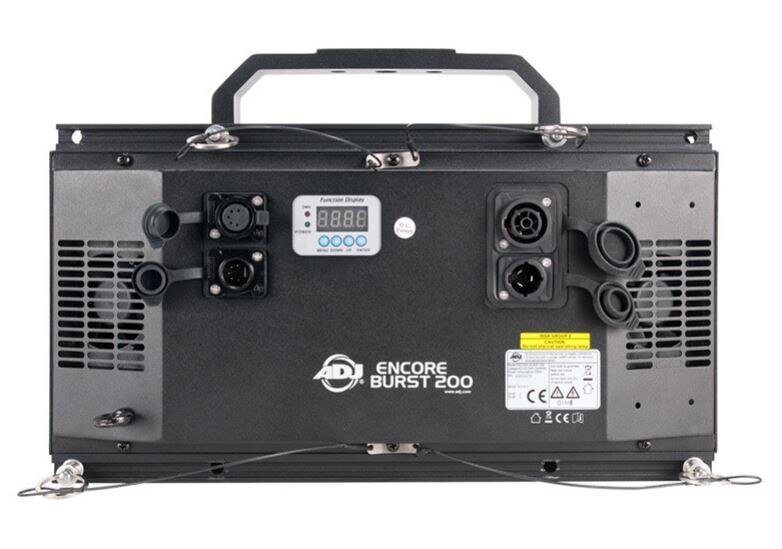

On the back of each fixture are IP65-rated Seetronic 5-pin DMX input and output sockets and Seetronic locking power input and output connections. Each I/O is protected by rubber caps that insert into the sockets when not in use. Multiple DMX channel modes are available, while each model is fitted with an OLED screen to streamline mode selection and addressing. RDM-compliance enables the fixtures to be remote-controlled from a compatible system.
Each model includes a flexible multi-purpose bracket that can be used to position the fixture on the floor. An Omega bracket attachment is also included, allowing you to hang the fixture from a truss or lighting rail. Lock either configuration securely in place using the large plastic thumb-tightening screws located on both sides of the unit.
