ADJ Stage Pak 1
ADJ Stage Pak 1
$399.99

ADJ Stage Pak 1

SoundPro Item: 27228
MPN: STAGE PAK 1
  • Videos

  • ADJ Stage Pak 1
MSRP: $549.95
$399.99

Add to Wish List

Account manager
Contact an Account Manager for your personalized price

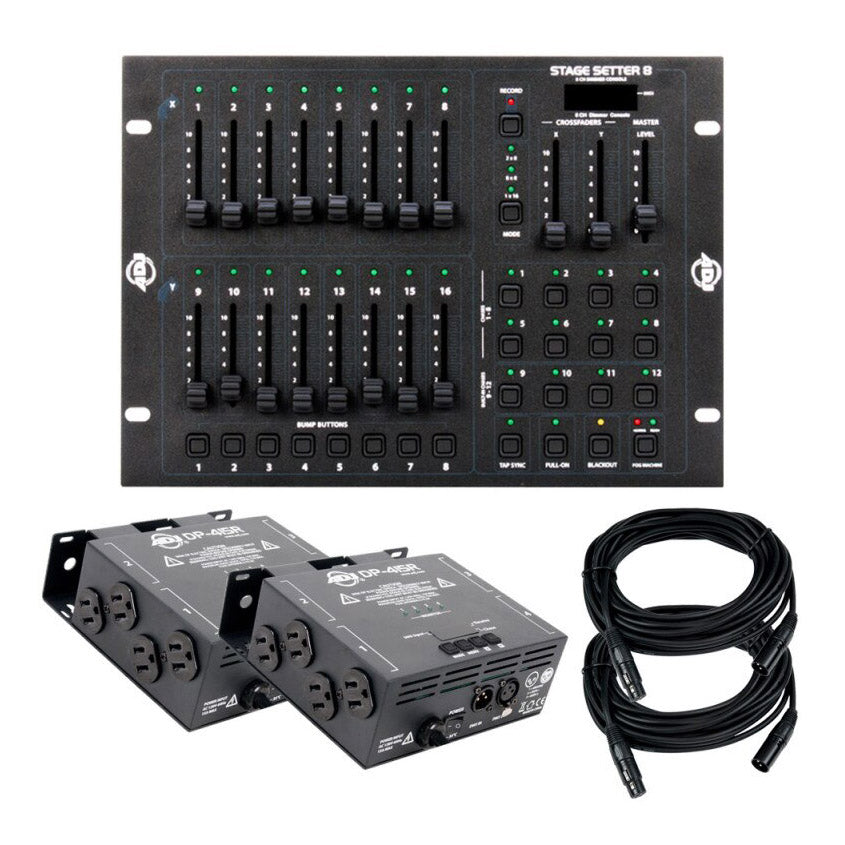

Complete your par can setup tying it all together with the Stage Pak 1 from ADJ. This package includes a quality constructed Stage Setter 8 DMX controller that offers you the ability to fully control the dimming and on/off of your par can setup via the two DP-415R dimmer switches/packs that are also included. The controller operates in 3 separate modes and offers a range of customization and built-in programs. The Dimmer Switches are 4-channel compact units offering the ability to plug in eight separate light fixtures each, for a total of 16 using both DP-415Rs. The Stage Setter 8 and two DP-415Rs are essential components to any par can lighting production. Functioning on standard DMX-512 protocol as well as MIDI compatible and including fog machine output control, the Stage Pak 1 can be tied into your entire production system with ease. These portable devices are perfect for any size stage production, permanent or mobile.

For the effective control of par cans via dimmer packs the Stage Pak 1 from ADJ offers versatility of operation through the inclusion of a controller with 3 different operating modes, four build-in programs, and eight user programmable programs. It operates using standard DMX-512 protocol, is MIDI compatible, and includes a fog machine output control. The pack includes two DP-415 dimmer switches and XLR cables as well so you'll have everything you need.

ADJ Stage Pak 1 Features

  • Pack offers versatility of operation
  • Includes Dp-415R Dimmer Packs, Stage Setter 8 DMX controller, and DMX cables
  • Perfect for any size stage production, permanent or mobile
  • Stage Setter 81
  • Dp-415R Dimmer Packs2
  • DMX Cables2
  • STAGE SETTER 8
    • Three different operating modes; 2 x 8 (two banks of 8 channels), 8 x 8 (eight channels), 1 x 16 (one bank - 16 channels)
    • 8 or 16 channel DMX operation
    • Four built-in programs
    • Eight user programmable programs
    • Fog machine output control
    • Standard DMX-512 protocol
    • MIDI compatible
  • DP 415R
    • Compact 4-Channel DMX Dimmer/Switch Pack
    • 2x 3-prong Edison plugs per channel (8 total plugs)
    • On/Off power switch
    • 3-pin DMX In/Out
    • Digital Display with 4 Menu Control Buttons
    • Supports RDM (Remote Device Management)
    • Assign as a dimmer pack or switch pack
    • Changeable hanging bracket to hang on truss
    • Wall mountable
    • LED “On” indications
    • Max Power: 15A Total, 5A per channel (120V)
    • Dimensions (LxWxH): 10.25x8.25x3” (260x209x76mm)
    • Weight: 6 lbs. (2.72 kgs.)

In The Box
