The UHD-100A is the world’s most cost effective 4K POV camera solution. With its 4K UHD Progressive Scan CMOS sensor and Digital Image Processor, the UHD-100A produces detailed videos that are sharp and true to color, while also being able to utilize Dynamic Range, Adaptive White Balance, and motion-compensated temporal noise reduction filter for reduced noise even under low light conditions. The UHD-100A features a compact and rugged form factor with interchangeable lens capabilities, making it highly versatile for various video applications.
AIDA UHD-100A Features
- 4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions
- Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction
- Superb motion-compensated temporal noise reduction filter for motion video without blurring
- OSD control breakout cable with power input and RS-485 for remote communication
- Interchangeable lens design compatible with CS and C mount lenses
- Perfectly suited for broadcast, pro audio/video, and security
- Versatile, compact, and rugged design
- With TRS Stereo Audio Input for embedded audio over HDMI

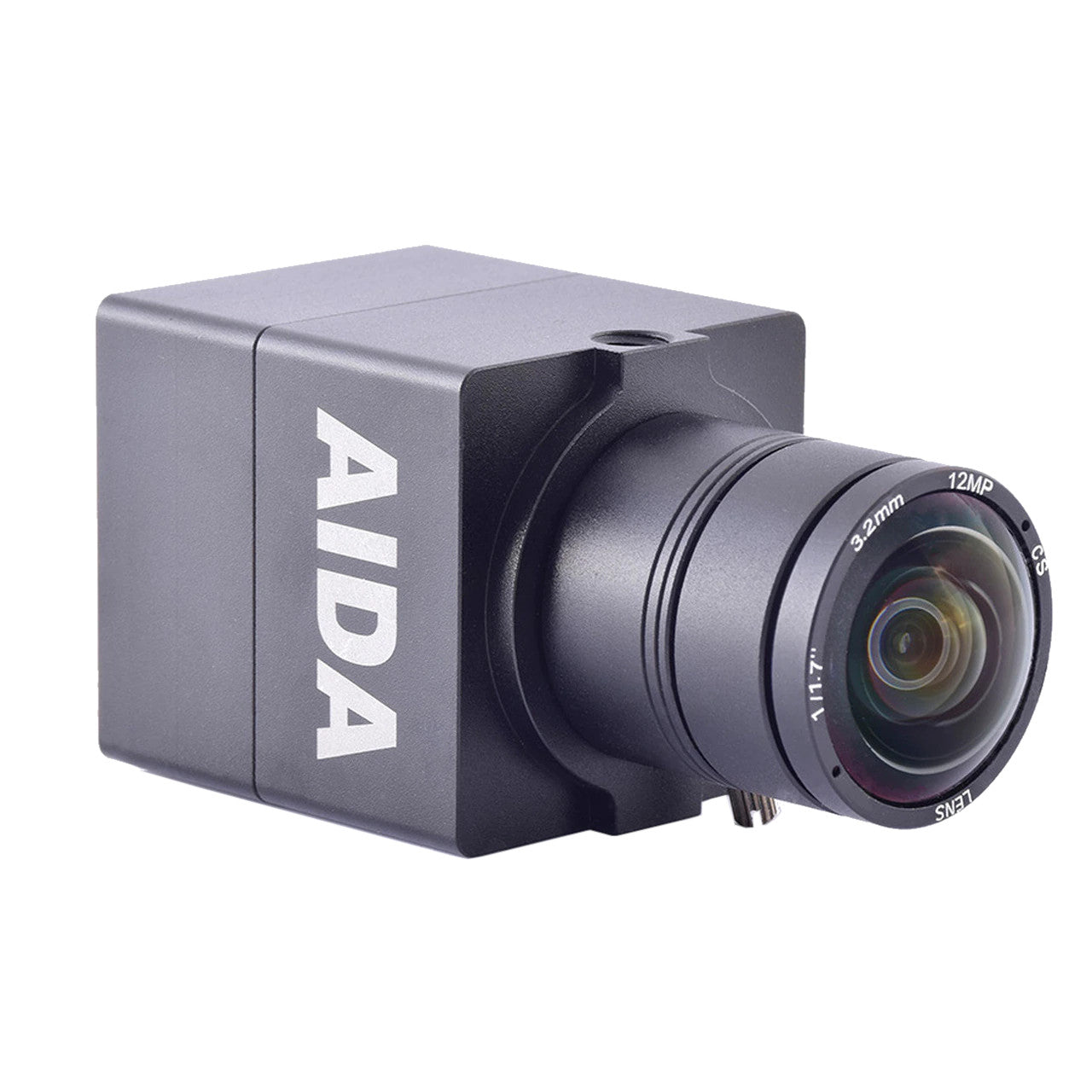

- UHD-100A Micro UHD HDMI POV Camera1
- Video
- Image Sensor: 1/2.5″ Progressive CMOS
- Sensor Size: Diagonal 7.20mm
- Effective Pixels: Horizontal: 3840, Vertical: 2160
- Pixel Size: 1.62 µm (H) x 1.62 µm (V)
- Resolution: 2160 30p/29.97p/25p/24p 1080 60p/59.94p/50p/30p/ 29.97p/25p/24p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/25p
- Output: HDMI 1.4
- Color Space: 4:2:2 (YCbCr) 10bit
- Function
- White Balance: AWB / AE / AF
- Exposure: Full Auto, Bright, Shutter Priority, Iris Priority, Manual
- Other: WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction, Digital Slow Shutter, Black Level Compensation, Flicker Detection
- LensC/CS Mount (Default UHD 3.2mm Lens)
- Audio
- Input: 3.5mm TRS Stereo Mic-in & Line in over I/O Cable
- Sample Rate: 16/24/32 Bits
- Physical
- Camera Control: RS-485 VISCA, OSD Button
- Operation Temp: 32° F – 104° F
- Dimension: 1.53 x 1.53 x 1.99 inches (39 x 39 x 50.5 mm)
- Weight: 0.3 lbs (140g)
- Power: 12VDC (+9 – +15VDC)
