The PZM11 LL WR is a professional weather-resistant boundary layer microphone designed for fast-food restaurants, outdoor intercoms, toll booths, and more. A plastic membrane inside the microphone protects the mic capsule from water damage. The PZM11 LL WR will work during and after rainfall. If water freezes on the membrane, the mic's frequency response will change but will return to normal when the ice melts and the membrane dries.
The PZM11 LL WR is powered by 12V - 24V DC, provides line-level output and can be plugged directly into a VCR line input without the need for a costly mic preamp.

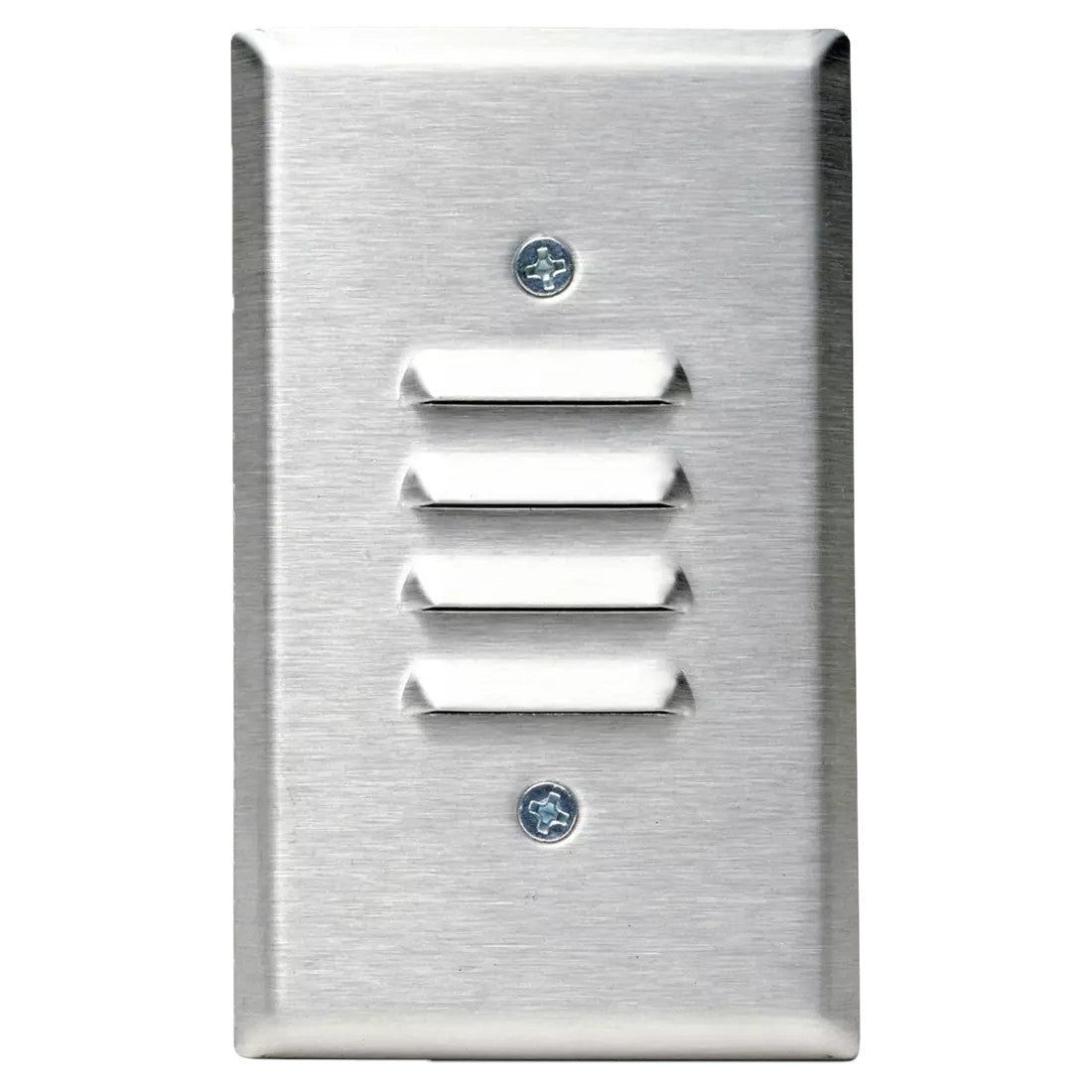

The PZM11 LL WR is a weather-resistant Pressure Zone Microphone® with a balanced, line-level output. A plastic membrane inside the microphone protects the mic capsule from water damage. The mic mounts in a standard electrical outlet box. Applications include fast-food restaurants, outdoor intercoms, toll booths, bridges, theme park security, home automation, and so on.
The microphone can be plugged directly into a VCR line input - no costly mic preamp is needed. Output (via screw terminals) can be balanced or unbalanced. Powering is by 12-24V ACor DC. The unit can be factory-set for phantom powering by special order.
In the PZM11LLWR, frequencies below the voice range are rolled off to reduce traffic rumble. The high-frequency response is boosted to help articulation. Because of its tailored response and PZM construction, the PZM11 LLWR will pick up conversations or other desired sounds with extra clarity.
The unit is "weather resistant", which means:
- The microphone will work during and after rainfall.
- The mic's frequency response will change temporarily if the membrane gets wet, but will return to normal when dry.
- If water freezes on the membrane, the mic's frequency response will change, but will return to normal when the ice melts and the membrane dries.
- High-pressure water sprays directly on the membrane (through the louvered wall plate) may damage the membrane.
- The microphone is not designed to be submerged.
AKG PZM11 LL WR Features
- Hemispherical polar pattern
- Weather-resistant model
- Line-level output
- PZM11 LL WR Weather-Resistant Boundary Microphone1
- Audio frequency bandwidth80 - 10000 Hz
- Equivalent noise level26 dB-A
- Sensitivity5 mV/Pa
- Signal to Noise68 dB-A
- Dimensions (LxWxH)70x115x44mm
- Net Weight71 g
- DesignFinish: silver gray
- Audio OutputType: screw material
- Powering InterfaceVoltage: 12 to 24V
- ApplicationRetail: Yes
- DeviceBoundary Layer Microphone: Yes
