Alfatron Electronics 12X-HDBaseT HDBaseT PTZ Camera

The ALF-12X-HDBaseT is an HD PTZ 1080p equipped camera with a 12x Zoom Lens. This PTZ camera is suitable for medium to large-sized meeting rooms, boardrooms, and conference venues. The ALF-12X-HDBaseT is compatible with video meeting software, such as Teams and Zoom. The Full HD 1080P camera is equipped for a high-quality video stream and high definition real-time synchronization.

Alfatron Electronics 12X-HDBaseT Features

• Superb High-definition; Image Utilizes 1/2.8-inch-high quality CMOS sensor. Resolution is up to 1920×1080 with a frame rate up to 60 fps
• Leading auto focus algorithm assures the lens is fast, accurate and stable at auto-focusing
• Low Noise and High SNR Low Noise CMOS effectively ensures high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.
• Quiet PTZ: By adopting a high accuracy step driving motor, the camera works quietly and moves smoothly and quickly to a designated position.
• Video Outputs: Supports HDBaseT
• Remote Controls: IR remote controller
• Low-power Sleep Function: Supports low-power sleep/wake up. The consumption is lower than 500mW under sleep mode.
• Support Multiple Control Protocol: Supports VISCA, PELCO-D and PELCO-P protocols which can also be automatically recognized. Supports VISCA control protocol via the IP port.
• Multiple Network Protocol – Supports IP VISCA, ONVIF, RTSP & RTMP
• Control Protocols – VISCA IP, ONVIF, PELCO-D, PELCO-C and VISCA standard protocols
• 255 Presets Positions: Up to 255 presets (10 presets via remote Controller)
• Wide usage Application: Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems
• Power: DC 12V PSU or POC

• 2X-HDBaseT HDBaseT PTZ Camera1
• Power supply1
• RS232 control cable1
• IR remoter1
• Mount bracket1

• Model12X
• Camera Parameter
  • Sensor: 1/2.8-inch-high quality HD CMOS sensor
  • Effective Pixels: 16: 9 2.07 megapixel
  • Video Format
    • HDBaseT video format: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97
  • Optical Zoom
    • 12X
    • f＝3.9～46.1mm
  • View Angle
    • 6.3°（Tele）
    • 72.5°（Wide)
  • AV: F1.8 – F2.4
  • Digital Zoom: 10X
  • Minimum Illumination: 0.5Lux (F1.8, AGC ON)
  • DNR: 2D & 3D DNR
  • White Balance: Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
  • Focus: Auto/Manual
  • Aperture: Auto/Manual
  • Electronic Shutter: Auto/Manual
  • BLC: ON/OFF
  • WDR: OFF/ Dynamic level adjustment
  • Video adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
  • SNR: >55dB
• Input/Output Interface

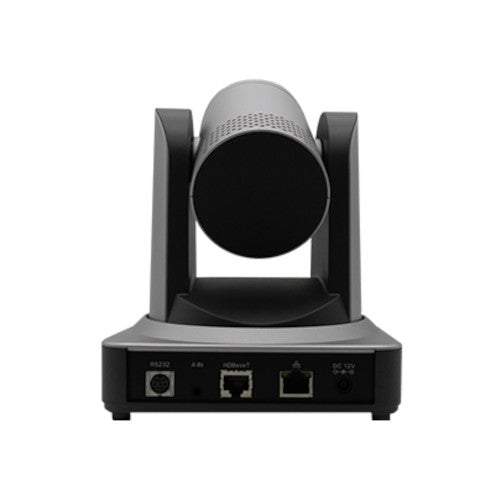

  • Video Interfaces: HDBaseT (POE), LAN, Audio-in, RS232
  • Image code stream: Double streams output simultaneously
  • Video Compression format: H.264, H.265
  • Control Signal Interface: RS-232 Ring through RS232 output, RS-485
  • Control Protocol: VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
  • Audio Input Interface: Double track 3.5mm linear input;
  • Audio Compression Format: AAC/MP3/PMC Audio compression
  • HD IP Interface: 100M IP port (100BASE-TX); supports IP Visca control protocol
  • Network Protocol: RTSP/RTMP,ONVIF
  • Power Interface: HEC3800 outlet (DC12V)
• PTZ Parameter
  • Pan Rotation: ±170°
  • Tilt Rotation: -30°～+90°
  • Pan Control Speed: 0.1 -60°/sec
  • Tilt Control Speed: 0.1-30°/sec
  • Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
  • Preset Number: 255 presets (10 presets by the remote controller)
• Other Parameters
  • Supply Adapter: AC110V-AC220V to DC12V/2A
  • Input Voltage: DC12V±10%
  • Input Current: 1A (Max)
  • Consumption: 12W (Max)
  • Store Temperature: -10℃ to +60℃
  • Store Humidity: 20% – 95%
  • Working Temperature: -10℃ to +50℃
  • Working Humidity: 20%–80%
  • Dimension: 150x150x167.5mm
  • Weight: 1.4KG
  • Working Environment: Indoor
  • Remote Operation (IP): Remote Upgrade, Reboot and Reset
