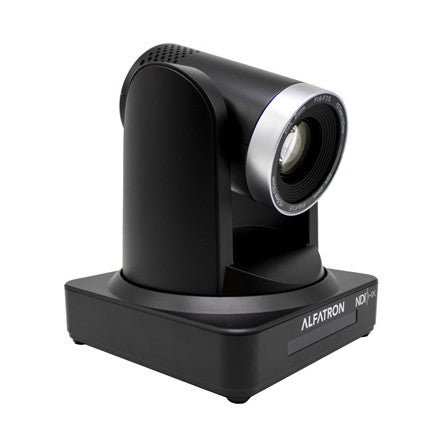

Alfatron Electronics 30X-NDIC NDI PTZ Camera

The ALF-30X-NDIC is an HD PTZ 1080p equipped camera with a 30x Zoom Lens. This PTZ camera is suitable for medium to large size meeting rooms, boardrooms, houses of worship, and conference venues. The ALF-30X-NDIC is compatible with video meeting software, such as Teams and Zoom. The 1080P HD camera is equipped for a high-quality video stream and high definition real-time synchronization. Choose this camera in black or white.

Alfatron Electronics 30X-NDIC Features

• 1080P video with a Frame rate up to 60fps
• 30x Zoom Lens which gives you a clear and a fluent image
• Field of view: 2.34°(Tele) 65.1°(Wide)
• Leading Auto Focus Technology
• Low Noise and High SNR
• Quiet PTZ
• 255 Presets
• Multiple Network Protocol – Supports IP VISCA, ONVIF, RTSP & RTMP
• Control Protocols – VISCA IP, ONVIF, PELCO-D, PELCO-C and VISCA standard protocols
• Wide Application – Tele Education, Lecture Capture, Webcasting, Video Conferencing, Tele Training, Tele Medicine, Interrogation, and Emergency command systems
• SDI, HDMI, RS232, Network, NDI Connectivity with audio input
• PC control using Sony Visca, Pelco D/P commands
• Powered by POE

• Alfatron Electronics 30X-NDIC NDI PTZ Camera1
• RS232 cable1
• Remote control1
• Wall mount1
• Manual1
• Warranty card1

• Camera Parameter
  • Optical Zoom
    • 30X
    • f＝4.3~129mm
  • Sensor: 1/2.8-inch-high quality HD CMOS sensor
  • Effective Pixels: 16: 9, 2.07 megapixel
  • Video Format: HDMI/SDI video format - 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97
  • View Angle
    • 2.34°(tele)
    • 65.1°(wide)
  • AV: F1.6 – F4.7
  • Digital Zoom: 10X
  • Minimum Illumination: 0.1Lux
  • DNR: 2D & 3D DNR
  • White Balance: Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
  • Focus: Auto/Manual/One key focus
  • Aperture/Electronic Shutter: Auto/Manual
  • BLC: ON/OFF
  • WDR: OFF/ Dynamic level adjustment
  • Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
  • SNR: >55dB
• Input/output Interface
  • Video Interfaces: SDI, HDMI, LAN (NDI) (POE), RS232 (In & Out), RS485, A-IN
  • Video Output Interface: HDMI, SDI, LAN
  • Video Compression: H.264, H.265, Dual stream output
  • Control Protocol: VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps
  • Audio Input Interface: A-IN: Double track 3.5mm linear input; (Network Stream embedding only, does not embed to HDMI or SDI outputs)
  • Audio Compression: AAC/MP3/G.711A Audio compression
  • HD IP Interface: 100M IP Port(10/100BASE-TX); Support VISCA protocol control through IP port. Port : 1259
  • Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, NDI
  • Power Interface: HEC3800 Outlet (DC12V),LAN(POE)
  • Supply Adapter: AC110V-AC220V to DC12V/1.5A
  • Input Voltage: DC12V±10%
  • Input Current: 1A (Max)
  • Consumption: 12W (Max)
• PTZ Parameter
  • Pan/Tilt Rotation: ±170°, -30°～+90°
  • Pan Control Speed: 0.1 -60°/sec
  • Tilt Control Speed: 0.1-30°/sec
  • Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
  • Preset Number: 255 presets (10 presets by the remote controller)
• Other Parameters
  • Storage Temperature: -10℃～+60℃
  • Storage Humidity: 20%～95%
  • Working Temperature: -10℃～+50℃
  • Working Humidity: 20%～80%
  • Dimensions: 150x150x167.5mm
  • Weight: 1.4KG
  • Remote Operation (IP): Remote Upgrade, Reboot and Reset
