Allen & Heath’s SQ-7 digital mixer is built for professionals in demanding live sound applications. XCVI 96kHz FPGA engine provides unrivalled power and audio fidelity with high resolution audio and ultra-low latency. The SQ-7 offers the tools you need for any mixing needs from AV and corporate events to live events and houses of worship.

Mixer is equipped with 32 onboard preamps and 8 stereo FX engines with dedicated return channels and access to the RackExtra FX library. In-ear monitoring setups are supported with the 12 stereo mixes, while multi-mic environments work well with Automatic Mic Mixing.

Powerful processing lets you create your best mix. All 48 inputs have HPF, a super-fast gate with sidechain and filter, 4-band parametric equalizer, and Peak/RMS compressor. Mixes have a parametric and 28 band graphic EQ along with compressor as standard. XCVI core allows every compressor in the SQ-7 to have its own parallel path without having to worry about phase or coherency.

Design is centered around a touchscreen, framed with high-grip illuminating encoders to create a blend of visual feedback and hands-on control. Drag and drop channels and mixes to any strip and customize naming and color coding on strip displays to build a personal mixing setup. Three tier all metal chassis and extruded aluminum light bar keep the mixer protected in tough environments.

Advanced automatic mic mixers (AMMs) are fully integrated in the mixer with no added latency. These ensure the mixer meets the needs of mixing conferences, panel talks, and TV shows.

Expand up to a total of 48 mic inputs with the SLink intelligent port on the SQ-7. The SQ-7 can be linked directly to another SQ or a dLive system.

Pair with the SQ apps SQ MixPad and SQ4You for additional functions. Add compatible plug-ins, such as DEEP and RackExtraFX. The SQ-7 is also compatible with Dante, Waves, MADI and more audio networking cards.

Allen & Heath SQ-7 Features

Compact Digital Mixer for Live, Studio and Installation
32x32 channel USB audio interface for streaming to/from Mac/PC
36 Total Busses
12 Stereo Mix (Aux or Group) + Main
PAFL Bus
I/O Port for Option Card (such as 3rd party protocols – Dante/Waves--not included)
8 Stereo FX with dedicated FX Returns
DEEP Processing Ready
RackFX Effects suite
7" color touchscreen
16 Assignable SoftKeys
8 Assignable Soft Rotaries
Dedicated physical controls for channel processing (Gain, HPF Frequency, Gate Threshold, Compressor Threshold, Pan, EQ Gain/Frequency/Width)
32+1 Faders with 6 Layers for 192 assignable Channel Strips
Motorized faders for sends on faders, GEQ fader flip and mix recall
32 Backlit LCD Channel Strip displays
Chromatic Channel Metering
Integrated Surface Illumination
Single/Dual Footswitch Control
Input channel pairs switchable mono/stereo
Patchable Insert points
DEEP Automatic Mic Mixing
2 31/61 Band Real Time Analyzers
Quick copy/paste/reset for parameters
User Permissions to restrict operator access
300 Scene memories per show
Channel Safes, Global and per Scene Recall Filters
FX, processing, and channel Libraries
SQ-Drive for stereo and multitrack recording/playback direct to USB drive
USB transfer of Scenes, Libraries, Shows
MIDI via USB or TCP/IP, including DAW control options
Remote mixing apps for iPad, Android, Mac and PC
Compatible with ME personal monitoring range
96kHz FPGA processing
2 stereo mixes + LR
3 stereo matrix
8 stereo FX engines + dedicated returns
64ch I/O Port for audio networking
Integrated SQ-Drive for direct recording to USB
Chromatic channel metering
Integrated LED illumination
Dedicated physical controls
Channel LCD displays
Sufficient onboard I/O for standalone operation

SQ-7 Digital Mixer1
One Year Limited Manufacturer Warranty1

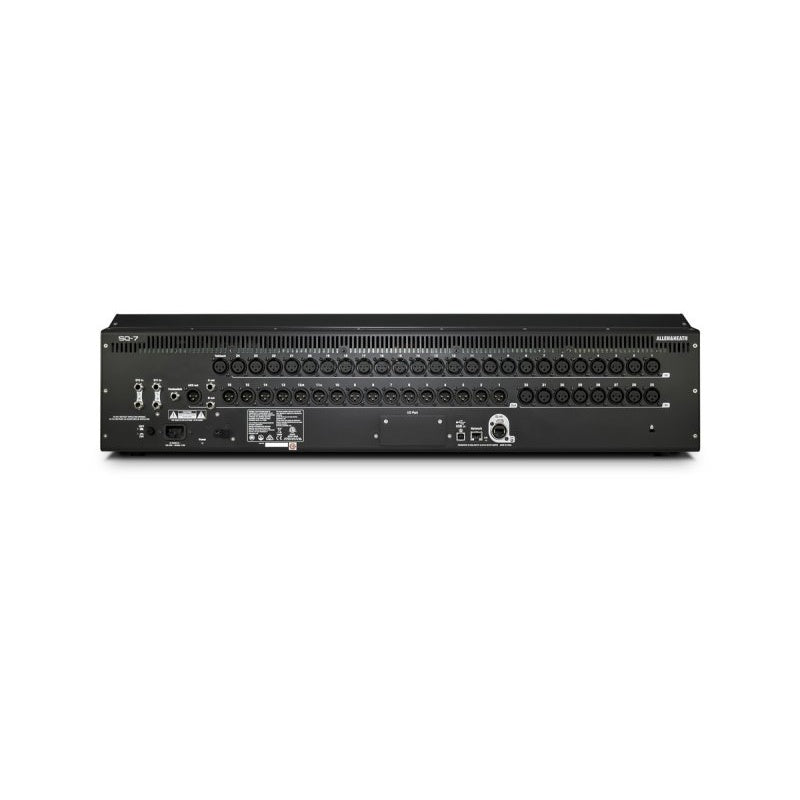

Inputs
- Mic/Line Inputs: Balanced XLR, fully recallable
- Stereo Line Inputs
Outputs
- XLR Outputs: Balanced, XLR
- AES Digital Output
Slink
- Connection: Neutrik EtherCON (RJ45)
- dsnake mode (48kHz devices): 40 input 20+40(ME) output channels
- dx mode (96kHz devices): 32 input 32 output channels
- gigaACE/GX (96kHz devices): 128 input 128 output channels
- Inputs: Fully Patchable
- Outputs: Fully Patchable
- Sync/SRC: Assignable as master audio sync for all modes, SRC 64 channel
I/O Port
- Inputs: Fully Patchable
- Outputs: Fully Patchable
- Sync/SRC: Assignable as master audio sync
System
- Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
- Dynamic Range: 112 dB
- Frequency Response: +0/-0.5dB 20Hz to 20kHz
- Headroom: +18dB
- Internal operating Level: 0dBu
- THD+N, Mic/Line routed to Main L/R Out: Unity gain faders@0dB, 0.006%, -84dBu (20 - 20kHz)
- dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
- Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
- Main Meter Type: 2 x 12 segment, fast (peak) response
- Channel Meter Type: Chromatic Channel Metering, fully programmable colour/brightness
- Peak Indication: -3dBFS (+19dBu at XLR out), multi-point sensing
- Sampling Rate: 96kHz
- Bit Depth: Uses XCVI core custom bit widths in algorithms, up to 96bits
- Latency: <0.7mS, Local Mic Input to Main L/R
- Operating Temperature Range: 0 deg C to 40 deg C (32 deg F to 104 deg F)
- Mains Power: 100-240V AC, 50/60Hz
- Max Power Consumption: SQ-5/SQ-6/SQ-7 75W / 90W / 110W
Control
- Faders: 100mm motorised
- Touch Screen: 7" Capacitive, 800 x 480 resolution, 24 bit RGB
- SoftKeys: 8 (SQ-5), 16 (SQ-6, SQ-7)
- SoftRotarys: 4 (SQ-6), 8 (SQ-7)
- Mute Groups / DCA Groups: 8 / 8
- Network: TCP/IP Ethernet for MIDI and Control
- MIDI: TCP/IP and USB-B
- Footswitch: Single or Dual, Momentary or Latching
Input Processing
- Source
- Polarity: Normal/Invert
- Trim: -24 to +24dB
- High Pass Filter: 12/18/24dB per octave 20Hz – 2kHz
- Insert (Pre EQ/Comp): Fully Patchable
- Delay: Up to 341ms
- Gate: Patchable Sidechain
- PEQ: 4-Band fully parametric, 20-20kHz, +/-15dB
- Compressor: Patchable Sidechain, DEEP options
- Channel Direct Out: Follow Fader, Mute, Mute Group, DCA (global all ch)
- Source select: Post-Preamp, Post-HPF, Post-Gate, Insert Return, Post-PEQ, Post-Comp, Post-Delay trim -infin to 10dB per channel
Mix Processing
- Insert (Pre EQ/Comp): Fully Patchable
- Delay: Up to 682ms
- GEQ: 28 bands 31Hz-16kHz, +/-12dB Gain, Constant 1/3 oct, DEEP options
- PEQ: As Input PEQ
- Compressor: As Input Compressor
FX
- Internal FX: 8 x RackFX engine, Send>Return or Inserted (4 dedicated fx bus)
- Types: SMR Reverb, Stereo Tap Delay, Gated Reverb, ADT, Blue Chorus,Symphonic Chorus, Flanger, Phaser
- 8 dedicated Stereo FX returns: Fader, Pan, Mute, Routing to Mix/LR, 4-Band PEQ
Audio Tools
- PAFL: PFL or stereo in-place AFL, 0 to -24dB Trim, PAFL Delay Up to 682ms
- Talkback: Dedicated input, Assignable to any mix, Gain, Pad, 48V, 12dB/oct HPF
- Signal Generator: Assignable to any input or mix, Sine/White/Pink/Bandpass Noise
- RTA's: 2x 31-Band 1/3 octave (Stereo) or 61-Band 1/6 octave (Mono) 20-20kHz. PAFL/Selected Channel or Fixed Source
USB Audio
- SQ-Drive: USB-A
- USB Audio Streaming: USB-B, Core Audio compliant, ASIO/WDM for Windows
AMMs
- Configuration: 2x 24ch or 1x 48ch, freely assignable
- Type: Gain Sharing
- Sidechain Filter HPF / LPF: 12dB/octave 20Hz – 5kHz / 120Hz - 20kHz
- Priority: -15dB to +15dB per channel
Add-ons
- DEEP Preamps: Tube Stage
- DEEP Compressors: Opto, 16T, 16VU, PeakLimiter76, Mighty
- DEEP GEQ's: Proportional-Q, DiGi-GEQ, Hybrid
- RackFX units: De-Esser, DynEQ4, MultiBD3, MultiBD4, Bucket Brigade, Echo, Hypabass
