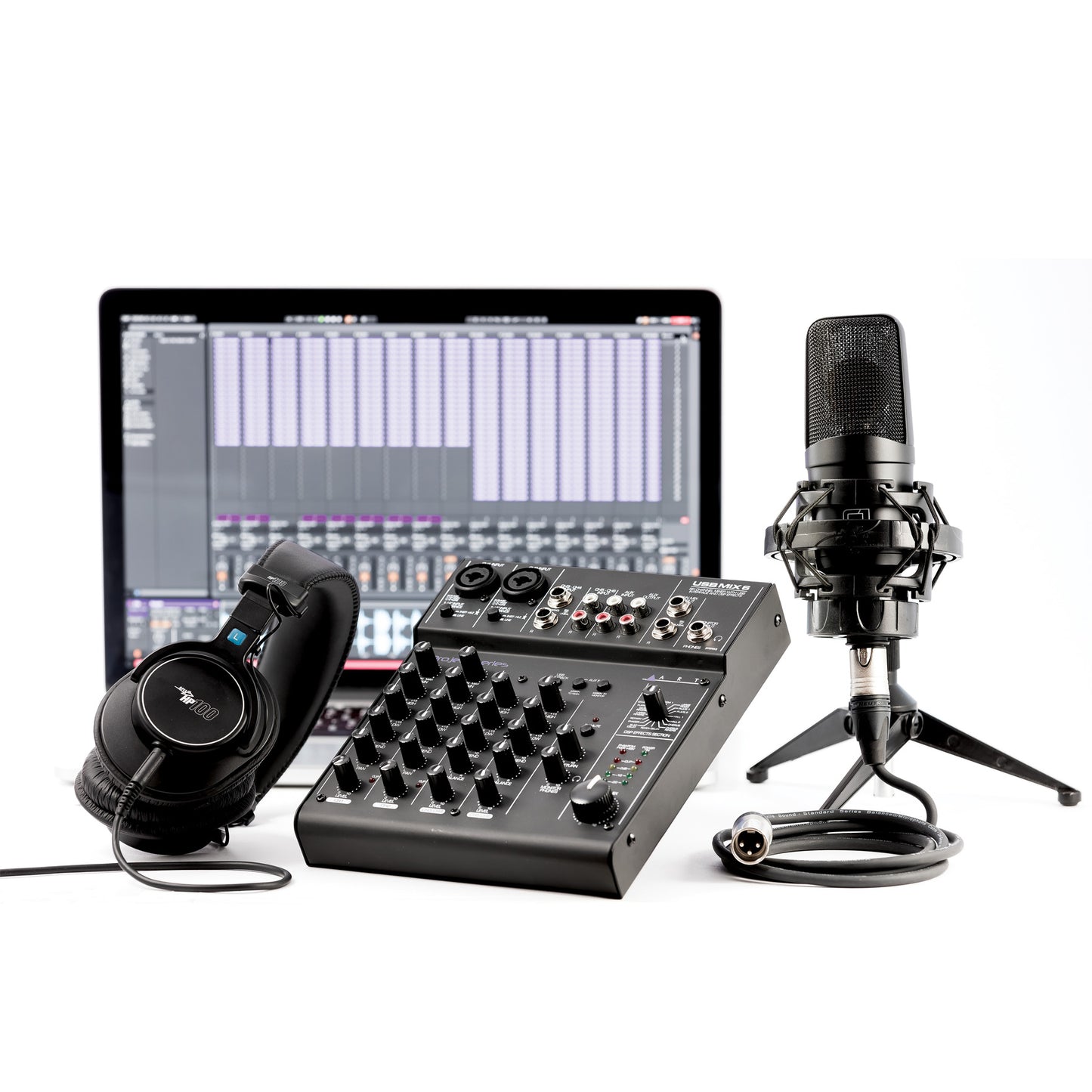

ART USBMix6 6-Channel Mixer / USB Audio Interface

The ART USBMIX6 Microphone, Instrument, and Line Mixer / Computer Interface is a compact versatile audio interface for your computer that converts analog signals from a variety of audio sources to a digital audio. The built-in low latency stereo digital effects add to the versatility. It can also be used as a standalone mixer through the main mix outputs. The USBMIX6 provides a great starting point for personal home studio recording or for anyone wanting to do mobile location recording. Use the USBMIX6 to record podcasts, capture your latest idea for a song, make voiceovers for your home movies, or record a jam with a friend – whenever and wherever your creativity takes you!

ART USBMix6 Features

• High Performance Low Noise Design
• Six Discrete Inputs (2 x Mic / 2 x Stereo Line Level)
• Switchable +48v Phantom Power (CH1 & CH2)
• High and Low EQ on Each Input Channel
• Integrated Stereo Multi-FX with Adjustable Sends & Returns
• Stereo LED Metering
• Independent Level Controls for Main and Headphone/Monitor Outputs
• Integrated Class Compliant Plug-and-Play USB Audio for Mac & PC

• USBMix6 6-Channel Mixer / USB Audio Interface1

• Input Connections
  • XLR & ¼-inch Balanced Combi-jack (CH 1 & CH2)
  • ¼-inch TRS Balanced (CH3 & CH4)
  • RCA Unbalanced (CH5 & CH6), RCA Aux Loop In (L & R)
• Output Connections
  • ¼-inch TRS Balanced Main Mix Outputs
  • ¼-inch TRS Stereo Output & Monitor Outputs
  • RCA Loop Out (L & R)
• Signal to Noise Ratio >90dB Typical (Ref 0dBu)
• Maximum Input Level +4dBu (Mic), +20dBu (1/4-inch Input)
• Maximum Output Level +15dBu Main Mix Outputs
• Maximum Gain >54dB (Mic), >39dB (Instrument), 10dB (Stereo Monitor & Line Out)
• USB Computer Interface USB Class Compliant plug-and-play Mac / PC Interface
• Power 5v DC @ <1A (external) (Adaptor Included)
• Dimensions (HxWxD) 1.9x7.4x8.5″ (47x186x215mm)
• Weight 3.24 lbs (1.47 kg)
