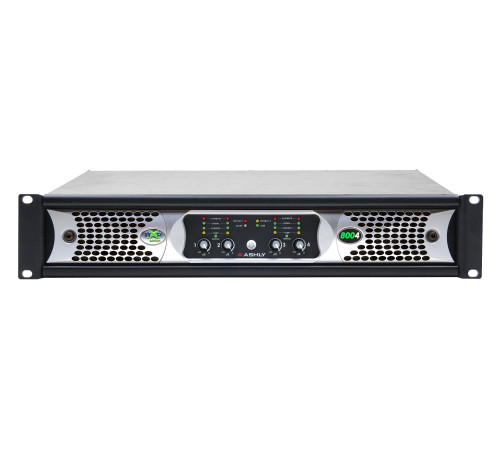

The nX8004 nX Multi-Mode 4x800W Power Amplifier from Ashly offers 4 channels and has 800 Watts per channel. nX Multi-Mode Amplifiers feature energy-efficient Class-D switching amplifier technology combined with a switch mode power supply. All feature Selectable Outputs on each channel so you can connect to virtually any speaker: low impedance (2, 4, and 8-ohm), or constant voltage (70V or 100V).
Ashly nX8004 Features
- Rear panel DIP switches select low impedance (2, 4, and 8 Ohm), constant voltage (70V or 100V), high pass filter, limiter and input gain on each channel
- Ashly Energy Management System (EMS) for increased efficiency) automatic <1Wsleep-mode (defeatable)
- Switch mode power supply automatically detects 120V or 240V AC operation
- Extensive protection circuitry
- Continuously variable cooling fans
- Front panel power switch and level controls (can be disabled for security)
- Multiple internal power supplies provide increased channel separation and reliability
- Remote DC level control on each input channel (2 RU models only)
- Genuine Neutrik® connectors on 2 RU models for security, safety, and reliability
- Safety / Compliance: cTUVus, CE, FCC, RoHS
- nX8004 nX multi-mode 4 x 800 watt power amplifier1
- Channels4
- Max Output Power
- Measured in Watts, Per Channel, Low Impedance Output, All Channels Driven
- 2Ω: 800
- 4Ω: 800
- 8Ω: 800
- Low Impedance Output
- Measured in Watts, Bridge Mode, All Channels Driven
- 4Ω: 1600
- 8Ω: 1600
- 70V, 100V Constant Voltage Output: Measured in Watts, All Channels Driven
- 70V per channel: 800
- 100V per channel: 800
- Total Power Draw
- Measured in Watts, Total for all Channels
- Sleep Mode: <1
- Standby Mode: 40
- Idle (no signal): 70
- Current Draw
- Measured in Amps, Total for all Channels, 120VAC (divide by 2 for 240VAC)
- Sleep Mode: 0.1
- Standby Mode: 0.70
- Idle (no signal): 1.30
- Max Current Draw
- Measured in Amps, Typical Input, All Channels Driven (divide by 2 for 240VAC)
- 1/8 Max Power @ 2Ω: 8.8
- Thermal Dissipation
- BTU/hr, Typical Input, Total for all Channels
- Sleep Mode: <3.4
- Standby Mode: 136
- Idle (no signal): 238
- 1/8 Max Power @ 2Ω: 970
- Dimensions (WxHxD)19" x 3.5" x 16.84"
- Weight25.2 pounds
