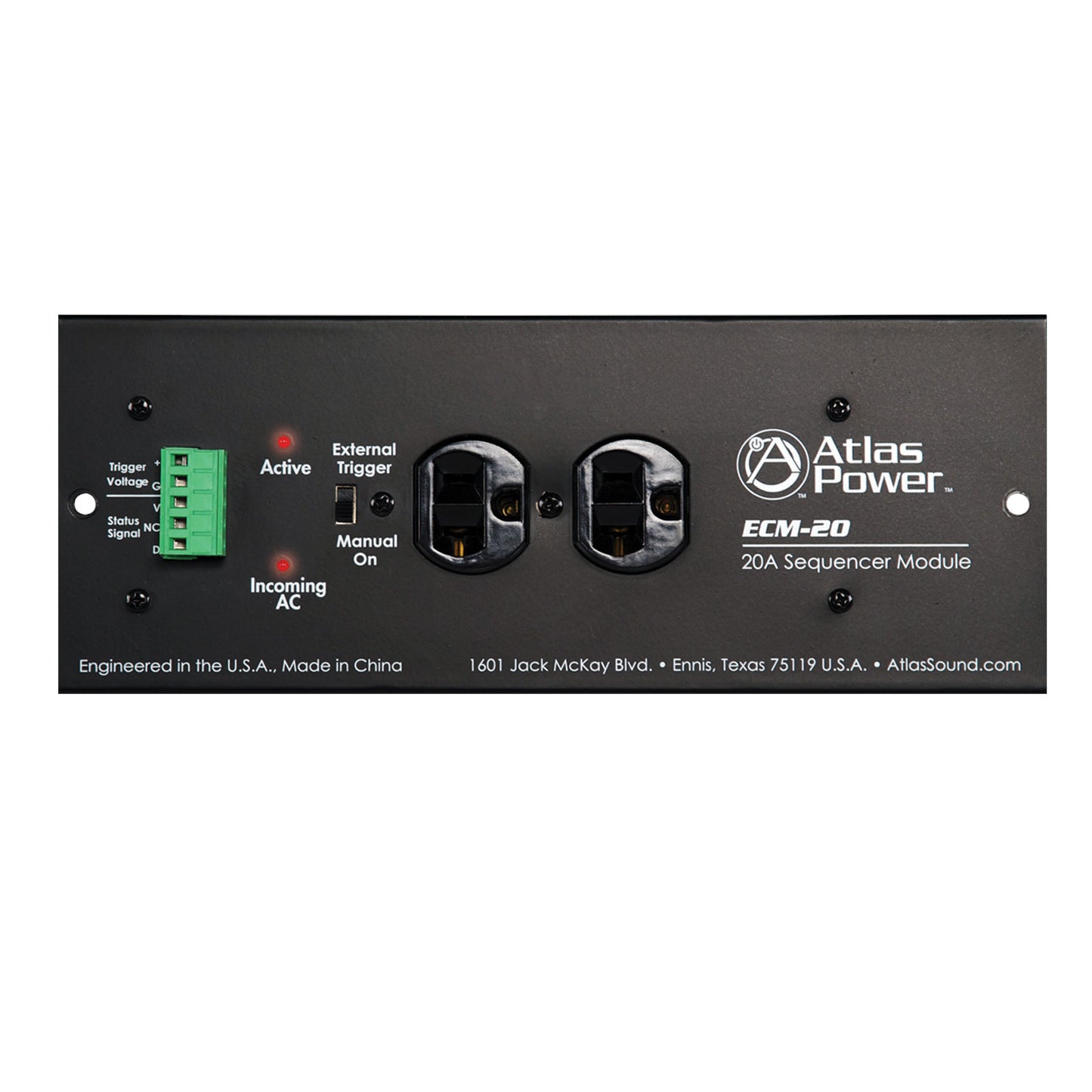

The Atlas Power ECM-20 is a 20A Power Conditioner and AC Spike Suppressor that is designed to be used as a standalone unit or in conjunction with an ECS unit up to 1000ft away. The ECM-20 features AC Spike and Surge Suppression, AC Mains Voltage monitoring, EVS circuitry, and Remote Activation.
The ECM-20 is designed to be conveniently housed in the ECM-RACEWY6 for the addition of multiple outlets directly connected to the AC mains from the electrical panel.
AtlasIED ECM-20 Features
- 2 Outlets, 20A
- Manual/Auto On/Off Switch
- Incoming AC Present LED
- Active LED
- Clamping Spike & Surge Suppression
- AC Mains Voltage Monitoring
- ECM-20 20A Sequencer Module1
- Current Rating 20 Amps
- Power Requirement 120V 60Hz
- Certified to Safety Listing MET (UL 1449)
- Operating Voltage 102-132VAC
- Mimimum Spike Clamping Voltage 460 VRMS @ 3000A
- Maximum Spike Clamping Voltage 6,000V
- Power Consumption 0.5 Watts
- Dimensions (H x W x D) 3 x 8.5 x 3.5 inches (76.2 x 215.9 x 88.9mm)
- Weight 1.25 lbs (.68 kg)
