AtlasIED EZSYS-BGM-CPHD Easy System Background Music Kit
AtlasIED EZSYS-BGM-CPHD Easy System Background Music Kit
$792.99

AtlasIED EZSYS-BGM-CPHD Easy System Background Music Kit

SoundPro Item: 115994
MPN: EZSYS-BGM-CPHD
MSRP: $988.99
$792.99
Add to Wish List

Account manager
Contact an Account Manager for your personalized price

The EZSYS-BGM-CPHD package is an entire business music and paging system. It includes a patented self-diagnostic technology called "Push Here Diagnostics". The system package includes the proper amplification, system control, and speakers. All you need are audio sources and cables. The box illustrates the proper way to connect the equipment including cable and tool requirements.

AtlasIED EZSYS-BGM-CPHD Kit Features

  • Mixer amplifier
    • Rear mounted DIP switch allows mute receive for inputs 2 and 3
    • Contact closure mute terminals
    • Variable mute sensitivity control for input 1
    • Preamp in for external processors
    • Line output
    • Remote input select
    • Remote level control
    • Input assignable zone 2 output
    • Two unbalanced summing line level inputs
    • Balanced mic/line/tel input with phantom power
    • Automated diagnostic system test
  • In-ceiling loudspeakers
    • 10 oz dual cone loudspeaker provides familiar response and performance
    • 5-watt dual voltage transformer
    • CRS white powder coat baffle
  • T-bar bridges
    • Load-bearing bridges eliminate ceiling tile sag by distributing assembly weight to ceiling's support system
    • Round cutout suits baffles mounting the industry standard AtlasIED 95 Series enclosures
    • Rust-resistant, 22-gauge, electrogalvanized steel construction

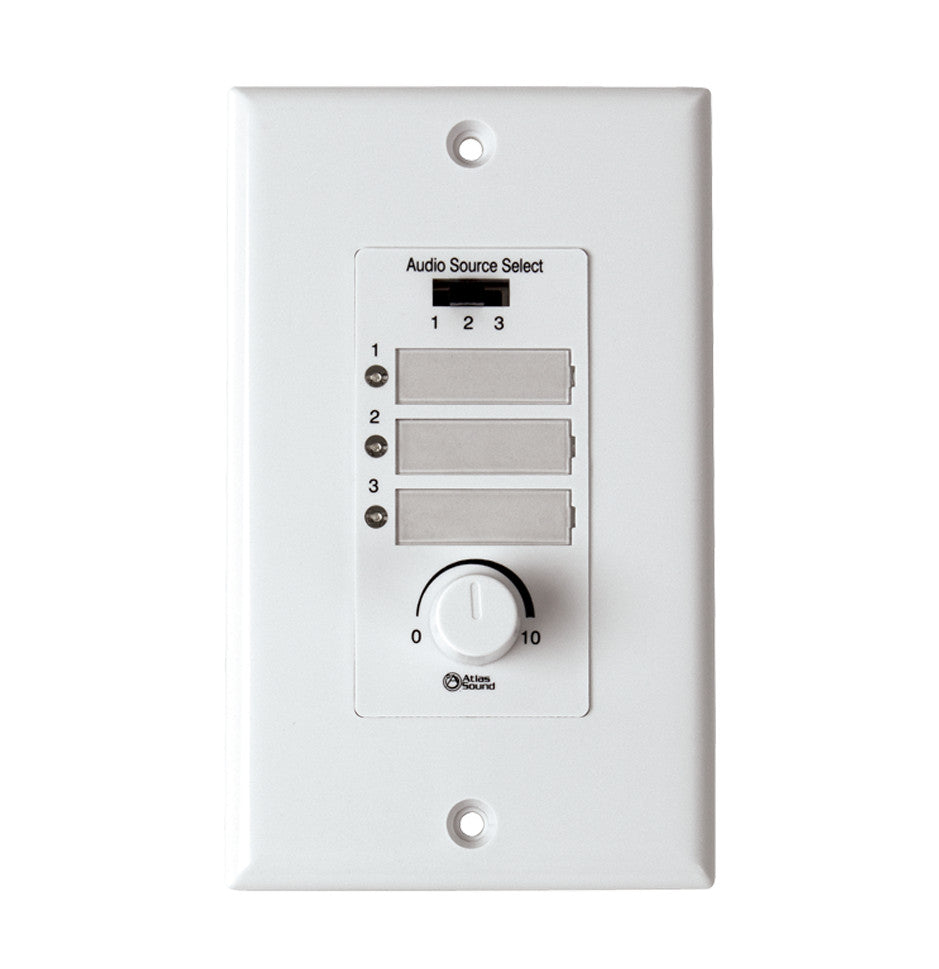

  • Wall controller
    • Input select slide switch
    • Level control via on board potentiometer
    • System status indicator (red)
    • 8-conductor interface connection
    • Label guard
  • Mixer amplifier AA50PHD1
  • 6x in-ceiling loudspeaker SD72W6
  • 6x t-bar support bridge 81-8R6
  • Remote wall controller WPD-RISRL1
  • AA50PHD
    • Frequency Response: 50Hz - 15kHz
    • Connector Type: 4 Position Phoenix 3.5mm Pitch
    • Power Output: Max. Average Power @ 50Hz-15kHz with .5% THD, 4Ω 50W RMS
    • Dimensions (H x W x D): 3.66 x 8.27 x 10.87 inches (93 x 210 x 276mm)
    • Weight: 10.5ib
    • Shipping Weight: 12.4 lb
    • Voltage Compatibility: 110V - 120V
  • WPD-RISRL
    • Dimensions (H x W x D): 4.5 x 2.5 x 0.24 inches (114 x 63 x 6.4 mm)
  • SD72W
    • Speaker Type: Treated Paper
    • Sensitivity: 97dB Average
    • Frequency Response: 55Hz - 8kHz
    • Power Taps: .25, .5, 1, 2, & 5 Watts
    • Dispersion: 105° (2kHz Octave Band, -6dB Points)
    • Diameter: 8 1/8" (20.6375 cm)
    • Safety Listed: 1480
  • 81-8R
    • Height: 14 1/8" (35.8775 cm)
    • Width: 23 5/8" (60.0075 cm)
    • Shipping Weight: 2.17 lbs (0.98 kgs)
    • Mounts: 51-8, 60-8(W), 61-8W, 62-8, 63-8, 67-8(W), 68-8W, 170-8, M222(W), P900
