The EZSYS-BGM-S package is an entire business music and paging system. It is designed for surface-mount installations and includes the proper amplification, system control, and speakers. All you need are audio sources and cables. The box illustrates the proper way to connect the equipment including cable and tool requirements.
AtlasIED EZSYS-BGM-S Kit Features
- Mixer amplifier
- Ideal for paging, background music, and music on-hold applications
- Three input channels, one output channel
- Balanced mic/line input, zone 2 and dual RCA stereo music inputs
- Priority muting by VOX or external switch
- Bass and treble controls on master output
- Universal AC power supply for 120V to 240V use
- Signal presence indicators
- Surface mount loudspeakers
- Highly efficient 4" polypropylene woofer and 1" tweeter
- High frequency protection circuit
- Screwdriver adjustable 16 watt 70.7V/100V transformer
- Constant directivity style high frequency wave guide system
- Weather resistant construction for indoor or outdoor use
- Includes color matched C bracket

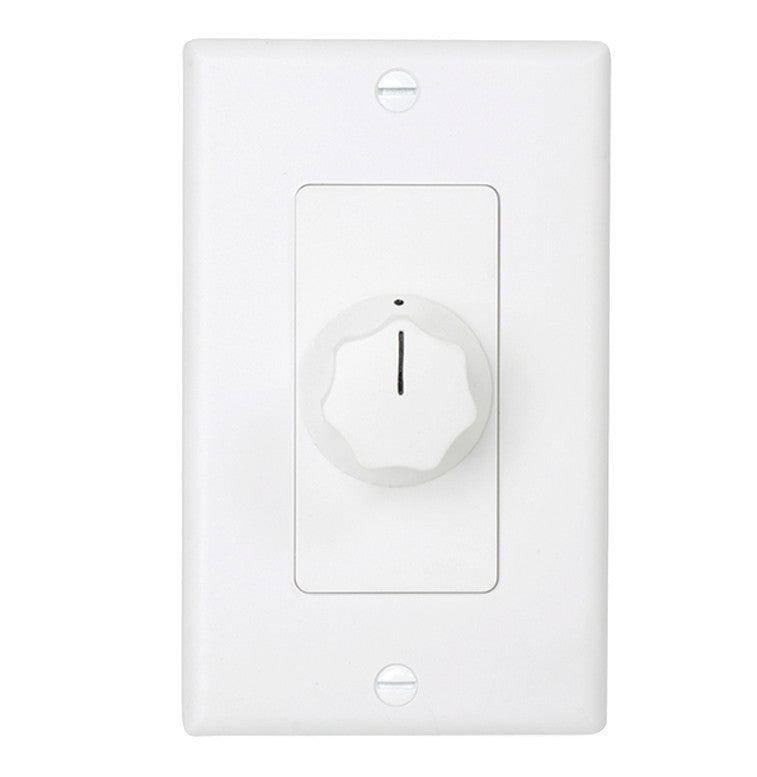

- Remote wall controller
- 1-gang size
- Clean look alternative to commercial series controllers
- Professional mixer amplifier AA35G1
- Surface mount loudspeaker SM42T-WH4
- Remote wall controller AT35D1
- AA35G
- Frequency Response: 50Hz - 20kHz
- Connector Type: Phoenix and RCA
- Output Power: 35 Watts
- Rack Units: 2 high 1/2 wide
- Height: 3.85" (98mm) Including Feet
- Width: 8.25" (210mm)
- Depth: 12.25" (311mm) Front of Knobs to Back Panel
- Shipping Weight: 8 lbs 2 oz (3.7kg)
- Safety Listed: 60065-ROHS 2006 Compliant
- Voltage Compatibility: Universal
- AT35D
- Plate Size: 1 gang
- Plate Color: White - Ivory
- Plate Type: Decora
- Power Rating: 35W
- Total Attenuation: 27dB
- Dimensions (H x W x D): 4 1/2 x 2 3/4 x 2 1/8 inches (11.43 x 6.985 x 5.3975 cm)
- Shipping Weight: 1.2 lbs (0.54 kgs)
- Safety Listed: 813, 2043
- SM42T
- Speaker Type: Surface Mount
- Sensitivity: 88dB
- Frequency Response: 115Hz - 16kHz
- Dimensions (H x D x W): 7 x 5 15/16 x 5 inches (17.78 x 15.03 x 12.7 cm)
- Shipping Weight: 5 lbs (2.27 kgs)
