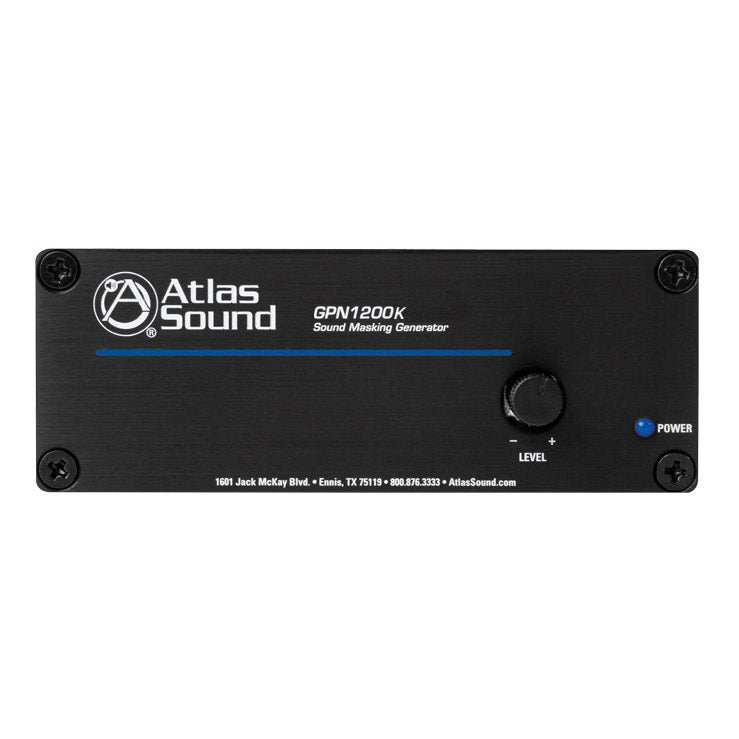

AtlasIED GPN1200K TSD Sound Masking Generator Kit

The GPN1200K is a sound masking kit solution that includes the TSD-GPN1200 sound masking generator, TSD-PS24V250MA power supply, and TSD-RMK 1RU rack mount kit.

AtlasIED GPN1200K Features

• TSD-GPN1200 Sound Masking Generator
• Balanced Line Output Plus 4W, 70.7V Output
• Global Input Voltage
• 1RU Height
• Supports up to 4 TSD Series Modules
• Adjustable Gain and Hi-Cut Filter
• TSD-PS24V250MA 24VDC Power Supply
• EQ & Gain Bypass for Line Output
• Black Brushed Aluminum Finish
• TSD-RMK
• Selectable Pink or White Noise Source
• Security Covers Included for All Rear Panel Controls

• GPN1200K TSD Sound Masking Generator Kit1

• Description Sound Masking Generator/Amplifier
• Chassis Color Black
• Chassis MaterialAluminum
• Inputs
  • Noise Generator: Internal Pink & White Selectable
• Outputs
  • Type: Qty 1, Balanced Line
  • Connection: Removable 3 Position Captive Screw, 3.5mm Spacing
  • Impedance: 300Ω Balanced, 150Ω Unbalanced
  • Line Output Level: Maximum Output 500mV
  • Type: Qty 1, Speaker Out 70V Masking Systems
  • Connection: Removable 3 Position Captive Screw, 3.5mm Spacing
  • Line Output Level: Maximum Output 4W
• Controls
  • Level Control: Qty 1, Removable Knobs with Security Covers
  • Noise Generator Select: Pink or White
  • Line Out Select: Pre or Post EQ
  • EQ Adjust: Recessed Screw Driver
• Indicators
  • Power: Blue
• Electrical
  • Toplogy: Random Analog
  • Frequency Response: 20Hz - 20kHz Line Out Pre EQ Only
  • EQ Filter: High Cut, Variable, 1kHz - 7kHz/6dB
• Mounting
  • Velcro: Industrial Grade, Included
  • Brackets: Qty 2, Included
  • TSD-RMK: Optional 1 RU Rack Mount Panel
  • Cable Retainer: Qty 1
• Power Requirements
  • 24VDC: 250mA
  • Average Power Consumption Current: 100mA
  • Average Power Consumption VA Watts: 2.4W
• Dimensions (H x W x D) 1.5 x 4 x 2.5 inches (39 x 101 x 70 mm)
• Weight 6 oz (0.165 kg)
