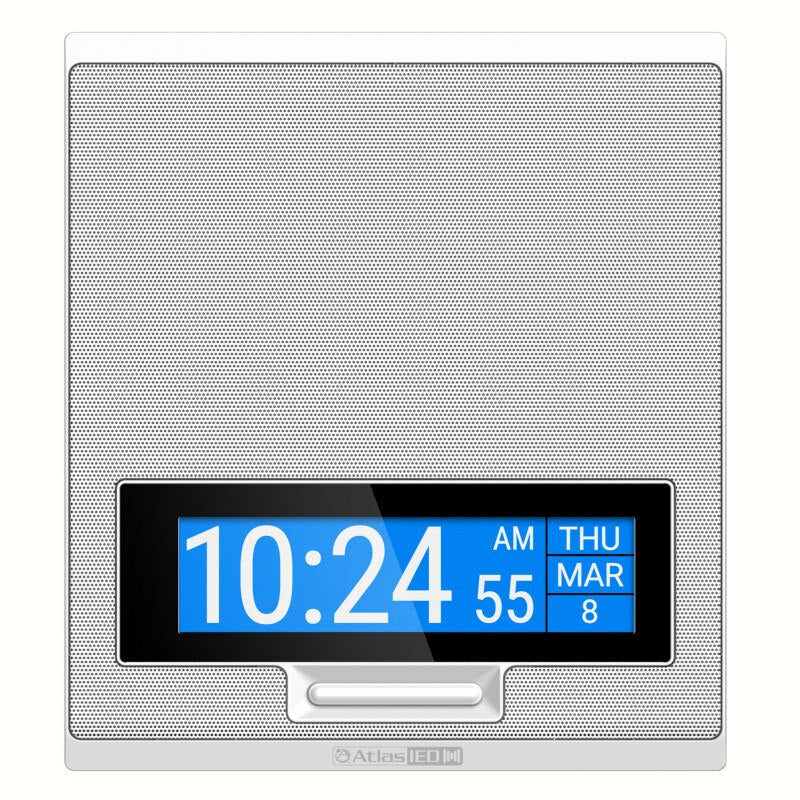

AtlasIED IP-SDMF Wall Mount IP Speaker Endpoint

SoundPro Item: 87855

MPN: IP-SDMF

Description
Specifications
Documentation
Questions & Answers

The AtlasIED IPX series IP-SDMF indoor wall mount IP speaker with display and flasher leverage the VoIP Communication solution to extend tele-presence with enhanced audio. AtlasIED IP-SDMF registers as a communication endpoint directly within InformaCast, and Revolution Advanced Notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, & scheduled announcements, while leveraging the WAN/LAN Network Architecture.

When used within a Cisco Environment, these same IP speakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

AtlasIED IP-SDMF Features

Dynamic or Static IP Address
IEEE802.3 10/100Base-T Ethernet
IEEE 802.1q Tagging
IEEE 802.3aT Compliant
VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)
Auto Provisioning: DHCP Option 66, 150, or TFTP Server or DHCP Option 72 for HTTP Server
Auto Registration: SLP for InformaCast or DHCP Option 72 for Revolution or GCK
Static Configuration: HTTP GUI for Static Configuration or Cisco SRST
Integrated Amplifier 15-Watt Total Power: Primary Speaker Output 8 ohm
Aux Audio Line-In Unbalanced (2.8Vpp 10K)
Aux Audio Line-Out Unbalanced (2.8Vpp 10K)
2 General Purpose Inputs
PoE+Enabled
1 General Purpose Output (2A @ 30 VDC)
Phone/Night Loud Ringer
External Power Supply Option
