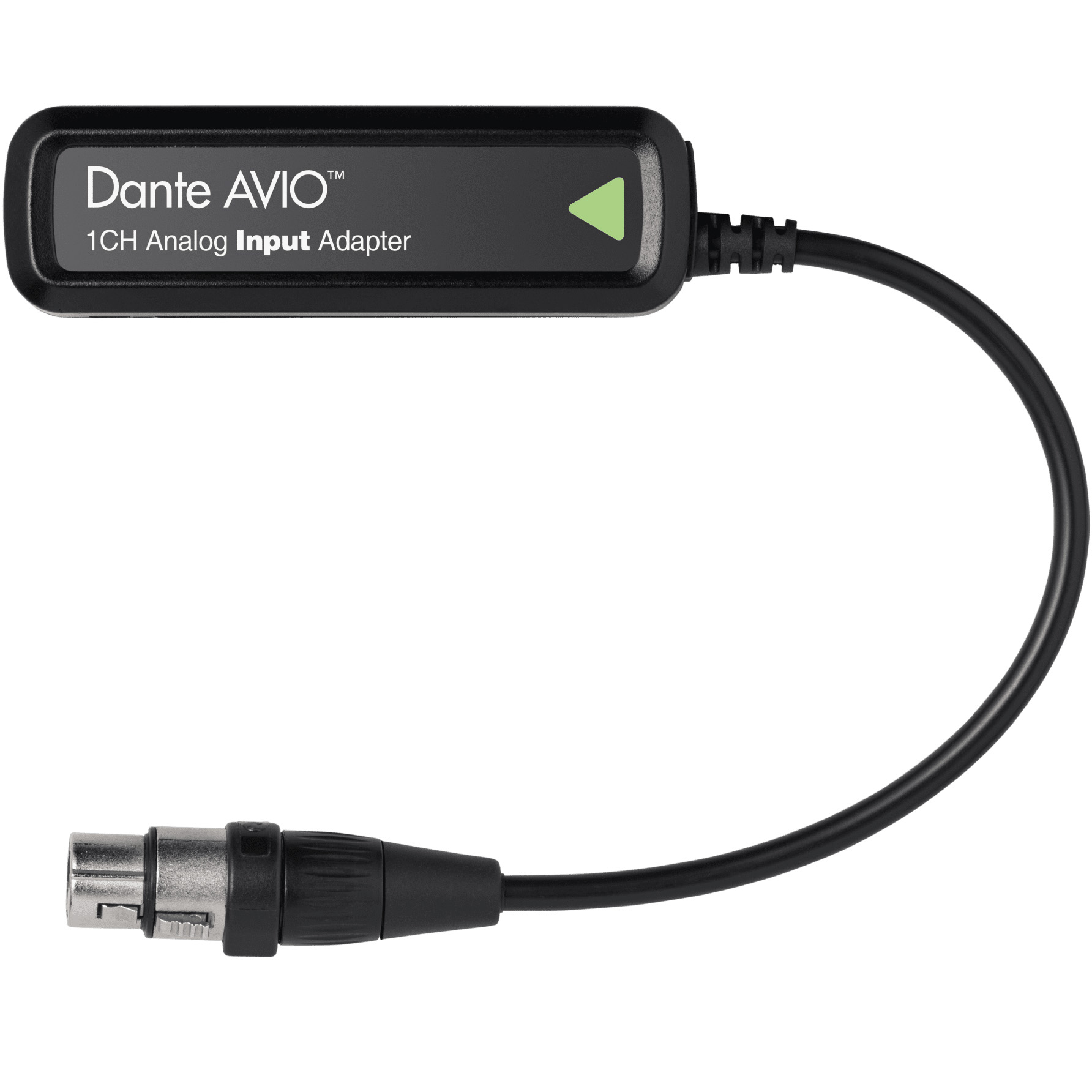

Audinate's Dante AVIO 1CH Analog Input Adapter lets you connect your favorite classic audio gear with any Dante-connected system for performance & versatility.
Adding Dante functionality to your favorite legacy audio gear, the Dante AVIO 1CH Analog Input Adapter from Audinate gives you the best of both worlds in a handheld, plug-and-play unit. Achieve the interoperability, performance efficiency, and easy scalability that only networking can bring. The Dante AVIO 1CH Analog Input Adapter is affordable, compact, and durable—the perfect addition to any audio pro’s toolbox for both the permanent studio and touring needs.
Audinate Dante AVIO 1CH Analog Input Adapter Features
- Plug & play operation for easily adding this into your Dante setup
- Connect stage DI boxes and keyboard instruments directly to a Dante network
- Built for the road, so you can take your network with you
- Sample rates up to 96 kHz
- 16, 24 and 32-bit audio support
- Excellent dynamic range, SNR and THD performance
- Configurable gain / attenuation
- Dante Audio over IP and AES67 RTP transport formats
- Power over Ethernet (PoE) support
- Dante Domain Manager ready
- 1 Channel Version
- Connect legacy mixers and consoles to a Dante network
- Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
- Dante AVIO 1-channel Analog Input Adapter1
- Audio Channels1 input
- Max signal level (balanced)+24dBu / +4dBu / 0dBu 0dBV / -10dBV
- Frequency Response20Hz to 20kHz (-/+0.5dB)
- Impedance20k Ohm balanced; 10k Ohm unbalanced
- Dynamic Range>100dB
- Signal to Noise Ratio>100dB
- Total Harmonic Distortion<0.01 at +4dBu
- ConnectorsRJ45 & XLR-F
- PowerClass1 802.3af PoE
- Power Consumption<2 watts
- Sample Rates44.1 48, 96 kHz
- Bit Depth24
- Dante Device Latency1, 2, or 5ms (configurable using Dante Controller)
- Network TransportDante Audio over IP, AES67 RTP
More about Dante
Developed by Audinate, Dante is a revolutionary, Ethernet-compliant audio networking technology that was designed specifically to meet the increasing demand for high-performance audio, particularly in live sound applications.
Dante also allows for flexible routing and offers an affordable solution to computer recording.
Dante uses a CAT5 cable and standard networking components to distribute multiple audio streams, plus integrates control data with sub-millisecond latency.
Audinate's Dante Adapters
Dante adapters make it simple to take your system to the next level without leaving your comfort zone. Use your existing analog audio line-level source gear and connect it to any Dante system using the Dante AVIO 1CH Analog Input Adapter.
Compatible gear includes analog mixing consoles, wireless mics, analog compressors and equalizers, DSPs, and much more using the Dante AVIO 1CH Analog Input Adapter in combination with other input and output adapters (other adapter models sold separately).
You can also connect stage DI boxes and keyboard instruments directly to your Dante network, effortlessly delivering even more features to your musical performance.
More about Audinate's Dante AVIO 1CH Analog Input Adapter
Boasting excellent dynamic range, SNR, and THD performance, the Dante AVIO 1CH Analog Input Adapter supports 16, 24, and 32-bit audio and delivers sample rates of up to 96 kHz.
Other features include configurable gain and attenuation, support of Power over Ethernet (PoE), built-in Dante Audio over IP and AES67 RTP transport formats, as well as easy integration with Dante Domain Manager (DDM).
