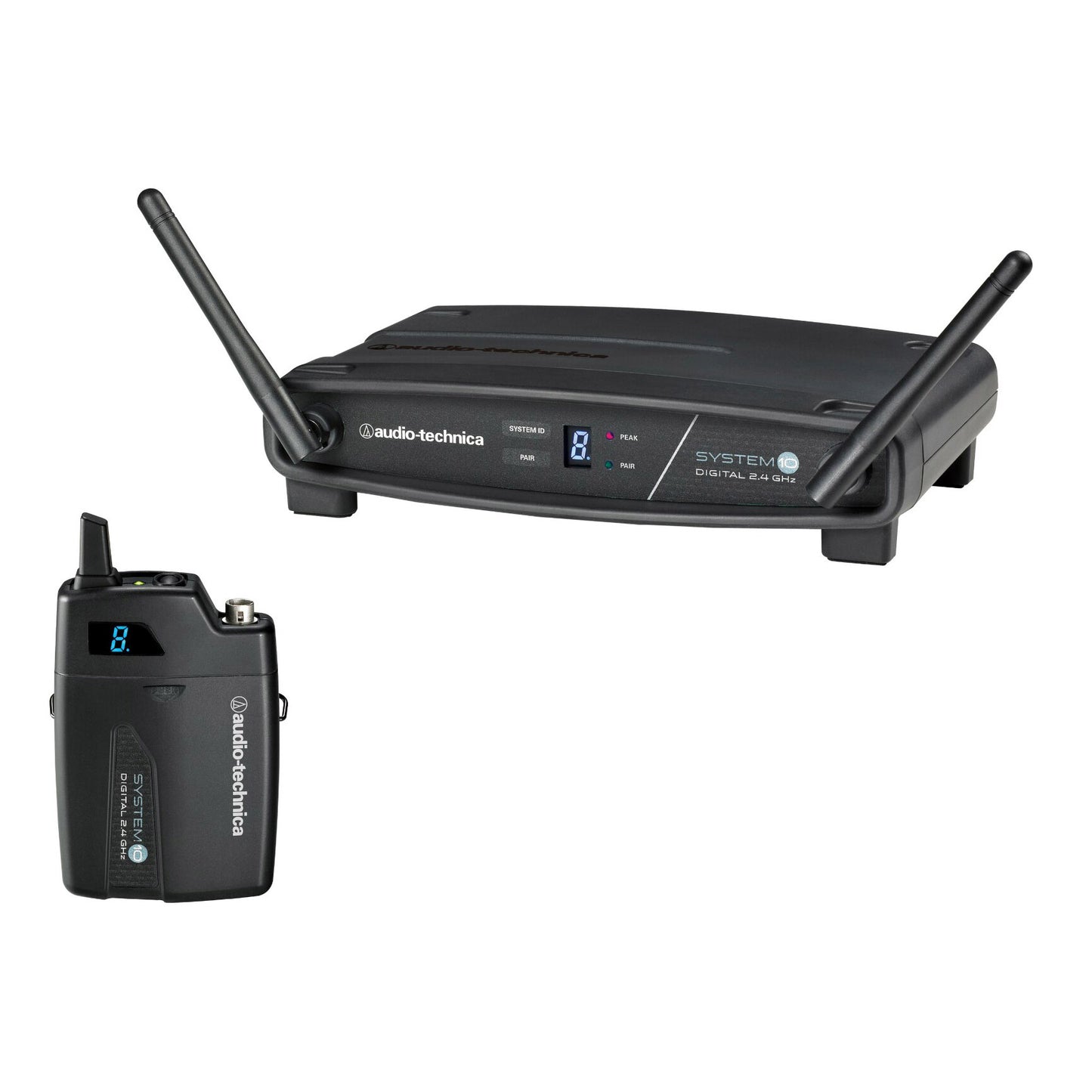

Operating in the 2.4 GHz range keeps the Audio-Technica ATW-1101 Digital Wireless Bodypack System outside of TV and DTV interference. Operating range up to 100’ allows for mobile presentation. Up to eight channels can be used simultaneously. Three levels of diversity assurance – frequency, time, and space - support and protect the clear natural sound of this wireless system.
Receiver ATW-R1100 is the command center for the Audio-Technica ATW-1101 Digital Wireless Bodypack System. Start quality audio production quickly with this receiver’s automatic frequency selection and pairing capabilities. Tabletop receiver has lightweight plastic housing, allowing multiple receivers to be stacked on top of it. Balanced XLR-type output and unbalanced ¼” TRS phone jack are on the back panel for connecting to other audio equipment. Connect to power source also from the rear panel. Receiver’s front panel features pairing switch, system ID select switch, and displays for system ID, pairing and AF peak.
Bodypack transmitter ATW-T1001 lends mobility and hands-free use to the ATW-1101 system. Quickly and easily pair the transmitter with receiver from the pairing switch in the battery compartment. Power and mute functions are combined in one easily accessible button on top of the bodypack. Aside from the power/mute button, battery compartment cover slides over internal controls to prevent accidental activation. Microphone/instrument level control provides trim adjustment, and LED indicator displays status of different controls.
Audio-Technica’s System 10 wireless system offers a stable audio solution for a variety of uses. Microphone is not included with this system. 4-pin input connector on the bodypack transmitter connects to lavaliers, headset mics, or AT-GcW instrument cables with this design. Transmitter provides DC bias voltage, so it can power condenser microphones.
Audio-Technica ATW-1101 Features
- Digital 24-bit/48 kHz wireless operation
- Operates in 2.4 GHz range
- Three levels of diversity assurance: frequency, time and space
- Automatic frequency selection
- Easy operation and set-up with instantaneous channel selection, quick pairing feature
- Balanced XLR and unbalanced 1/4" output jacks with level control
- Pairing switch for convenient pairing of transmitter to receiver
- Transmitter mute and power on/off easily accessible
- Battery-operated transmitter uses 2 AAs (not included)
- Transmitter has 4-pin input connector to pair with compatible lavalier, headset mic, or AT-GcW instrument cable
- Receiver ATW-R11001
- Bodypack transmitter ATW-T10011
- Overall System
- Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
- Frequency Response (Depending on microphone type): 20 Hz to 20 kHz
- Operating Range: 30 m (100') typical (Open range environment with no interfering signals)
- Total Harmonic Distortion: <0.05% typical
- Operating Temperature Range (Battery performance may be reduced at very low temperatures): 0° C to +40° C (32° F to 104° F)
- Handheld Transmitter
- RF Power Output: 10 mW
- Spurious Emissions: Following federal and national regulations
- Battery Type (not included): Two 1.5V AA
- Battery Life (Depending on battery type and use pattern): >7 hours (alkaline)
- Dimensions: 254.8 mm (10.03") long, 50 mm (1.97") diameter
- Net Weight (without batteries): 280 grams (9.9 oz)
- Accessories Included: AT8456a Quiet-Flex stand clamp
- Body Pack
- RF Power Output: 10 mW
- Battery Life (Depending on battery type and use pattern): >7 hours (alkaline)
- Battery Type (not included): Two 1.5V AA
- Dimensions: 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
- Input Connections
- Four-pin Locking Connector
- Pin 1: GND, Pin 2: INST INPUT,
- Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
- Net Weight (without batteries): 100 grams (3.5 oz)
- Spurious Emissions: Following federal and national regulations
- Receiver
- Receiving System: Diversity (frequency/time/space)
- Maximum Output Level
- XLR, balanced: 0 dBV
- 1/4" (6.3 mm), unbalanced: +6 dBV
- Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
- Dimensions: 190 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
- Weight: 290 grams (10.2 oz)
- Accessories Included: Power supply
