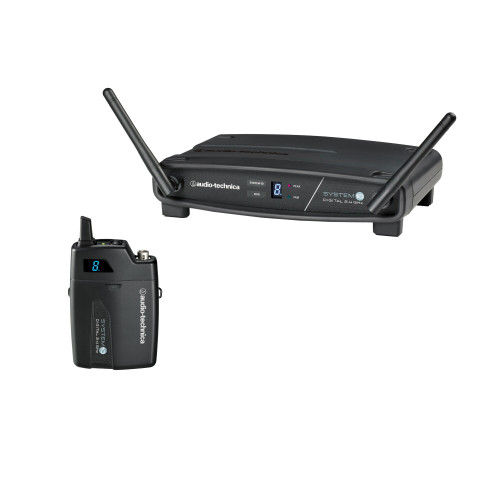

The Audio-Technica ATW-1311 Digital Wireless Bodypack System bring added versatility to the System 10 products. Receiver can mount in the chassis or up to 328 feet away for convenient operation in different settings. Optimal frequency is automatically selected at set up, and multiple receivers can link to each other for simultaneous operation. Battery-operated transmitter allows moving around while staying miked.
Two ATW-RU13 single-channel digital wireless receivers are the command center of ATW-1311. Offering 24-bit digital operation and function in the 2.4 GHz range, risk of interference is lowered in any location. Whether using one or up to ten linked receivers, setup is easy and automatic frequency selection keeps the process quick. Enjoy clear natural sound with three levels of diversity assurance: frequency diversity (extremely minimal risk of interference), time diversity (maximizes immunity to multipath interference), and space diversity (maximizes signal integrity).
Receivers can mount directly into chassis ATW-RC13 (included), or remotely mounted to the chassis using a UTP cable through the RJ45 connector on the back of the receiver. Chassis supplies AF level control, ground lift switch, unbalanced ¼” output connection, and balanced XLRM-type output connection for each receiver unit. IN/OUT RJ12 connectors enable the chassis to link to up to five other chassis, for a total of ten receivers. System ID display on the front panel indicates important system information such as RF signal strength, system ID number, transmitter battery level, and if chassis is currently linked.
Bodypack transmitter ATW-T1001 lends mobility and hands-free use to the ATW-1311 system. Quickly and easily pair the transmitter with receiver from the pairing switch in the battery compartment. Power and mute functions are combined in one easily accessible button on top of the bodypack. Aside from the power/mute button, battery compartment cover slides over internal controls to prevent accidental activation. Microphone/instrument level control provides trim adjustment, and LED indicator displays status of different controls.
Microphone is not included with this system. 4-pin input connector on the bodypack transmitter connects to lavaliers, headset mics, or AT-GcW instrument cables with this design. Transmitter provides DC bias voltage, so it can power condenser microphones.
Audio-Technica ATW-1311 Features
- Digital 24-bit/48 kHz wireless operation in the 2.4 GHz range
- Dock in chassis (ATW-RC13) or mount remotely using holder
- ¼”-20 thread socket on unit allows mounting to any device with a ¼” screw
- Automatic frequency selection
- Instantaneous channel selection, sync, and setup
- Three levels of diversity assurance: frequency, time, and space
- Half rack chassis size
- Chassis offers AF level control, ground lift switch, balanced and unbalanced output connections for each receiver unit
- 4-pin input connector on bodypack for compatible mics
- Bodypack transmitter operates on 2 AA batteries (not included)
- Receiver ATW-RU132
- Chassis ATW-RC131
- Bodypack transmitter ATW-T10012
- Receiver antennas1
- Receiver holder for remote mounting1
- AC adapter for chassis1
- Link cable for chassis1
- Rack-mount adapters for chassis1
- Joining plate for chassis linking1
- Rubber feet for chassis1
- Overall System
- Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
- Frequency Response: 20 Hz to 20 kHz (Depending on microphone type)
- Operating Range: 60 m (200') Open range env. with no interfering signals
- Total Harmonic Distortion: <0.05% typical
- Operating Temperature Range: 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
- Handheld Transmitter
- RF Power Output: 10 mW
- Spurious Emissions: Following federal and national regulations
- Battery Type: Two 1.5V AA (not included)
- Battery Life (Depending on battery type and use pattern): >7 hours (alkaline)
- Dimensions: 254.8 mm (10.03") long, 50 mm (1.97") diameter
- Net Weight (without batteries): 280 grams (9.9 oz)
- Accessories Included: AT8456a Quiet-Flex™ stand clamp
- Body Pack
- RF Power Output: 10 mW
- Battery Life (Depending on battery type and use pattern): >7 hours (alkaline)
- Battery Type: Two 1.5V AA (not included)
- Dimensions: 70.2 mm (2.76") W x 107 mm (4.21") H x 24.9 mm (0.98") D
- Input Connections
- Four-pin Locking Connector
- Pin 1: GND, Pin 2: INST INPUT,
- Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
- Net Weight (without batteries): 100 grams (3.5 oz)
- Spurious Emissions: Following federal and national regulations
- Receiver
- Receiving System: Diversity (frequency/time/space)
- Maximum Output Level: XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
- Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
- Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
- Dimensions: 209.8 mm (8.26") W x 44 mm (1.73") H x 169.3 mm (6.67") D
- Weight: 940 grams (33.2 oz)
- Accessories Included: AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet
- Output Connector: Remote Receiver Connector: RJ45
- Link Connector: RJ12
