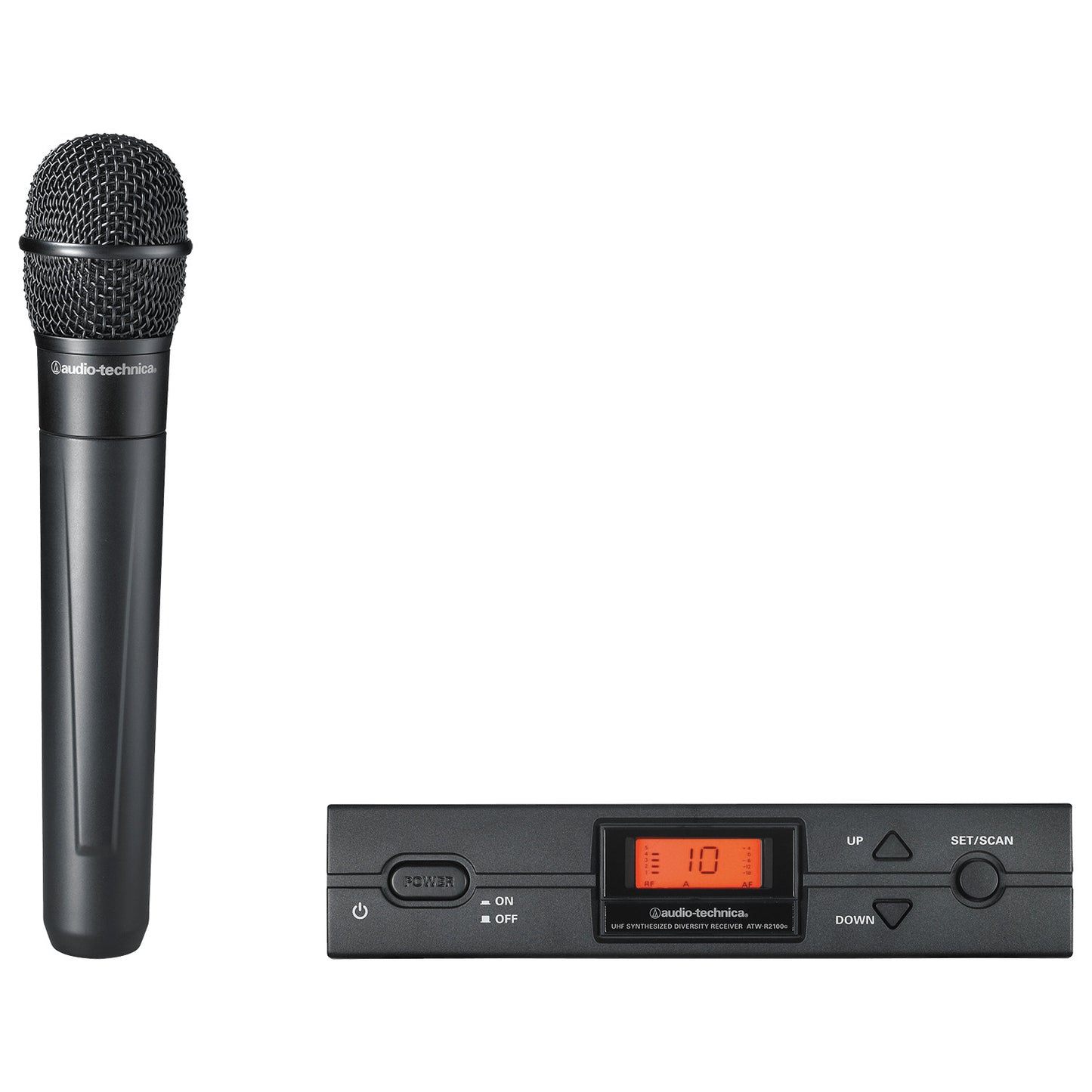

This wireless handheld system includes a ATW-R2100c receiver and ATW-T220c handheld cardioid dynamic microphone/transmitter.
Audio-Technica ATW-2120CI Features
- Includes a ATW-R2100c receiver and ATW-T220c handheld cardioid dynamic microphone/transmitter
- ATW-R2100c receiver1
- ATW-T220c handheld cardioid dynamic microphone/transmitter1
- Flexible UHF antennas2
- AC adapter (country dependent)1
- Rack-mount adapters2
- AT8456a Quiet-Flex™ stand clamp1
- System
- Operating Frequencies: Band I: 487.125 to 506.500 MHz
- Modulation Mode: FM
- Maximum Deviation: ±40 kHz
- Frequency Response: 100 Hz to 15 kHz (+1 dB, -3 dB)
- Operating Range: 100 m (300'), typical (Open range environment with no interfering signals.)
- Total Harmonic Distortion: < 1% (at 1 kHz, ±20 kHz deviation)
- Operating Temperature Range
- 5ºC to 45ºC (41ºF to 113ºF)
- Battery and LCD performance may be reduced at very low temperatures.
- Number Of Channels: 10 total
- Notes
- Fourth-generation 2000 Series (“c” version) components:
- ATW-R2100c receiver
- ATW-T210c body-pack transmitter
- ATW-T220c cardioid dynamic microphone/transmitter
- Third-generation 2000 Series (“b” version) components:
- ATW-R2100b receiver
- ATW-T210b body-pack transmitter
- ATW-T220b cardioid dynamic microphone/transmitter
- Second-generation 2000 Series (“a” version) components:
- ATW-R2100a receiver
- ATW-T210a body-pack transmitter
- ATW-T220a cardioid dynamic microphone/transmitter
- First-generation 2000 Series (original) components:
- ATW-R2100 receiver
- ATW-T210 body-pack transmitter
- ATW-T220 cardioid dynamic microphone/transmitter
- CONSUMER ALERT Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
- Fourth-generation 2000 Series (“c” version) components:
- Handheld Transmitter
- RF Power Output
- High: 30 mW
- Low: 10 mW (switchable), at 50 ohms
- Spurious Emissions: Following federal and national regulations
- Microphone Element: Dynamic cardioid
- Battery Type
- Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
- Recharging power for NiMH batteries (with ATW-CHG2)
- U.S./Canada/Latin America: 3.2 V DC, 230 mA x2
- Other world areas: 3.2 V DC, 320 mA x2
- Battery Life
- High: 7 hours (alkaline)
- Low: 9 hours (alkaline)
- Depending on battery type and use pattern.
- Dimensions: 232 mm (9.13") long, 48 mm (1.89") diameter
- Net Weight: 252 g (8.9 oz), without batteries
- RF Power Output
- Bodypack
- RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms
- Battery Life
- High: 7 hours (alkaline)
- Low: 9 hours (alkaline)
- Depending on battery type and use pattern.
- Battery Type
- Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
- Recharging power for NiMH batteries (with ATW-CHG2)U.S./Canada/Latin America: 3.2 V DC, 230 mA x2Other world areas: 3.2 V DC, 320 mA x2
- Dimensions: 66 mm (2.6") W x 22.5 mm (0.89") D x 92.3 mm (3.63") H
- Input Connections
- Four-pin Locking Connector
- Pin 1: GND
- Pin 2: INST INPUT
- Pin 3: MIC INPUT
- Pin 4: DC BIAS +9V
- Net Weight: 81 g (2.9 oz), without batteries
- Spurious Emissions: Following federal and national regulations
- Receiver
- Receiving System: True diversity
- Image Rejection: 60 dB nominal, 55 dB minimum
- RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
- Maximum Output Level: XLR, balanced: +9 dBV, ¼" (6.3 mm), unbalanced: +4 dBV
- Antenna Input
- BNC-type, 50 ohms
- Bias voltage 12V DC, 60 mA, each
- Power Requirements: 12-18V DC, 500 mA
- Dimensions: 210 mm (8.27") W x 162.2 mm (6.39") D x 44 mm (1.73") H,br>Not including BNC connectors or feet.
- Weight: 1 kg (35.3 oz), without accessories
- Audio Output Attenuator (ATTN): Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB
