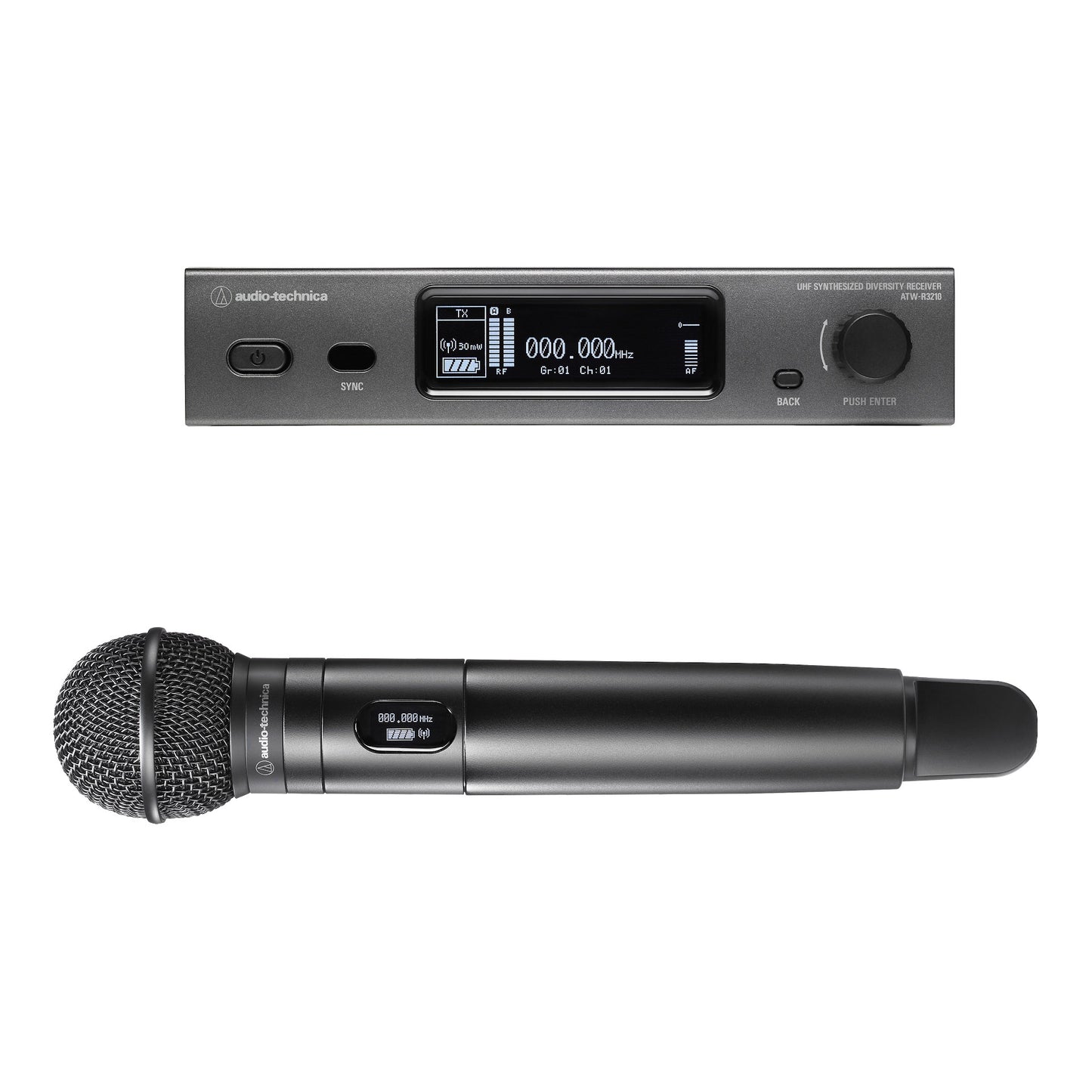

Audio-Technica ATW-3212/C510 Wireless Handheld Microphone System

Bring power and flexibility to your sound with wireless system ATW-3212/C510 in Audio-Technica’s 3000 Series. Receiver and transmitter include easily visible display screens to stay aware of settings. Operating range of 300’ (line of sight) between receiver and transmitter equips you with a very mobile wireless solution. The Audio-Technica ATW-3212/C510 Wireless Handheld Microphone System is a preferred choice among public speakers, presenters, educators, worship leaders, and more.

Central to this wireless system is receiver ATW-R3210, which operates on 12V DC. Front panel receiver display indicates information to stay aware of system status. The receiver has rugged housing and takes up a standard 1U 19” rack mount, making it work well for professional tours, one of the 3000 Series most common uses.

Scan feature establishes desired frequencies, and IR sync functionality pairs the receiver and transmitters to the same frequency. 60 MHz tuning bandwidth in one of two available frequency bands allows maximum versatility in congested RF environments, with DE2 at 470-530 MHz and EE1 at 530-590 MHz. In an open-range environment without interfering signals, the receiver can host up to 40 simultaneous channels per band. Auto squelch feature automatically adjusts noise setting, maximizing operating range while minimizing interference. True diversity reception provides better sound quality and reduces the potential for dropouts.

Experience fine-tuned control of your sound settings through multiple features on handheld battery-operated transmitter ATW-T3202. Controls can be locked and are covered to prevent accidental activation. High and low level RF output settings and choice of two different frequency ranges provide complete coverage over the receiver’s bandwidth. Multifunction button can be programmed to turn off RF transmission or switch to a preselected backup frequency if interference occurs. Gain setting can be adjusted in 2 dB increments, and a selectable high-pass filter eliminates ambient noise. Microphone capsule on the transmitter is a cardioid dynamic capsule. It is ideal for speaking in more controlled sound environments.

Audio-Technica ATW-3212/C510 Features

• Choose frequency band DE2 (470-530 MHz) or EE1 (530-590 MHz)
• Multifunction button on the transmitter can be used to switch to a backup frequency (on both transmitter and receiver) if interference occurs
• True Diversity operation reduces dropouts
• Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Frequency scan and IR sync functionality for ease of setup
• Dual-mode receiver display can switch between standard or performance view
• OLED screens on receiver and transmitter
• Handheld transmitter offers extremely low handling noise
• Handheld transmitter has an industry-standard thread mount for interchangeable capsules
• Transmitter can be charged with ATW-CHG3 dock if NiMH batteries are used
• Antenna power available for powered antennas and other in-line RF devices
• Ground-lift switch helps eliminate audible hum caused by ground loops
• Balanced and unbalanced audio output jacks

• Receiver ATW-R3210
• Handheld Transmitter ATW-T32021
• Cardioid Dynamic Capsule ATW-C5101
• Flexible UHF antennas2
• AC adapter (country dependent)1
• Set of rack-mount adapters1
• Two Year Limited End User Warranty1

• Overall System
  • Operating Frequencies
    • Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
    • Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
    • Band EF1: 590.000 to 649.975 MHz (2400 frequencies)
    • Band FG1: 650.000 to 699.875 MHz (1996 frequencies)
  • Operating Frequencies
    • Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
    • Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
    • Band EF1: 590.000 to 649.975 MHz (2400 frequencies)
    • Band FG1: 650.000 to 699.875 MHz (1996 frequencies)
    • Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.
  • Minimum Frequency Step: 25 kHz
  • Modulation Mode: FM
  • Maximum Deviation
    • ATW-T3201: ±38 kHz (THD:10%)
    • ATW-T3202: ±36 kHz (THD:10%)
  • Frequency Response
    • ATW-T3201: 31 Hz to 15,500 Hz
    • ATW-T3202: 25 Hz to 16,700 Hz
    • Frequency response depends on attached microphone element
  • Operating Range 100 m (328'), Open range environment with no interfering signals
  • Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation)
  • Operating Temperature Range: -5° C to +45° C (23° F to 113° F)
  • Simultaneous Use: 40 Channels per band*
    • For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent
• Handheld Transmitter
  • RF Power Output High: 30 mW, Low: 10 mW (switchable), at 50 ohms
  • Spurious Emissions: Following Federal and National Regulations
  • Microphone Capsule: Interchangable industry standard thread
  • Battery Type Two: 1.5V AA, not included
  • Battery Life
    • High: 8 hours (alkaline), Low: 9 hours (alkaline)
    • High: 9 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh)
    • Depending on battery type, usage, and environmental conditions.
  • Dimensions
    • ATW-T3202 (without capsule): 7.6 inches (193 mm) long, 1.46 inches (37 mm) maximum diameter
    • ATW-T3202/C510: 10.43 inches (265 mm) long, 2.13 inches (54 mm) maximum diameter
    • ATW-T3202/C710: 10.67 inches (271 mm) long, 1.97 inches (50 mm) maximum diameter
  • Net Weight
    • ATW-T3202 (without capsule): 7.1 oz (200 g), without batteries
    • ATW-T3202/C510: 11.6 oz (330 g), without batteries
    • ATW-T3202/C710: 11.1 oz (314 g), without batteries
• Body Pack
  • RF Power Output High: 30 mW, Low: 10 mW (switchable), at 50 ohms
  • Battery Life
    • High: 8 hours (alkaline), Low: 9 hours (alkaline)
    • High: 9 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh)
    • Depending on battery type, usage, and environmental conditions.
  • Battery Type: Two 1.5V AA, not included
  • Dimensions (W x D x H): 2.52 x 3.22 x 0.91 inches (64 x 82 x 23 mm)
  • Input Connections
    • cH-style screw-down 4-pin connector
    • Pin 1: GND
    • Pin 2: INST INPUT
    • Pin 3: MIC INPUT
    • Pin 4: DC BIAS +5V
  • Net Weight: 3.6 oz (102 g), without batteries
  • Spurious Emissions: Following Federal and National Regulations
  • High-pass (low-freq. roll-off): 125Hz, 12dB/octave
• Receiver
  • Receiving System: True Diversity
  • Image Rejection: 60 dB nominal
  • RF Sensitivity: 20 dBuV at 60 dBA S/N ratio (50 ohms termination)
  • Maximum Output Level
    • XLR, balanced: +14 dBV
    • 6.3 mm (1/4"), unbalanced: +8 dBV
  • Antenna Input: BNC-type, 50 ohms
  • Antenna Power: 12 V DC, 160 mA (combined)
  • Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
  • Dimensions (W x D x H): 8.27 x 7.52 x 1.71 inches (210 x 191 x 43.4 mm )
  • Weight: 38.8 oz (1100g), without accessories
