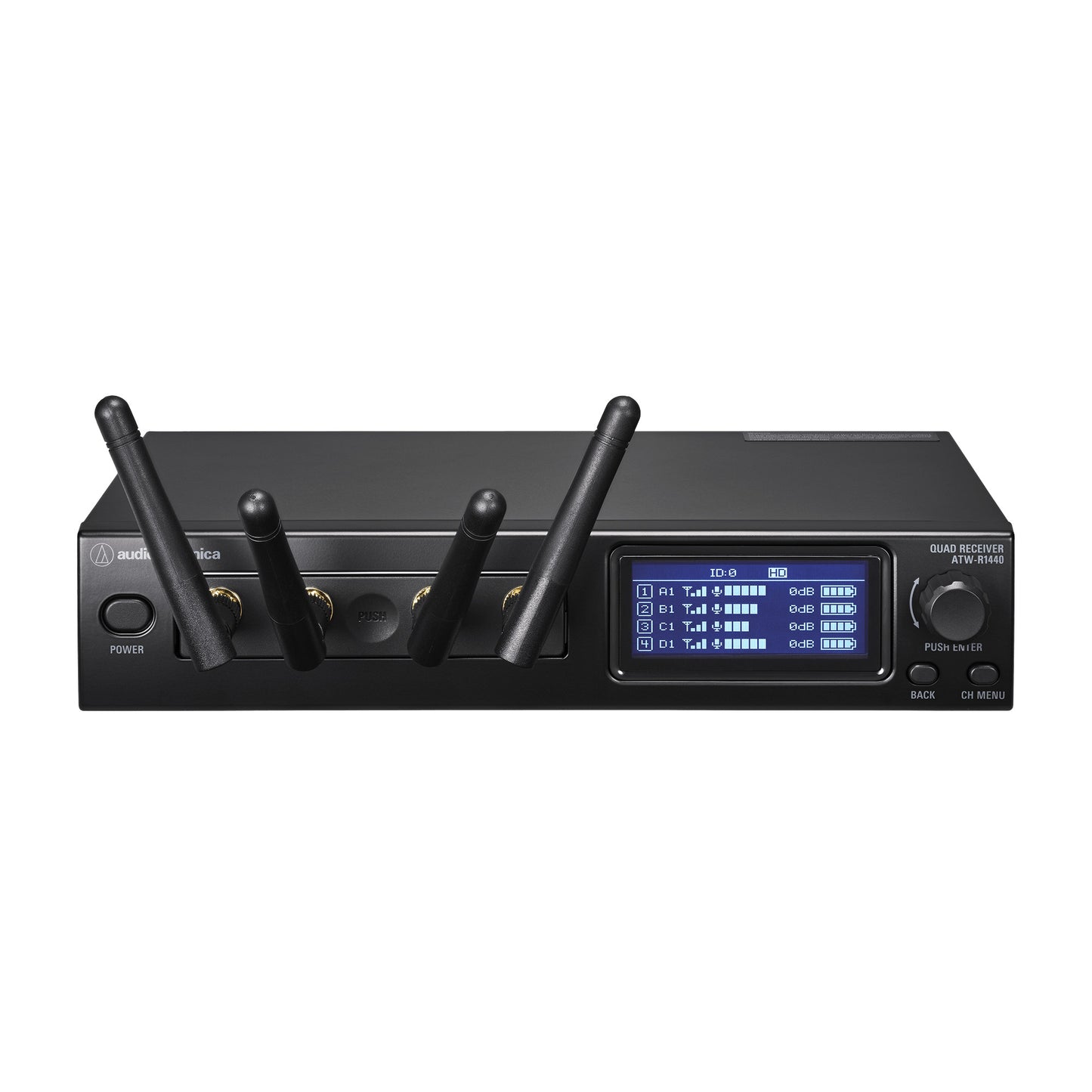

The ATW-R1440 from Audio-Technica 's System 20 PRO series is a four-channel receiver.
Audio-Technica ATW-R1440 Features
- Half-rack chassis capable of receiving up to four transmitters
- Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
- Switch between Standard (10 channels) and HD (20 channels) modes
- Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
- Up to five chassis can be linked and used simultaneously
- Monitor transmitter status, audio level, remaining battery time, and other information in A-T Wireless Manager
- Auto-lock function prevents unintended operations
- ATW-R1440 System 20 PRO 4-Channel Receiver1
- Operating Frequencies 2,402～2,480MHz
- Dynamic Range 120dB (A-weighted), typical
- Total Harmonic Distortion< 0.05%, typical
- Maximum Simultaneous Use (recommended)
- Standard: 10 channels
- HD mode: 20 channels
- (It depends on the region and environment.)
- System Frequency Response20 to 20,000Hz (Varies depending on the microphone to be installed.)
- Delay
- Standard: 2.8ms
- HD mode: 6.7ms
- Audio Sampling Rate
- Standard: 24bit/48kHz
- HD mode: 24bit/48kHz
- Encryption MethodAES128
