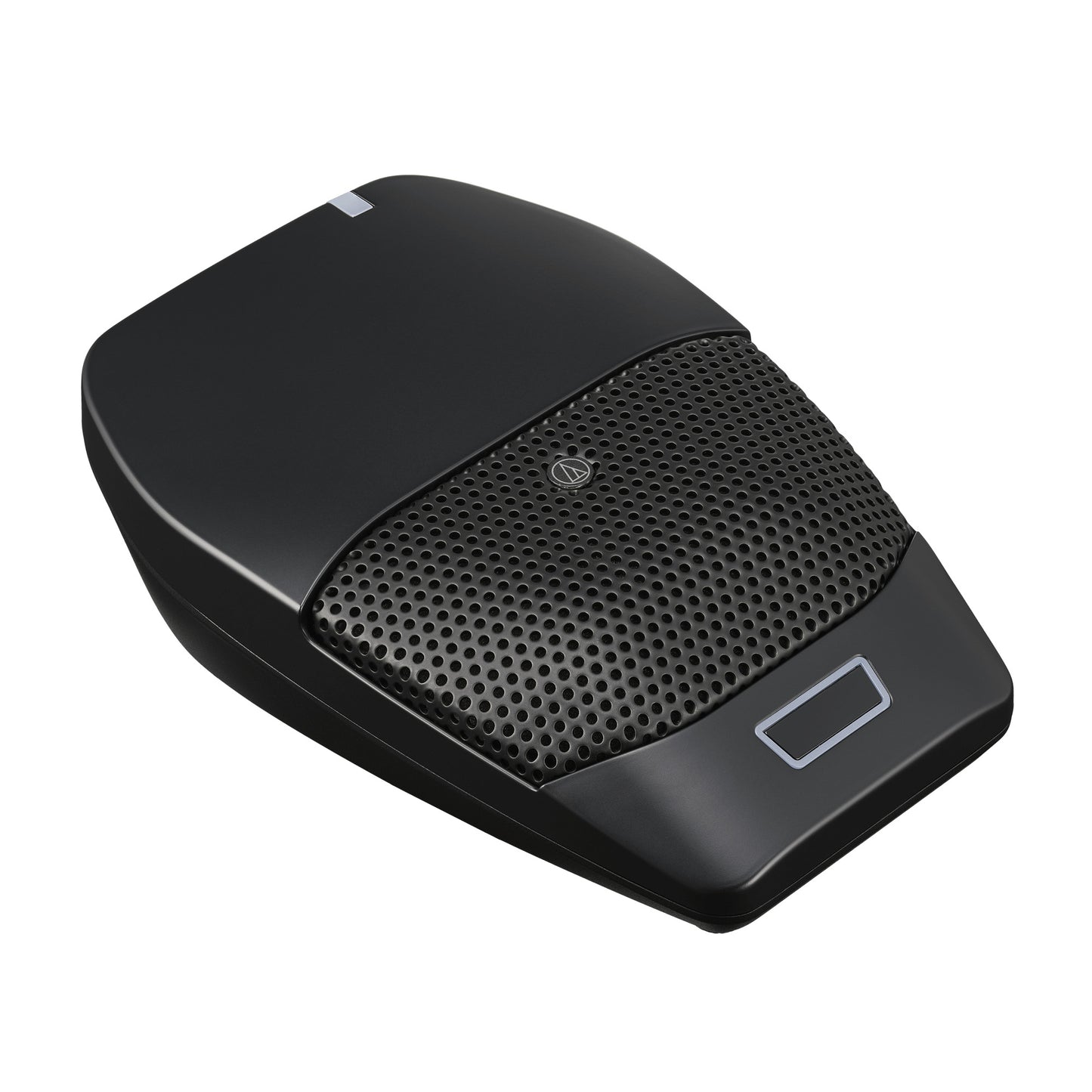

The ATW-T1406 boundary microphone transmitter is from Audio-Technica's System 20 PRO series.
Audio-Technica ATW-T1406 Features
- Cardioid polar pattern
- Long-lasting internal lithium-ion batteries for all-day transmitter use
- Selectable mute operation (toggle, touch-to-talk, or touch-to-mute)
- Two LED options: standard mode and conference mode
- OLED display
- USB Type-C™ connector for charging (transmitter can be used while charging)
- ATW-T1406 System 20 PRO Boundary Microphone1
- Operating Frequencies2,402～2,480MHz
- Dynamic Range 120dB (A-weighted), typical
- Total Harmonic Distortion < 0.05%, typical
- Maximum Simultaneous Use (recommended)
- Standard: 10 channels
- HD mode: 20 channels
- (It depends on the region and environment.)
- System Frequency Response 20 to 20,000Hz (Varies depending on the microphone to be installed.)
- Delay
- Standard: 2.8ms
- HD mode: 6.7ms
- Audio Sampling Rate
- Standard: 24bit/48kHz
- HD mode: 24bit/48kHz
- Encryption Method AES128
