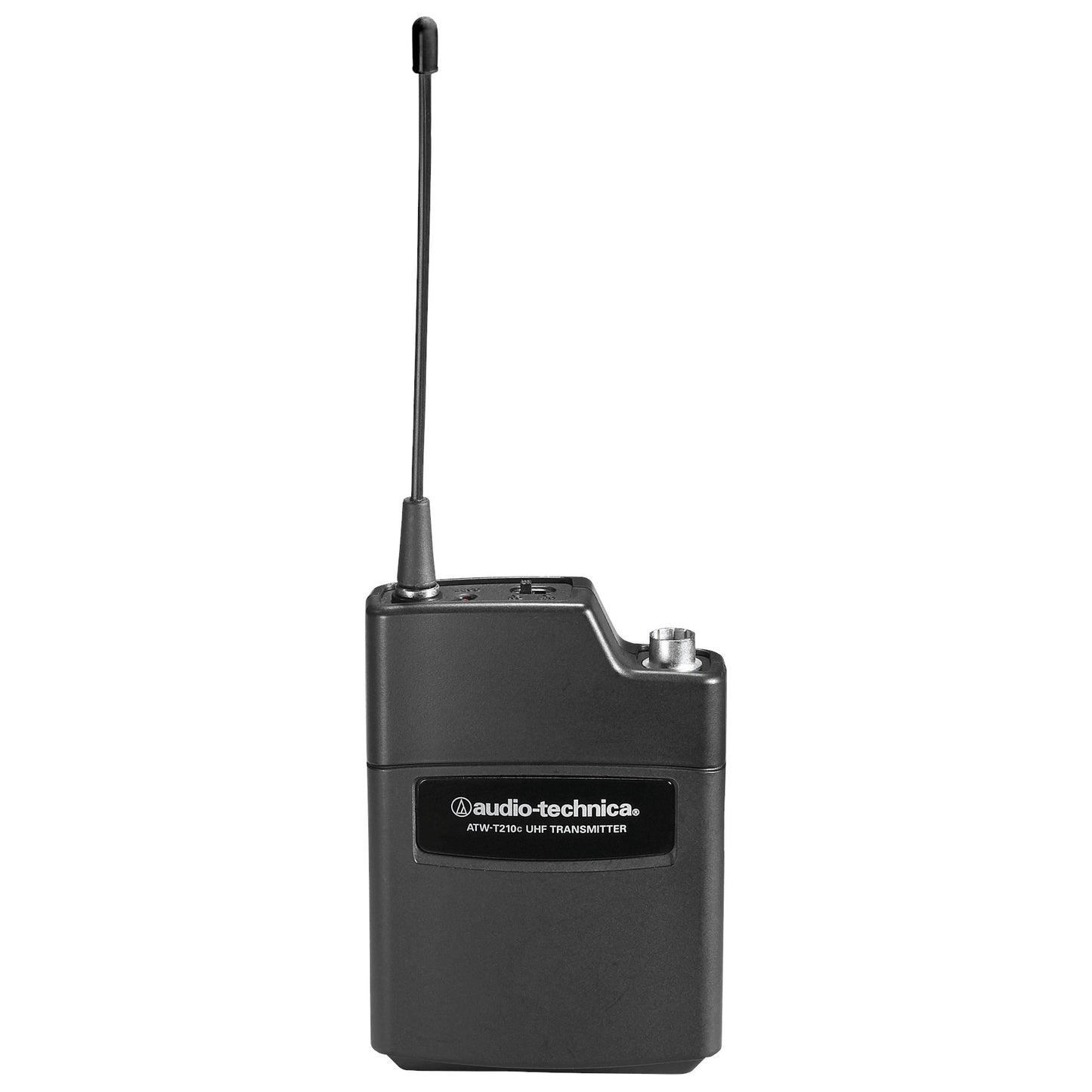

The ATW-T210CI is a wireless bodypack transmitter for use with Audio-Technica's 2000 Series wireless systems.

Audio-Technica ATW-T210CI Features

Bodypack transmitter
For use with 2000 Series wireless systems

ATW-T210CI 2000 Series Wireless Bodypack Transmitter1
Flexible UHF antennas2
AT8456a Quiet-Flex™ stand clamp2
AC adapter (country dependent)1
Rack-mount adapters1

System
- Operating Frequencies Band I : 487.125 to 506.500 MHz
- Modulation Mode FM
- Maximum Deviation ±40 kHz
- Frequency Response 100 Hz to 15 kHz (+1 dB, -3 dB)
- Operating Range 100 m (300'), typical Open range environment with no interfering signals.
- Total Harmonic Distortion <1% (at 1 kHz, ±20 kHz deviation)
- Operating Temperature Range
  - 5ºC to 45ºC
  - 41ºF to 113ºF
  - Battery and LCD performance may be reduced at very low temperatures.
  - Number Of Channels 10 total
  - Notes
    - Fourth-generation 2000 Series (“c” version) components:

      ATW-R2100c receiver

      ATW-T210c body-pack transmitter

      ATW-T220c cardioid dynamic microphone/transmitter
    - Third-generation 2000 Series (“b” version) components:

      ATW-R2100b receiver

      ATW-T210b body-pack transmitter

      ATW-T220b cardioid dynamic microphone/transmitter
    - Second-generation 2000 Series (“a” version) components:

      ATW-R2100a receiver

      ATW-T210a body-pack transmitter

      ATW-T220a cardioid dynamic microphone/transmitter
    - First-generation 2000 Series (original) components:

      ATW-R2100 receiver

      ATW-T210 body-pack transmitter

      ATW-T220 cardioid dynamic microphone/transmitter
    - CONSUMER ALERT: Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
Handheld Transmitter
- RF Power Output
  - High: 30 mW
  - Low: 10 mW (switchable), at 50 ohms
- Spurious Emissions: Following federal and national regulations
- Microphone Element: Dynamic cardioid
- Battery Type
  - Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
  - Recharging power for NiMH batteries (with ATW-CHG2)
  - U.S./Canada/Latin America: 3.2 V DC, 230 mA x2
  - Other world areas: 3.2 V DC, 320 mA x2
- Battery Life
  - High: 7 hours (alkaline)
  - Low: 9 hours (alkaline)
  - Depending on battery type and use pattern.
- Dimensions: 232 mm (9.13") long, 48 mm (1.89") diameter
- Net Weight: 252 g (8.9 oz), without batteries
Beltpack
- RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms
- Battery Life
  - High: 7 hours (alkaline)
  - Low: 9 hours (alkaline)
  - Depending on battery type and use pattern.
- Battery Type
  - Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)
  - Recharging power for NiMH batteries (with ATW-CHG2)U.S./Canada/Latin America: 3.2 V DC, 230 mA x2Other world areas: 3.2 V DC, 320 mA x2
- Dimensions: 66 mm (2.60") W x 22.5 mm (0.89") D x 92.3 mm (3.63") H
- Input Connections
  - Four-pin Locking Connector
  - Pin 1: GND
  - Pin 2: INST INPUT
  - Pin 3: MIC INPUT
  - Pin 4: DC BIAS +9V
- Net Weight: 81 g (2.9 oz), without batteries
- Spurious Emissions: Following federal and national regulations
Receiver
- Receiving System: True diversity
- Image Rejection: 60 dB nominal, 55 dB minimum
- RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
- Maximum Output Level: XLR, balanced: +9 dBV, ¼" (6.3 mm), unbalanced: +4 dBV
- Antenna Input
  - BNC-type, 50 ohms
  - Bias voltage 12V DC, 60 mA, each
- Power Requirements: 12-18V DC, 500 mA
- Dimensions: 210 mm (8.27") W x 162.2 mm (6.39") D x 44 mm (1.73") H,br>Not including BNC connectors or feet.
- Weight: 1 kg (35.3 oz), without accessories
- Audio Output Attenuator (ATTN): Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB
