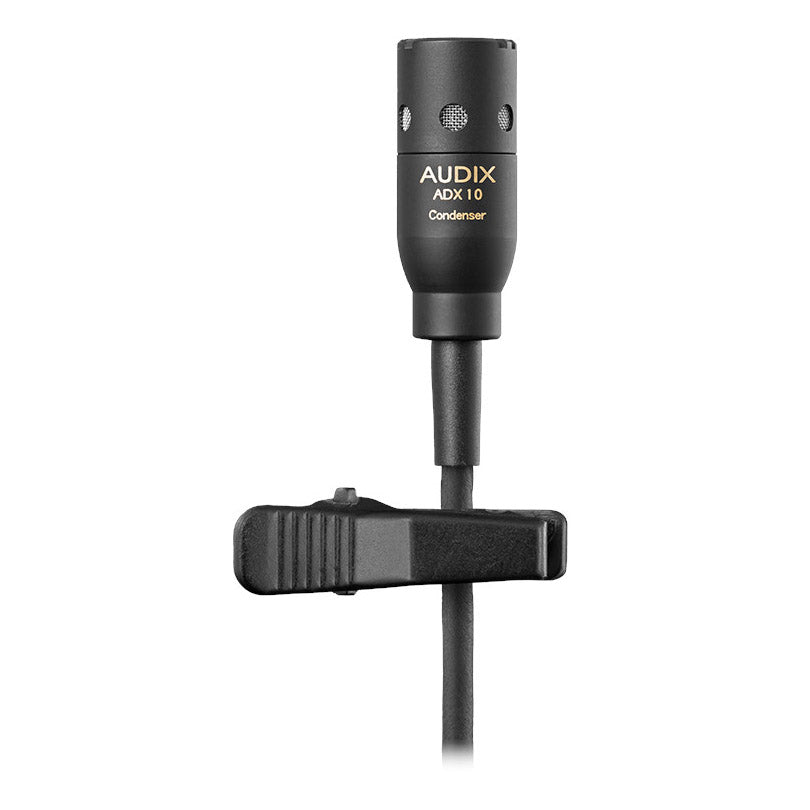

Audix ADX10 Condenser Lavalier Microphone

The ADX10 is a miniaturized condenser microphone designed for lavalier applications such as speech, presentation, and theatrical production. The ADX10 has the ability to accurately capture and reproduce vocals from a comfortable distance of 4″- 8″. This mic is clear, resistant to feedback, and easy to use.

Designed with a uniformly controlled cardioid polar pattern, the ADX10 helps to isolate the area or section being miked from other vocals or instruments on stage. The ADX10 has a smooth, accurate frequency range of 50 Hz – 18 kHz. This mic is lightweight, low profile, and has a natural sound with an exceptional sound response.

Primarily for use with Audix wireless systems, the ADX10 cardioid condenser microphone includes a tie-clip and a 3′ attached cable terminating to a mini-XLRf connector.

Audix ADX10 Features

• Accurately captures and reproduces vocals from 4" - 8"
• Resistant to feedback
• Uniformly controlled cardioid polar pattern
• Smooth, accurate frequency range
• Lightweight and low profile
• Natural sound with an exceptional sound response
• Primarily for use with Audix wireless systems
• Ideal for speech, presentation, and theater use

• ADX10 condenser lavalier microphone1
• MC10L tie clip1
• WS10 external foam windscreen1
• P1 carrying pouch1

• Transducer Typepre-polarized condenser
• Frequency Response50Hz - 18,000Hz
• Polar Patterncardioid
• Output Impedance250 Ω
• Sensitivity5 mV/Pa @1k
• Equivalent Noise Level<29 dB (A-weighted)
• Signal to Noise Ratio>65 dB
• Max. SPL≥120 dB
• Power Requirements9-52 V phantom
• Connectorshielded 3' terminating to a miniature 3 pin female XLR connector
• Polaritypositive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
• Materials / Finishmachined brass / black finish
• Weight0.74 oz (21g)
• Length0.98"
