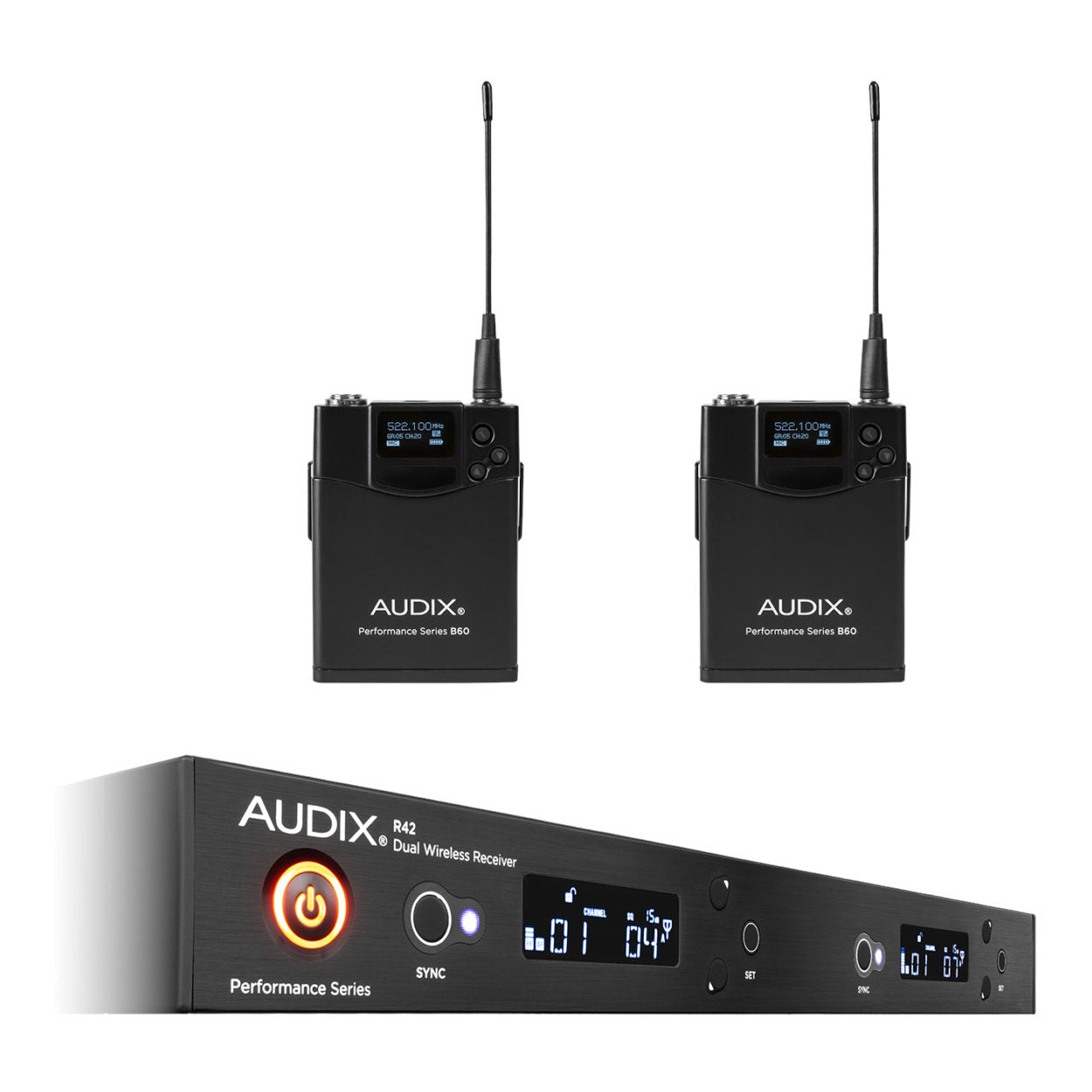

Audix AP42 BP Wireless Microphone Bodypack System

This value-packed AP42 BP Wireless Microphone Bodypack System is a diversity system featuring the versatile B60 bodypack transmitter. It may be used with any lavalier, head-worn, or instrument microphone in the Audix line, as well as guitar and bass.

Included are a rack mount kit and BNC cables for front mounting antennas.

Available Frequency Bands

• A = 522 MHz – 554 MHz
• B = 554 MHz – 586 MHz

Audix AP42 BP Features

• 32 MHz Wide spectrum tuning receiver
• 64 MHz Wide spectrum transmitter

• R42 32 MHz Two Channel Diversity Receiver1
• B60 Bodypack Transmitters2
• Antennas2
• Audio Cable1
• AA Batteries4
• Power Supply1
• User Guide1
• Rackmount Hardware
• BNC Cables2

• R42 Receiver
  • Frequency Range: A: 522 MHz - 554 MHz / B: 554 MHz - 586 MHz
  • Bandwidth: 32 MHz
  • Compatible Systems: Up to 16 systems (R41) / 8 systems (R42) simultaneous use
  • Switchable Frequencies: 106 Pre-coordinated frequencies
  • Frequency Response: 45 Hz – 18 kHz
  • Compander System: 2:1
  • Pilot Tone: 32 kHz
  • Receiving System: Single tuner, antenna diversity
  • Signal-to-Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
  • Total Harmonic Distortion: ≤0.7% (33 kHz deviation at 1 kHz)
  • Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
  • Audio Output (Level=6)
    • Balanced: -12 dbv @ 25 kHz deviation, 600 ohm load
    • 1/4": -18 dbv @ 25 kHz deviation, 10 ohm load
  • Output Connectors: 1/4", XLR
  • Audio Level Adjustment: -12 to +9 in 3 db steps
  • Range: 300' (91m)
  • Power Supply: 100 - 240 V / 50 - 60 Hz, 12 V DC, 1A
  • Dimensions (WxDxH): 15.98x8.23x1.73" (406x209x44mm)
  • Net Weight: 4.75 lbs (2.1kg)
• B60 Bodypack Transmitter
  • RF Power Output: 10 mW, 30 mW
  • Frequency Bandwidth: 64 MHz
  • Gain Controls: 0 db, -6 dB, -12 dB, -24dB
  • Input Connector: 3 pin mini-XLR
  • Batteries Included: 2 AA 1.5V
  • Current Consumption: 110 mA typical
  • Battery Life Approximately: 14 hours (depending on battery type and usage)
  • Input Impedance Mic: 10k ohm, Line: 1M ohm
  • Max Sound Pressure Level Approx. 128 db - 140 dB (depending on microphone)
  • Dimensions (WxLxD): 2.6x3.5x0.67" (67x90x17mm)
  • Net Weight (without batteries): 3oz (85g)
