Audix revolutionized drum and percussion miking by designing instrument specific microphones. With the introduction of the Fusion Series, Audix created two attractively priced packages for todays up and coming professionals.

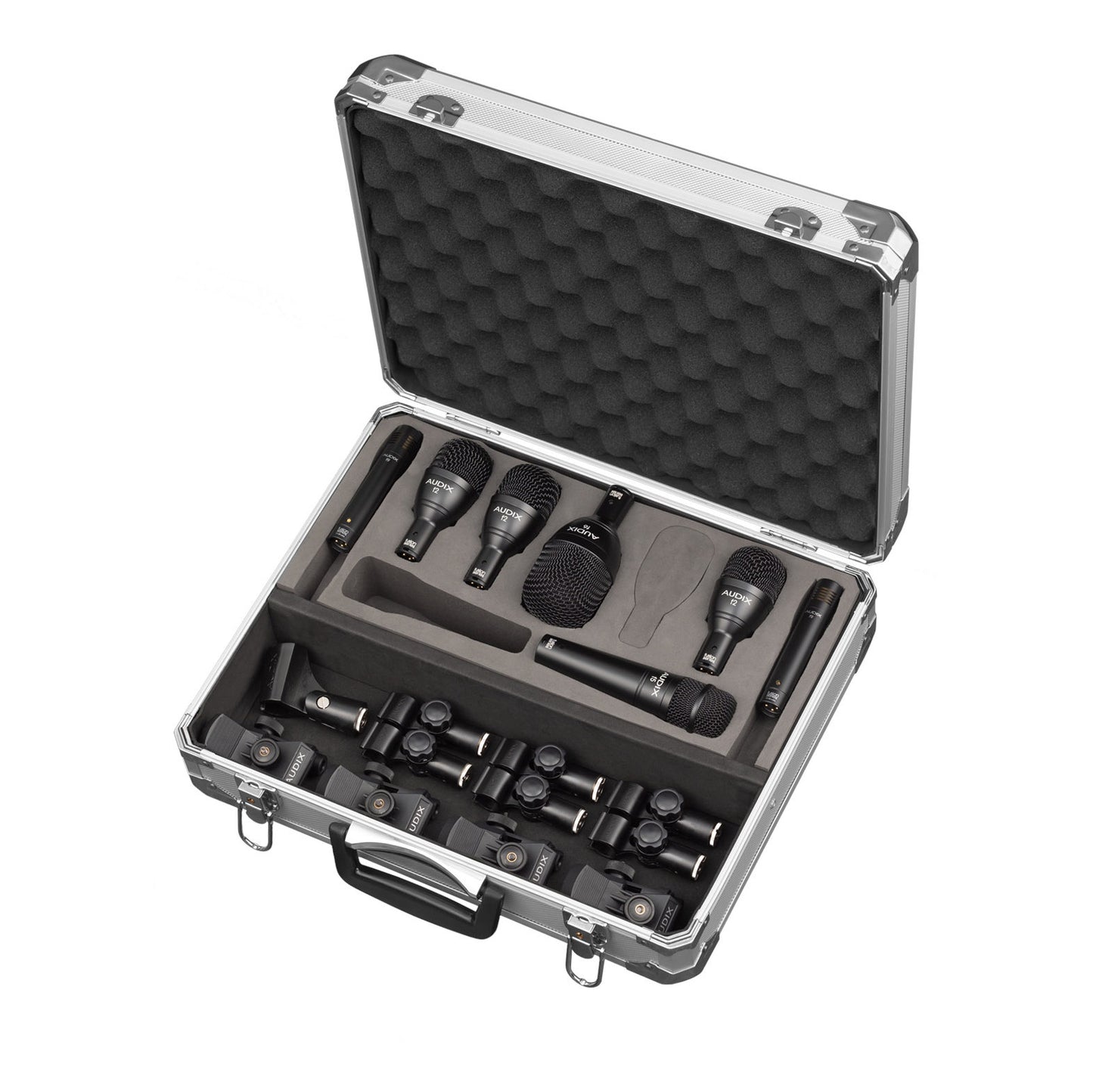

The FP7 Drum Pack contains a combination of f2, f5 and f6 dynamic microphones and the f9 condenser for overheads. The f5 is tuned for snare drum and can be used as well for bongos, timbales, guitar cabinets and acoustic instruments; the f2 dynamic microphone is ideally suited for rack and floor toms, congas, djembe, bongos, timbales, brass and woodwind instruments. The f6, with its extended bass response, is designed for kick drum, bass cabinets, cajon and other low frequency instruments. The f9 condenser microphone is intended for cymbals and hi-hat.
Built to withstand the rigors of live stage applications, the Fusion Series microphones are also excellent for rehearsal, school, House of Worship and a wide variety of home recording applications.
The high-performing f2 RACK AND FLOOR TOM MICROPHONE is best used for miking instruments requiring mid-bass and mid-high reproduction in live and studio applications. Its LM™ (Low Mass) diaphragm with hypercardioid pick-up pattern minimizes feedback and isolates the instrument from ambient sound coming from the room or other instruments on stage for natural, accurate sound reproduction.
Transformerless design, low impedance and balanced output allow for interference-free performance even with long cable runs. The f2 features a wide frequency response of 52 Hz -15 kHz and the ability to handle sound pressure levels of 139 dB. Compact, durable, and easy to position, the f2 features a precision cast zinc alloy body, dent-resistant steel mesh grill and gold plated XLR connector.
The f5 SNARE MICROPHONE is an ideal choice for live and studio applications. A hypercardioid pick-up pattern helps to minimize feedback and isolate the instrument from ambient sound and is equipped with a LM™(Low Mass) diaphragm for natural, accurate sound reproduction. The f5's low impedance and balanced output allow interference-free performance. With a wide frequency response of 55 Hz – 15 kHz, the f5 provides clear, accurate, natural sound reproduction without having to rely on EQ. The f5is able to handle sound pressure levels in excess of 137 dB without distortion. Sturdy, compact and easy to position, the f5 is manufactured with a precision cast zinc alloy body, dent-resistant steel mesh grill, durable black E-coat finish and gold plated XLR connector.
The f6 KICK DRUM MICROPHONE is designed for instruments requiring bass reproduction in live and studio applications. Its hypercardioid pick-up pattern helps to minimize feedback and isolate the instrument from ambient sounds on stage. This microphone is equipped with a LM™Type A (Low Mass) diaphragm for natural, accurate sound reproduction. Low impedance and balanced output provide interference-free performance even with long cable runs. With a wide frequency response of 40 Hz - 16 kHz and the ability to handle sound pressure levels of 140 dB, the f6 is an excellent choice for miking instruments requiring extended low frequency reproduction such as kick drum, large toms and bass cabinets. Compact and easy to position, the f6 is manufactured with a precision cast zinc alloy body, durable black E-coat finish, dent resistant steel mesh grill, and gold plated XLR connector.
The f9 OVERHEAD MICROPHONE is a professional pre-polarized condenser mic used for stage and studio applications. This all-purpose pencil condenser microphone's clear, accurate response makes it ideal for instruments requiring detailed reproduction in mid-high and extended high-end frequency ranges. With its low impedance and balanced output, the f9 provides interference-free performance. Characterized with a wide, uniformly controlled cardioid polar pattern, the f9 is designed to capture the acoustics of the instrument being miked while at the same time isolating it from the rest of the instruments on stage. Paired with high sensitivity, this mic is great for close, overhead, and distance miking. The f9 features a 16 mm pre-polarized capsule with gold vapor diaphragm and a frequency response of 40 Hz – 20 kHz. It operates on phantom power of 12-48 V. Easy to position, durable and manufactured with high standards and tight tolerances, the f9 is manufactured with a precision cast zinc alloy body, durable black E-coat finish and gold plated XLR connector.
Audix FP7 Features
- All-in-one solution for drum miking
- Instrument-specific mics for optimal results
- Cost-effective
- Rugged Audix quality
- Designed, assembled, and tested in the USA
- f5 Snare Microphone1
- f2 Rack and Floor Tom Microphones3
- f6 Kick Drum Microphone1
- f9 Overheads Microphones2
- DCLIP Microphone Clips6
- DFLEX Microphone Clips4
- MC1 Microphone Clip1
- Aluminum Road Case1
- f2 Microphone
- Transducer Type: Dynamic
- Frequency Response: 52 Hz – 15 kHz
- Polar Pattern: Hypercardioid
- Output Impedance: 580 ohms
- Sensitivity: 2 mV / Pa @ 1k
- Capsule Technology: LM Type A
- Off-Axis Rejection: >20 dB
- Maximum SPL: =139 dB
- Power Requirements: None
- Connector: 3-pin XLRm
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
- Materials / Finish: Zinc Alloy / Black Finish
- Weight: 8 oz (247 g)
- Length: 4.09 inches (104 mm)
- 3 year warranty
- f5 Microphone
- Transducer Type: Dynamic
- Frequency Response: 55 Hz – 15 kHz
- Polar Pattern: Hypercardioid
- Output Impedance: 580 ohms
- Sensitivity: 2.2 mV / Pa @ 1k
- Capsule Technology: LM Type A
- Off-Axis Rejection: >20 dB
- Maximum SPL: =137 dB
- Power Requirements: None
- Connector: 3-pin XLRm
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
- Materials / Finish: Zinc Alloy / Black Finish
- Weight: 10 oz (283 g)
- Length: 5.7 inches (145 mm)
- 3 year warranty
- f6 Microphone
- Transducer Type: Dynamic
- Frequency Response: 40 Hz – 16 kHz
- Polar Pattern: Hypercardioid
- Output Impedance: 580 ohms
- Sensitivity: 1.2 mV / Pa @ 1k
- Capsule Technology: LM Type A
- Off-Axis Rejection: >23 dB
- Maximum SPL: =140 dB
- Power Requirements: None
- Connector: 3-pin XLRm
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
- Materials / Finish: Zinc Alloy / Black Finish
- Weight: 11 oz (311 g)
- Length: 4.76 inches (121 mm)
- 3-year warranty
- f9 Microphone
- Transducer Type: Pre-Polarized Condenser
- Frequency Response: 40 Hz – 20 kHz
- Polar Pattern: Cardioid
- Output Impedance: 200 ohms
- Sensitivity: 8 mV / Pa @ 1k
- Capsule Technology: Gold Vapor Deposition
- Equivalent Noise Level: 25 dB (A-weighted)
- Signal to Noise Ratio: 69 dB
- Off-Axis Rejection: >24 dB
- Maximum SPL: =137 dB
- Power Requirements: 12-48 V Phantom
- Dynamic Range: 112 dB
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
- Materials / Finish: Zinc Alloy / Black Finish
- Weight: 3.3 oz (95 g)
- Length: 4.37 inches (111 mm)
- 3-year warranty
