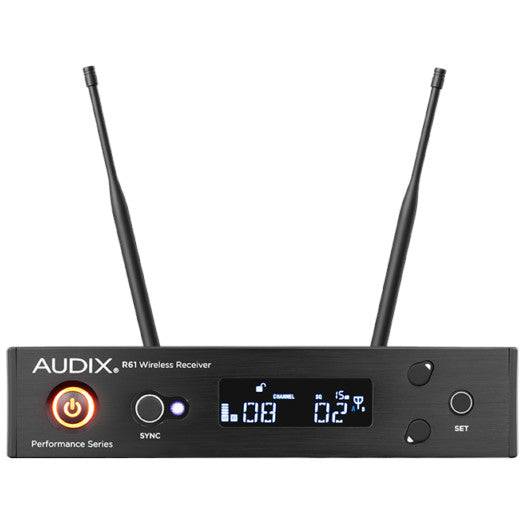

Audix R61 KIT True Diversity Wireless Receiver

The R61 Kit allows a custom system to be configured according to one’s unique application.

It's a true diversity receiver including antennas, power supply, and padded carrying case. Just add the desired handheld or bodypack transmitter of your choice to the system.

Audix R61 KIT Features

• 64 MHz Wide spectrum tuning receiver
• 207 Pre-coordinated frequencies for quick, easy, and reliable set up
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to the receiver via infrared beam
• 2560 tunable frequencies

• R61 KIT True Diversity Wireless Receiver1
• BNC Cables2
• Antennas2
• Audio Cable1
• Carrying Case1
• Power Supply1
• User Guide1
• Rackmount Hardware1

• Frequency Band522 MHz – 586 MHz
• Bandwidth 64 MHz
• Compatible Systems Up to 24 systems simultaneous use
• Switchable Frequencies 207 Pre-coordinated frequencies
• Manual Mode 2560 Tunable frequencies (spaced 25 kHz apart)
• Frequency Response 45 Hz – 18 kHz
• Compander System 2:1
• Pilot Tone 32 kHz
• Receiving System Dual tuner, true diversity
• Signal-to-Noise Ratio 112 db at 30 kHz deviation (A-weighted)
• Total Harmonic Distortion ≤0.4% (33 kHz deviation at 1 kHz)
• Sensitivity 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Audio Output (Level=6)
  • Balanced: -12 dbv @ 25 kHz deviation, 600 ohm load
  • 1/4": -18 dbv @ 25 kHz deviation, 10 k ohm load
• Output Connectors 1/4", XLR
• Audio Level Adjustment -12 to +9 in 3 db steps
• Power Supply 100 - 240V / 50 - 60 Hz, 12V DC, 1A
• Dimensions (WxDxH)8.07x8.11x1.73" (205x206x44mm)
• Net Weight 2.43 lb (1.1 kg)
