Biamp Tesira EX-MOD Modular Expander Device

The Tesira EX-MOD is a modular expander device that is designed for use with AVB-enabled Tesira server-class devices. It can be configured with up to three 4-channel input and/or output cards for a maximum of 12 channels. The expander communicates with the Tesira AVB network for audio networking, configuration, and control.

Biamp Tesira EX-MOD Features

• Can be configured with up to three I/O cards
• Up to 12 channels of analog audio
• AVB/TSN connection to Tesira system for audio networking, configuration and control

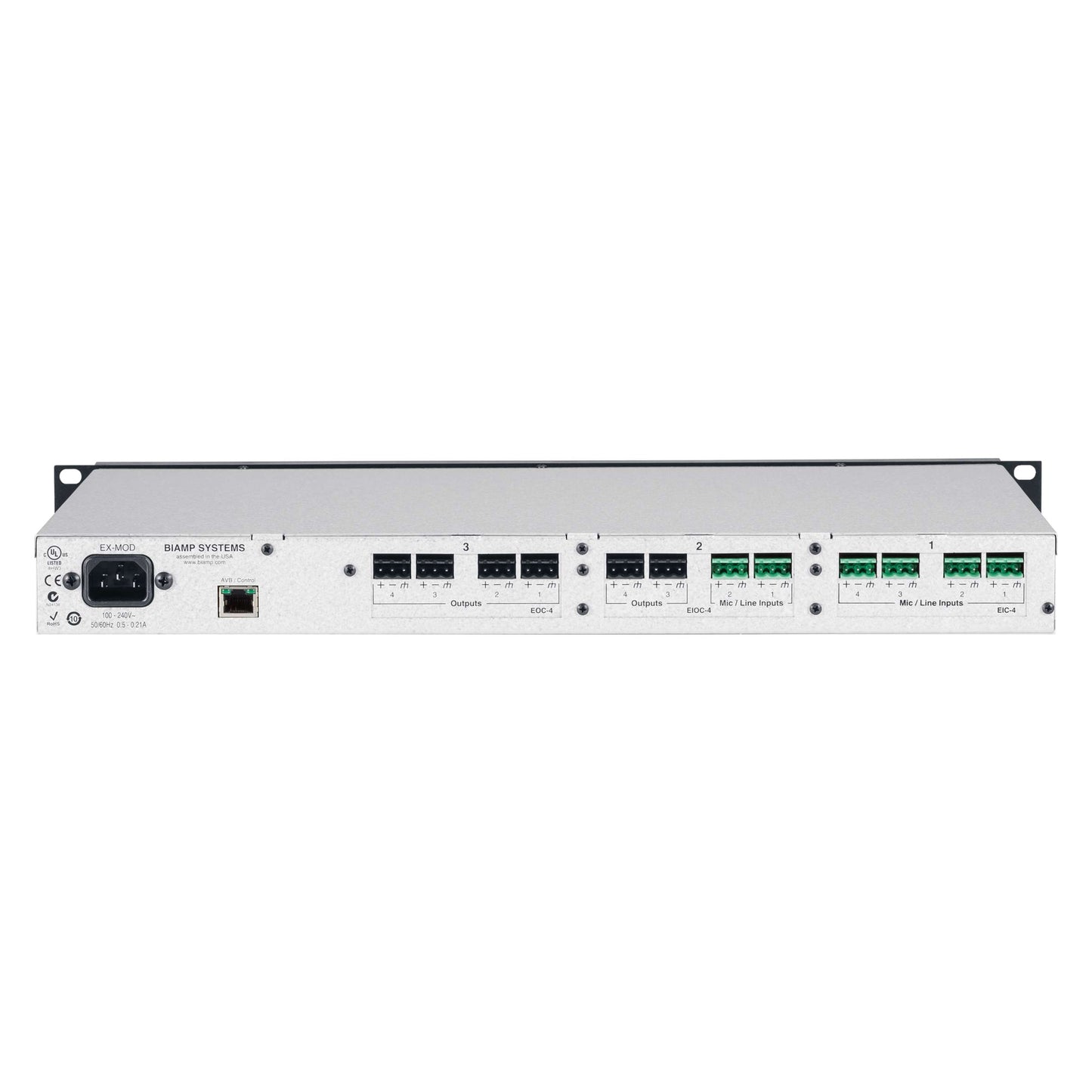

• Plug-in barrier strip connections on cards
• Front panel LEDs for device status indications
• Internal universal power supply
• Rack mountable (1RU)
• CE marked, UL listed, and RoHS compliant

• Tesira EX-MOD Modular Expander Device1
• Five Year Warranty1

• Frequency Response(20Hz~20kHz @ +4dBu): +0/-0.25dB
• THD+N (20Hz~20kHz)
  • @ 0dB Gain, +4dBu In: < 0.006%
  • @ 54dB Gain, -50dBu In: < 0.040%
• EIN (20Hz~20kHz, 66dB Gain, 150Ω)* < -125dBu
• Dynamic Range (20Hz~20kHz, 0dB)* > 108dB
• Tail Length** up to 300ms
• Convergence** up to 100dB/sec
• Input Impedance (balanced)* 8kΩ
• Maximum Input* +24dBu
• Input Gain Range (6dB Steps) 0 - 66dB
• Output Impedance (balanced)*** 200Ω
• Maximum Output*** +24dBu
• Power Consumption (100~240VAC 50/60Hz)< 40W
• Phantom Power*
  • +48 VDC
  • (7mA/input)
• Cross Talk (channel to channel @ 1kHz)*
  • @ 0dB Gain, +4dBu In: < -85dB
  • @ 54dB Gain, -50dBu In: < -75dB
• Overall Dimensions
  • Height: 1.75 inches (44 mm)
  • Width: 10.5 inches (267 mm)
  • Depth: 19.0 inches (483 mm)
  • Weight: 7 lbs (3.2 kg)
• Sampling Rate48kHz
• A/D - D/A Converters24-bit
• Compliance
  • FCC Part 15B (USA)
  • CE marked (Europe)
  • UL and C-UL listed (USA & Canada)
  • RCM (Australia)
  • EAC (Eurasian Customs Union)
  • RoHS Directive (Europe)
• Notes
  • * Specification applies to EIC-4, EEC-4, or input channels of EIOC-4
  • ** Specification applies to EEC-4
  • *** Specification applies to EOC-4 or output channels of EIOC-4
