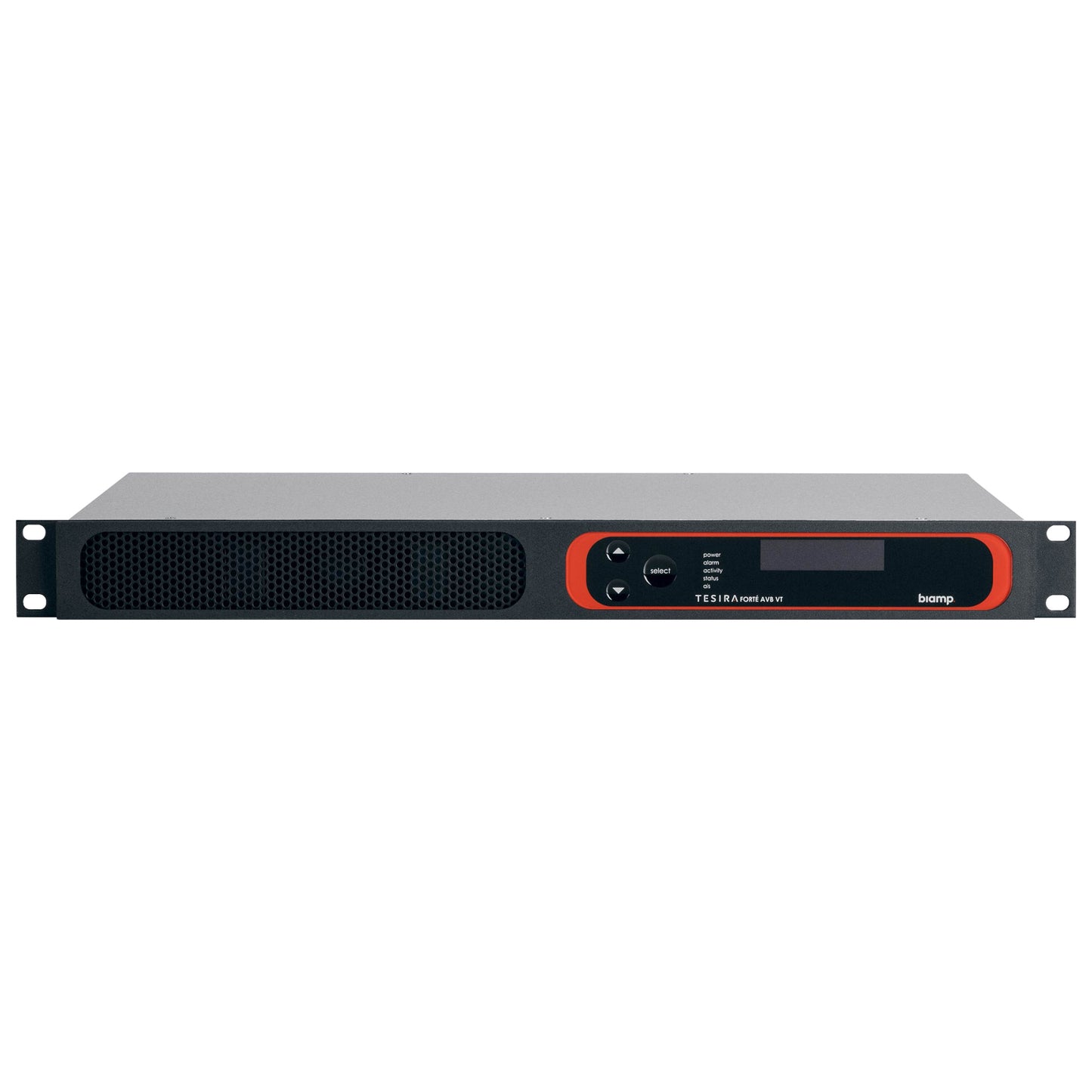

The TesiraFORTÉ AVB VT is a digital audio server with 12 analog inputs and 8 analog outputs, and includes Acoustic Echo Cancellation (AEC) technology on all 12 inputs. It includes up to 8 channels of configurable USB audio, a 2-channel VoIP interface, and a standard FXO telephone interface. TesiraFORTÉ AVB VT utilizes AVB/TSN for digital audio networking and can be used as a standalone device or combined with other TesiraFORTÉ AVB devices and Tesira servers, expanders, endpoints, and controllers.
The TesiraFORTÉ AVB VT complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Biamp TesiraFORTE AVB VT Features
- 128 x 128 channels of AVB
- 12 mic/line level inputs with AEC, 8 mic/line level outputs
- Gigabit Ethernet port
- RS-232 serial port
- 4-pin GPIO
- 2-line OLED display with capacitive-touch navigation
- Rack mountable (1RU)
- System configuration and control via Ethernet
- Internal universal power supply
- SIP VoIP interface via RJ-45 connector
- Standard FXO telephone interface via RJ-11 connector
- Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalization, filtering, and delay
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
- Compliant with the US Trade Agreement Act (TAA)
- TesiraFORTE AVB VT Fixed I/O DSP1
- Frequency Response20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB
- THD+N (22Hz to 22kHz)
- 0dB gain, +4dBu input: < 0.006%
- 54dB gain, -50dBu input: < 0.040%
- EIN (no weighting, 22Hz to 22kHz)< -125dBu
- Dynamic Range (in presence of signal)22Hz to 22kHz, 0dB gain: > 108dB
- Input Impedance (balanced) 8kΩ
- Output Impedance (balanced)207Ω
- Maximum Input +24dBu
- Maximum Output (selectable) +24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu
- Input Gain Range (6dB steps)0-66dB
- Overall Dimensions
- Height: 1.75 inches (44 mm)
- Width: 19 inches (483 mm)
- Depth: 10.5 inches (267 mm)
- Weight: 8 lbs (3.63 kg)
- Phantom Power: +48VDC (7mA/input)
- Crosstalk, channel to channel, 1 kHz
- 0dB gain, +4dBu input: < -85dB
- 54dB gain, -50dBu input: < -75dB
- Sampling Rate48kHz
- A/D - D/A Converters24-bit
- Power Consumption100-240VAC 50/60Hz: < 35W
- USB
- Bit Depth: 16- or 24-bit
- Number of Channels: up to 8
- Sample Rate: 48kHz
- Environment
- Ambient Operating
- Temperature Range: 32-104°F (0–40°C)
- Humidity: 0–98%, non-condensing
- Altitude: 0-6,600 feet (0–2000 Meters) MSL
- Compliance
- FCC Part 15B (USA)
- CE marked (Europe)
- UL und C-UL listed (USA and Canada)
- RCM (Australia)
- RoHS Directive (Europe)
