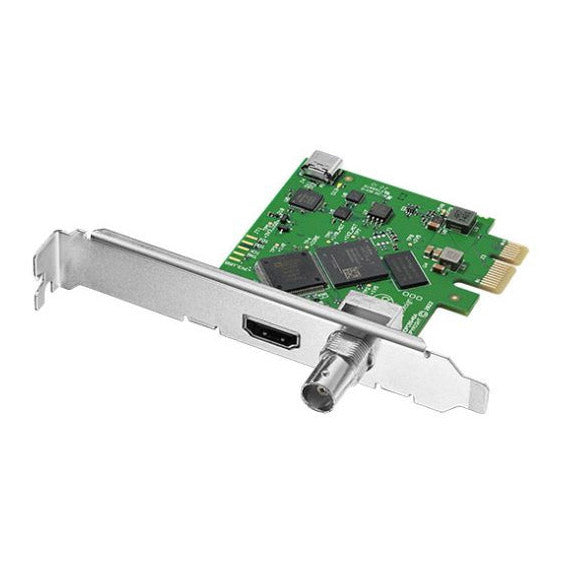

Blackmagic Design DeckLink Mini Monitor HD

DeckLink Mini Monitor HD includes 3G-SDI and HDMI 2.0 to connect to any TV, monitor or projector for broadcast monitoring, including the latest HDR formats!

Get broadcast quality HDMI and SDI video playback and monitoring from your PCIe computer! DeckLink Mini Monitor HD includes 3G-SDI and HDMI 2.0 that let you connect to any television, monitor or projector for broadcast monitoring, including the latest high dynamic range (HDR) formats! Works with software such as DaVinci Resolve, Final Cut Pro and more.

Blackmagic Design DeckLink Mini Monitor HD Features

• Broadcast quality HDMI and SDI video playback and monitoring from your PCIe computer
• Includes 3G-SDI and HDMI 2.0
• Works with DaVinci Resolve, Final Cut Pro and more
• 3 Year Limited Manufacturer's Warranty

• DeckLink Mini Monitor HD1
• Low profile slot bracket1

• Connections
  • SDI Video Output: 1 x 10-bit SD/HD switchable
  • SDI Rates: 270Mb, 1.5G, 3G
  • SDI Audio Output: 16 channels embedded in SD/HD
  • HDMI Video Output: 1 x HDMI 2.0 type A connector
  • HDMI Audio Output: 8 channels embedded in SD/HD
  • Computer Interface: PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots
• Supported Codecs
  • AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC,
  • DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC,
  • XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD,
  • Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422,
  • Apple ProRes 422 LT, Apple ProRes 422 Proxy,
  • Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
• Software
  • Included
  • Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows
  • Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux
  • Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
  • Physical Installation: PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
• Software Applications
  • DaVinci Resolve
  • Adobe Premiere Pro CC
  • Adobe Photoshop CC
  • Adobe After Effects CC
  • Steinberg Cubase
  • Steinberg Nuendo
  • Avid Pro Tools
  • Avid Media Composer
  • Fusion
  • Final Cut Pro
• SDI Video Standards
  • SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97,
  • 1080p30, 1080p50, 1080p59.94, 1080p60,
  • 1080PsF23.98, 1080PsF24, 1080PsF25,
  • 1080PsF29.97, 1080PsF30
  • 1080i50, 1080i59.94, 1080i60
  • 2K Video Standards
  • 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI,
  • 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI,
  • 2Kp59.94 DCI,2Kp60 DCI
  • 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI,
  • 2KPsF29.97 DCI, 2KPsF30 DCI
  • SDI Compliance
  • SMPTE 259M, SMPTE 274M, SMPTE 296M,
  • SMPTE 424M, SMPTE 425M A/B and SMPTE ST2108–1
  • SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
  • SDI Video Sampling: 4:2:2, 4:4:4
  • SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards
  • SDI Color Space: REC 601, REC 709 and REC 2020
  • SDI HDR Support: HDR metadata packing, HLG and PQ transfer characteristics
  • Multiple Rate Support: SDI video connection is switchable between SD and HD
• HDMI Video Standards
  • SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards
  • 720p50, 720p59.94, 720p60 1080p23.98,
  • 1080p24, 1080p25, 1080p29.97, 1080p30,
  • 1080p50, 1080p59.94, 1080p60, 1080i50,
  • 1080i59.94, 1080i60
  • HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
  • HDMI Video Sampling: 4:2:2 and 4:4:4
  • HDMI Color Precision: 10, 12-bit RGB 4:4:4 up to 1080p30, 8-bit RGB 4:4:4 and 12-bit YUV 4:2:2 in all standards
  • HDMI Configuration: HDMI 2.0 supports Deep Color and HDR. Automatically configures to connected display.
  • HDMI Color Space: REC 601, REC 709 and REC 2020
  • HDMI HDR Support: HDR metadata packing, HLG and PQ transfer characteristics.
  • Multiple Rate Support: HDMI video connection is switchable between SD and HD
• Hardware Frame Bufferv210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB)
• Processing
  • Real Time Effects: DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
  • Colorspace Conversion: hardware based real time
• Operating Systems
  • Mac 11.1 Big Sur, Mac 12.0 Monterey or later
  • Linux
  • Windows 10 64-bit, Windows 11
• Power Consumption3W
• Operating Temperature32°F to 104°F
• Storage Temperature-4°F to 113°F
• Relative Humidity0% to 90%
• Dimensions3.62"
