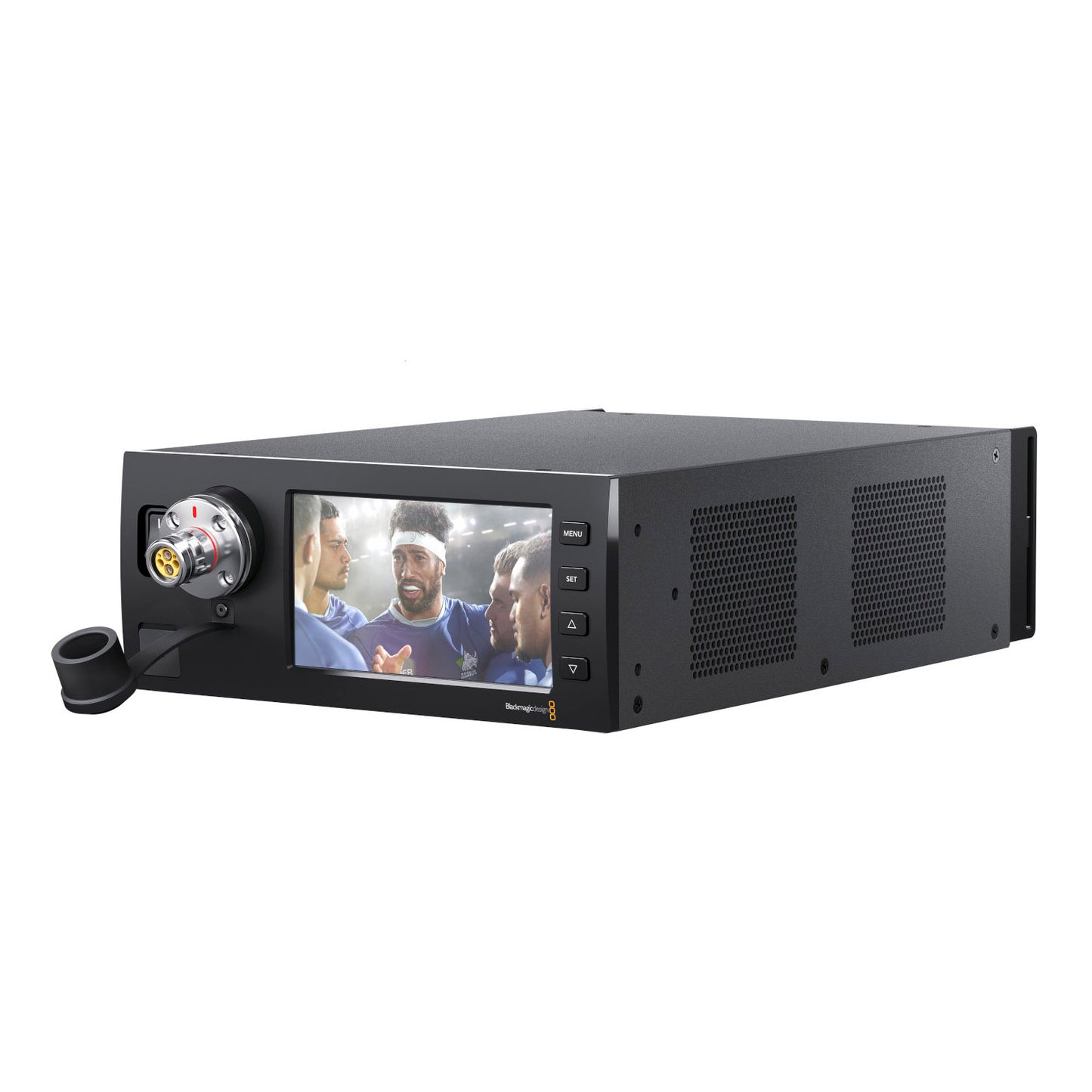

Blackmagic Design Studio Fiber Converter

Work with remote cameras up to 2 km away from your studio or outside broadcast truck using SMPTE fiber. The Blackmagic Studio Fiber Converter converts SDI video, audio, and remote camera control connections into a single optical fiber cable, which connects to a Blackmagic Camera Fiber Converter attached to a remote camera. All video and data are transmitted using standard IP for extremely low latency broadcast quality video. You get 12G-SDI for an HD or Ultra HD camera feed and 3 independent HD return feeds, along with standard connections for camera control, PTZ, two dual channel talkback intercoms, tracker talkback, tally and a 5 inch LCD screen for monitoring camera and return feeds. The Blackmagic Studio Fiber Converter also provides power for your remote cameras and accessories.

Blackmagic Design Studio Fiber Converter Features

• Work with remote cameras up to 2 km away using SMPTE fiber
• Converts SDI video, audio, and remote camera control connections into a single optical fiber cable
• All video and data are transmitted using standard IP for extremely low latency broadcast quality video
• Get 12G-SDI for an HD or Ultra HD camera feed and 3 independent HD return feeds, along with standard connections
• For camera control, PTZ, two dual channel talkback intercoms, tracker talkback, tally and a 5 inch LCD screen for monitoring camera and return feeds.
• Provides power for your remote cameras and accessories

• Studio Fiber Converter1
• Code for software download1

• Connections
  • Optical Fiber Input: 1x SMPTE Hybrid Fiber Optic with Female SMPTE 304 connector
  • SDI Video Input: 3x 12G SDI Return feeds with Program, Camera Control, Tally, Genlock and Intercom on Return 1
  • SDI Video Output: 2x 12G SDI for Ultra HD up to 60p
  • Talkback Audio: SDI Channels 15 and 16 for Production, Analogue in and out supported via 25-pin connector for Production and Engineering talkback support
  • Balanced XLR Audio Outputs: 4x camera analogue audio outputs
  • Optical Fiber Outputs: 1x Optical I/O via 10 Gb-E (not currently active)
  • Computer Interface: 1x USB-C
• Standards
  • HD Video Standards
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  • 1080i50, 1080i59.94, 1080i60
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • SDI Compliance: SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M
  • Audio Sampling: television standard sample rate of 48kHz, 24 bit A/D conversion
  • Video Sampling: 4:2:2
  • Color Precision: 10-bit
  • Color Space: REC 709, REC 2020
  • Multiple Rate Support: SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI
• Software (included)Camera Utility for firmware update
• Operating SystemsMac 10.14 Mojave, Mac 10.15 Catalina or later; Windows 8.1 and 10
• Power Supply100-240V AC input
• Physical Specifications
  • Storage Temperature: -4° to 113° F (-20° to 45° C)
  • Relative Humidity: 0% to 90% non-condensing
  • Dimensions: 14.64" x 8.28" x 3.48"
  • Weight: 6.17 pounds
