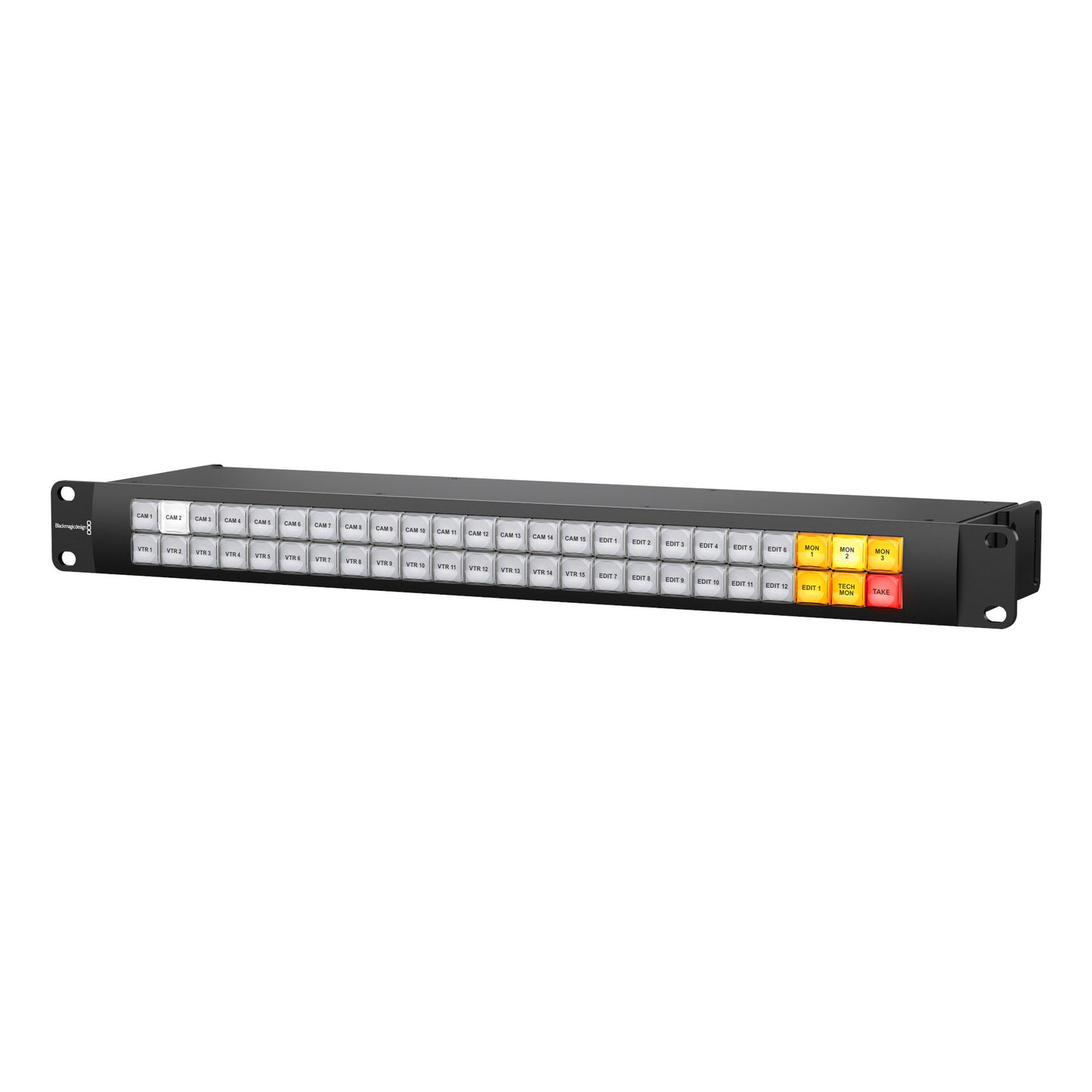

Blackmagic Design Videohub Smart Control Pro

Power supply not included - requires IEC cable.

Add the Videohub Smart Control Pro to have a hardware control panel for your Smart Videohub router.

The Smart Videohub mixed format routers have built-in video monitoring and spin knob router control in a machined aluminum body. Visual routing is extremely convenient and makes routing faster since you can route video simply by looking at it. Smart Videohub models are available with 6G-SDI and 12G-SDI technology, and with varying numbers of inputs. A CleanSwitch router is also available.

Access your whole router without losing any speed with the Videohub Smart Control Pro. Route with one press of a button. Program each of the 48 buttons to the router cross point of your choice via USB on the included software; press to make the route. Buttons can be programmed for multiple destinations and there is a take button. Controller is a small 1 RU and can be powered via DC or Ethernet connection, making it ideal for large broadcast systems or portable racks.

Blackmagic Design Videohub Smart Control Pro Features

• Hardware controller for Videohub series
• Access your router without losing speed
• Direct button entry
• 48 buttons, programmable via USB on the included software
• 1RU size
• Power via DC or Ethernet connection
• Ideal for large broadcast systems or portable racks
• 12 Months Limited Warranty

• Videohub Smart Control Pro1

• Connections
  • Ethernet: RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
  • RS-422: In and Out (for future implementation)
  • Computer Interface: USB-C for configuration and software updates
  • Power: 100 - 240 AC
• Macro Capabilityup to 10 macro buttons can be assigned to activate multiple simultaneous switching commands
• Hardware Control48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network
• Softwareinternal software upgrade via included firmware updater application via USB
• Operating Systems
  • Mac 10.15 Catalina, Mac 11.1 Big Sur or later
  • Windows 10, 64-bit
• Button Configurationincluded free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface
• Power Requirements
  • Power Fail Protection: Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
  • Power Supply: internal 100 - 240 V AC
• Physical Specifications
  • Storage Temperature: -4°F to 113°F (-20° to 45°C)
  • Relative Humidity: 0% to 90% non-condensing
  • Installation: 1 rack unit size, less than 3" deep
  • Dimensions: 18.97" x 4.41" x 1.74"
  • Weight: 2.2 pounds
