The AD11AU from Blustream has been designed to help correct audio delays incurred when separating audio and video signals in an AV system. The AD11AU can add a delay of up to 1 second selectable in 15 increments and has a volume adjustment of -75dB to 0dB.
Blustream AD11AU Features
- In-line 2ch analog audio delay with line-level volume control
- Supports 48KHz / 24 bit sample rates
- Selectable audio delay from 50-1,000ms
- Adjustable line level volume control from -75dB to 0dB
- AD11AU Analog Audio Delay Processor1
- 5V/1A DC Power Supply1
- Mounting Kit1
- Quick Reference Guide1

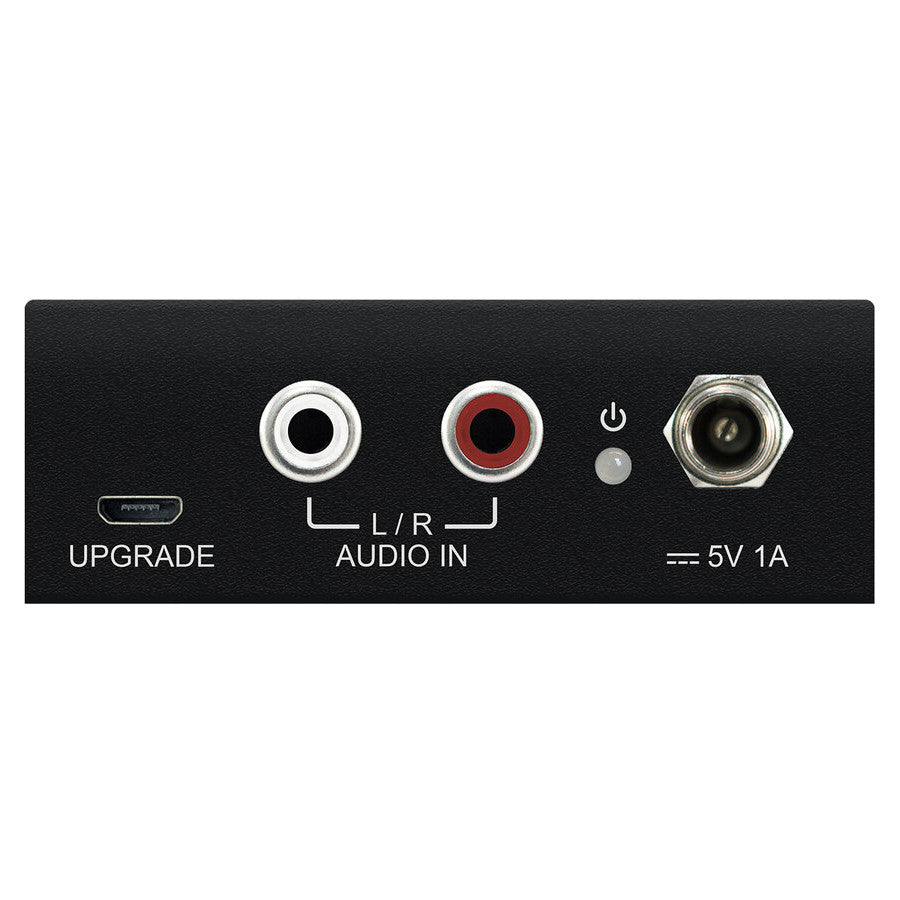

- Audio Input Connectors 2 x RCA analog left/right
- Audio Output Connectors 2 x RCA analog left/right
- Audio Delay Rotation switch
- Volume Control Rotation switch
- Casing Dimensions (W x H x D)70mm x 25mm x 73mm
- Shipping Weight 0.4kg
- Operating Temperature32°F to 104°F (-5°C to +55°C)
- Storage Temperature -4°F to 140°F (-25°C to +70°C)
- Power Supply5V/1A DC
