Built for zone-fill coverage or high-SPL foreground music, Bose ArenaMatch Utility loudspeakers feature similar tonal balance to ArenaMatch array modules but in compact designs. They have the same EMB2S compression driver as ArenaMatch arrays, ensuring consistent sound, and the same IP55 weather rating. Deploy them for zone-fill coverage in sports stadiums, arenas, outdoor entertainment centers, and more. Or use them to provide intelligible, high-level sound in any outdoor area — from niche venues such as breweries and fairgrounds to larger settings like resorts and outdoor shopping centers.

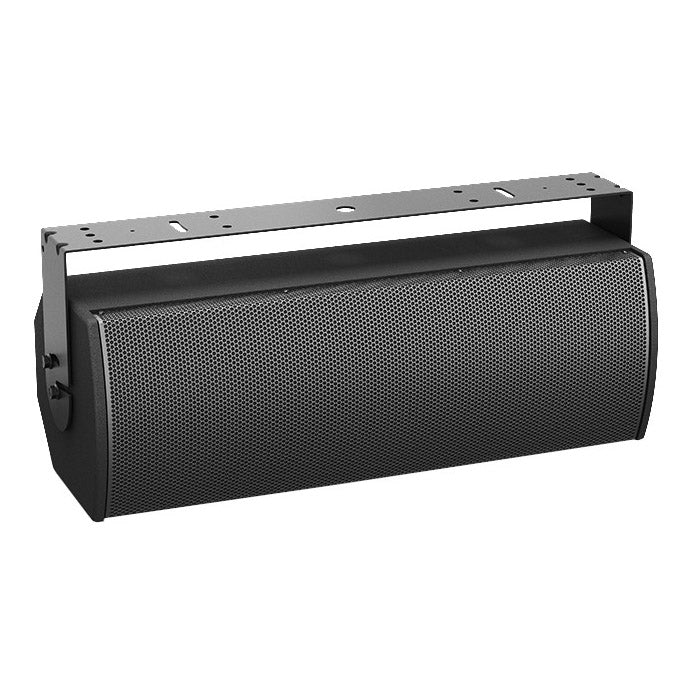

The AMU208 is a small-format ArenaMatch Utility model for outdoor applications that require excellent audio from compact loudspeaker. It provides wide, even coverage with a 90° x 60° constant-directivity high-frequency horn, 70 Hz – 16 kHz frequency response, 126 dB peak SPL, and supports the lowest vocal ranges with two Bose LF8 8-inch woofers.
Applications
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
Bose ArenaMatch Utility AMU208 Features
- Deploy as zone-fill to support ArenaMatch arrays systems, delivering powerful, intelligible sound and ensuring consistent tonal balance with EMB2S compression drivers in every speaker
- Deploy to provide high-level foreground music in any outdoor venue
- Safe for outdoor use with an IP55 weather rating
- Adaptable to a variety of configurations
- Streamline the design process by combining with complementary Bose Professional products, such as PowerMatch amplifiers and ControlSpace DSPs
- Provide wide, even coverage with 90° x 60° constant-directivity high-frequency rotatable horn
- Perform in the most demanding applications with 70 Hz – 16 kHz frequency response and 126 dB maximum peak SPL
- Support lowest vocal range with 2x Bose LF8 8-inch woofers featuring a 2-inch extended-excursion voice coil, which extends response to 70 Hz
- AMU208 outdoor speaker1
- U-bracket1
- M8 screws4
- M4 screws4
- Input cover1
- Rubber washers2
- T3 square drive1
- Frequency Response (+/-3 dB)80Hz to 16kHz
- Frequency Range (-10 dB)70Hz to 16kHz
- Nominal Coverage Pattern (HxV)90° x 60°
- Power Handling
- Peak: 1200W
- Long-term continuous: 300W
- Sensitivity
- 94 dB free field
- 96 dB wall/ceiling
- Max SPL, peak
- 125 dB free field @ 1 m
- 127 dB wall/ceiling @ 1 m
- Nominal Impedance8 Ω
