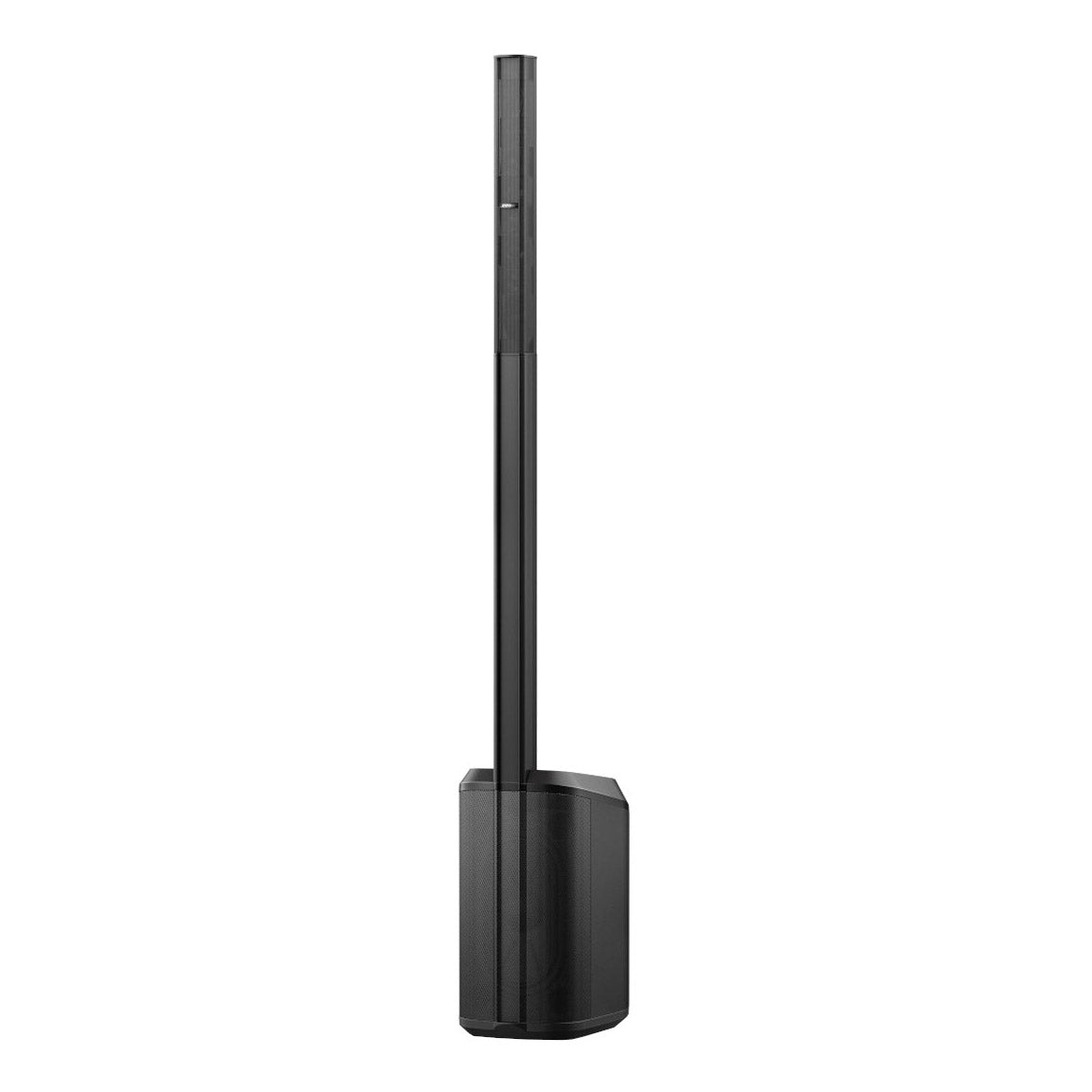

Bose L1 Pro8 Portable Line Array System

The L1 Pro8 is ready whenever you are, enabling easier load-in and faster setup. It offers generous coverage with a C-shaped line array featuring 8 articulated 2" neodymium drivers. This array delivers 180-degree horizontal coverage with wide vertical dispersion, allowing your audience to hear clearly whether they are seated or standing, even off to the extreme sides in small to medium venues like coffee shops and cafes.

The L1 Pro8 gives singer-songwriters and DJs both setup simplicity and supreme clarity — the power to sound your best and simply perform.

An integrated subwoofer with a unique RaceTrack driver design gives you powerful bass, has an optimized center of gravity, and saves a lot of space. This slim 7" × 13" driver gives you performance that rivals a conventional 12" woofer without the cumbersome size, freeing up room in your vehicle and on the stage, and making every carry in between — home to car, vehicle to venue — much easier.

Each L1 Pro system features a built-in mixer, so you can connect various instruments, microphones, and other sources easily. You get two combo XLR-1/4” phantom-powered inputs, 1/4" and 1/8" (3.5 mm) aux inputs, plus Bluetooth streaming capability. Illuminated rotary encoders give you instant access to volume, tone, and reverb settings per channel. Select between optimized system EQ presets for live music, recorded music, and more. And add in even more instruments and other audio sources via a dedicated ToneMatch port — one cable provides both power and digital audio between the system and a Bose T4S or T8S mixer (optional).

And with the intuitive L1 Mix app, you get complete wireless mixer control from your smartphone or tablet too.

With the L1 Mix app, you can adjust mixer settings instantly from your mobile device or even walk the room, hear how the mix sounds, and fine-tune as you go. Change volume and tone settings in the app and watch the LED encoder on your L1 Pro move to match — the mixer and app are always in sync, in real time. Plus, you have access to the entire ToneMatch library of custom EQ presets. With the L1 Mix app, you get the connectivity that empowers your performance, giving you greater flexibility for on-the-fly tweaks via controls that are intuitive and instant.

Bose L1 Pro8 Features

• C-shaped line array featuring 8 articulated 2" neodymium drivers
• 180° horizontal coverage with wide vertical dispersion
• Integrated subwoofer
• Built-in mixer
• Compatible with L1 Mix app

• L1 Pro8 Portable Line Array System1
• Carry Bag for arrays1
• IEC Power Cord1
• Two Year Warranty1

• System Performance
  • Frequency Response (–3 dB): 1 45 Hz to 16 kHz
  • Frequency Range (–10 dB): 33 Hz to 18 kHz
  • Nominal Vertical Coverage: Pattern 40°
  • Vertical Beam Type: C-shape
  • Nominal Horizontal Coverage Pattern: 180°
  • Calculated Maximum SPL @ 1 m, continuous: 112 dB
  • Calculated Maximum SPL @ 1 m, peak: 118 dB
  • Crossover: 200 Hz
• Transducers
  • Low Frequency: 1 × RaceTrack low-frequency driver 7" x 13"
  • Low Frequency Voice Coil Size: 2"
  • High / Mid Frequency 8 × Articulated: 2" drivers
  • High / Mid Frequency Voice Coil Size: 3/4"
  • Driver Protection: Dynamic limiting
• Amplification
  • Type: Two-channel, Class D
  • Low Frequency Amp Channel: 240 W
  • High / Mid Frequency Amp Channel: 60 W
• Onboard Mixer
  • Channels: Three
  • Channel 1 & 2 Input: Audio Type
    • Combination XLR or 1/4" TRS connector (mic/instrument/line)
  • Channel 1 & 2 Input: Input Impedance
    • 10 KΩ (XLR); 2 MΩ (TRS)
  • Channel 1 & 2 Input: Trim
    • 0 dB, 12 dB, 24 dB, 36 dB, and 45 dB analog gain steps automatically selected and compensated by DSP
  • Channel 1 & 2 Input: Channel Gain
    • –100 dB to +75 dB (XLR); –115 dB to +60 dB (TRS); from input to driver, controlled by volume knob
  • Channel 1 & 2 Input: Max Input Signal
    • +10 dBu (XLR); +24 dBu (TRS)
  • Channel 3 Input: Audio Type
    • 1/8" TRS (stereo-summed, line), 1/4" TRS (line), Bluetooth® audio streaming
  • Channel 3 Input: Input Impedance
    • 40 KΩ (3.5 mm); 200 KΩ (TRS)
  • Channel 3 Input: Channel Gain
    • –105 dB to +50 dB (3.5 mm); –115 dB to +40 dB (TRS); from input to driver, controlled by volume knob
  • Channel 3 Input: Max Input Signal
    • +11.7 dBu (3.5 mm); +24 dBu (TRS)
  • ToneMatch: Audio Type
    • RJ-45 connector for ToneMatch cable connection, providing digital audio and power connection for the optional T4S/T8S ToneMatch Mixer
  • Output: Audio Type
    • XLR connector, line level, full-frequency bandwidth
  • Bluetooth Enabled: Yes
  • Bluetooth Types: AAC or SBC for audio streaming, LE for system control
  • Channel Controls: 3 digital rotary encoders
  • Phantom Power: Channel 1 & 2
• AC Power
  • AC Power Input: 100–240 VAC (±15%, 50/60 Hz)
  • Electrical Type Input: IEC
  • Initial turn on inrush current: 15.8 A at 120 V; 30.1 A at 230 V
  • Inrush current after AC mains interruption of 5 s: 1.2 A at 120 V; 19.4 A at 230 V
• Physical
  • Color: Black
  • Enclosures  Material
    • Power stand: High-impact polypropylene
    • Extension & Array: High-impact ABS
  • Grille Material: Powder-coated perforated steel
  • Product Dimensions (H × W × D): 78.7 × 12.5 × 17.9 inches (2000 × 317 × 456 mm)
  • Shipping Dimensions (H × W × D): 37.4 × 15.75 × 24.8 inches (950 × 400 × 630 mm)
  • Net Weight: 38.2 lbs (17.4 kg)
  • Shipping Weight: 47.2 lbs (21.4 kg)
