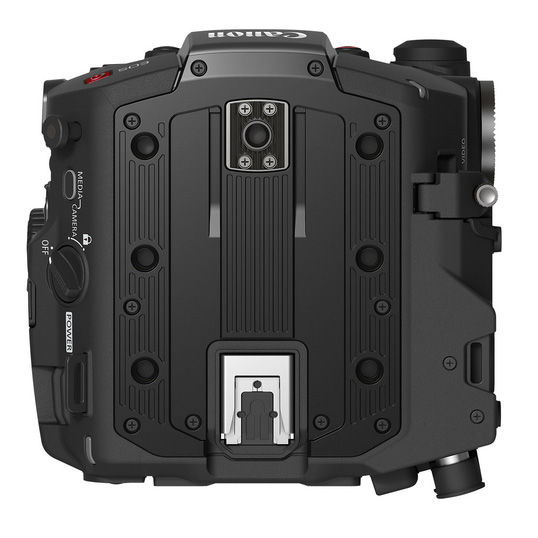

Canon EOS C400 Cinema Camera Body Only

Innovation, versatility and imaging excellence all merge in the new EOS C400, the full-frame, RF-mount cinema camera tailored for boundless creativity.

The compact camera body is well-appointed and includes Canon’s newly-developed 6K full-frame Back-Illuminated Stacked CMOS sensor. The EOS C400 features 6K/60p Cinema RAW Light and 4K/120p internal recording along with Canon’s next-generation Dual Pixel CMOS AF II, among other outstanding features. Additionally, the EOS C400 has a variety of interfaces, including return input, Ethernet, and Wi-Fi, enabling control from various Canon and third-party devices.

The EOS C400 is the ideal fusion of both functionality and form, and seamlessly integrates into almost any production with its robust and compact design.

Canon EOS C400 Features

• Body Only
• 6K Full-Frame Back-illuminated stacked CMOS sensor supports Super 35mm and Super 16 modes
• Triple-base ISO (800, 3200, 12,800)
• Internal Cinema RAW Light, XF-AVC recording and new XF-HEVC S, XF-AVC S formats
• Built-in Mechanical ND Filters
• Improved autofocus with Dual Pixel CMOS AF II
• PL-RF Mount Adapter* with Cooke/i Technology compatibility
• Variety of interfaces, including Timecode and Genlock
• Return video input and Ethernet, Wi-Fi control
• Compact, lightweight, ergonomic body design

• EOS C400 Body (RF Mount)1
• Camera Cover1
• Measure Hook1
• Camera Grip1
• Microphone Holder Unit1
• Screw for Microphone Holder Unit1
• LCD Monitor1
• LCD Attachment Unit1
• Handle Unit1
• Hex Wrench (1/4")1
• CG-A20 Battery Charger1
• CA-CP300B Compact Power Adapter1
• BP-A60N Battery Pack1
• MC-5U Monitor Cable1
• AC Cable1

• Sensor35mm full-frame CMOS sensor
• Number of Pixels
  • Total pixels: approx. 26.7 megapixels
  • Effective pixels: up to approx. 19.2 megapixels
• ISO Sensitivity160-25600 (Extended: 100-102400)
• Base ISO800 / 3200 / 12800 / Auto-change (Ex.: Canon Log 2, Canon Log 3, RAW recording)
• Sensor ModeFull-frame, Super 35mm Crop, Super 16mm Crop
• ND FilterMechanical ND filter (2 / 4 / 6 / 8* / 10* stops) *With extender
• GammaCanon Log 2, Canon Log 3, Canon 709, BT.709 Wide DR, BT.709 Standard, PQ, HLG
• Frame Rate
  • 6K 59.94P/50.00P (RAW)
  • 4.3K 59.94P/50.00P(RAW)
  • 4K 59.94P/50.00P (RAW/XF-AVC/XF-HEVC S/XF-AVC S)
  • 2K 59.94P/50.00P (RAW/XF-AVC/XF-HEVC S/XF-AVC S)
• Color SpaceCinema Gamut, BT.2020 Gamut, BT.709 Gamut
• White BalanceAuto, sunlight, tungsten, color temperature (2000K to 15000K), settings A/B
• Dynamic Range16 Stops
• AFDual Pixel CMOS AF II
• Recording Format
  • Movies: Cinema RAW Light, XF-AVC, HF-HEVC, XF-AVC S
  • Photos: JPEG
• Maximum Frame Rate* (Slow & Fast, etc.)
  • Full-frame 6000x3164/60P
  • Super35mm Crop 4368x2304/100P, 4096x2160/120P
  • Super16mm Crop 2184x1152/180P
• Recording Format (audio)
  • Linear PCM 24-bit/48kHz/4ch
  • AAC 16-bit/48kHz/2ch (XF-HEVC S / XF-AVC S)
• Recording Media
  • CFexpress card
  • SD Card
• LCD Monitor3.5-inch LCD 2.76 million dots, touch panel
• ViewfinderNo
• Multi-function ShoeYes (with power contacts)
• WiFiInternal
• Input/Output Terminals
  • Lens: Yes
  • SDI Out: Yes (BNC terminal x1, 12G/6G/3G/HD-SDI)
  • Mon: Yes (BNC terminal x1, 3G/HD-SDI)
  • HDMI: Type-A
  • Input: Mini-XLR x2 (AES/EBU not supported)
  • Ethernet: Yes
  • USB: USB Type-C, for smartphone connection
  • Video: USB Type-C11, for LCD connection
  • Grip: USB Type-C11, for grip connection
  • Mic: Φ3.5mm stereo mini jack
  • Headphone: Yes (stereo)
  • Remote A: Yes (REMOTE terminal)(φ 2.5mm)
  • Remote B (RS-422): No
  • Time Code: Yes (DIN terminal)
  • G-Lock: Yes (DIN terminal)2
  • Sync: Yes (DIN terminal)2
  • Ret: Yes (DIN terminal)2
  • DC-IN 12V: XLR (4-pin)
• BatteryBP-A30N, BP-A60N
• Operating Temperature
  • Guaranteed performance conditions: Approx. 320~ 1040 F (00~ 400 C), 85% (relative humidity)
  • Guaranteed operating conditions: Approx. 230 ~ 1130 F (-50~ 450 C), 60% (relative humidity)
• Dimensions (WxHxD)Approx. 5.6x5.3x5.3" (142x135x135mm)
• Main Body WeightApprox. 3.4 lbs. (1550g)
