The RC-IP1000 is an advanced PTZ controller enabling fast operation of multiple PTZ cameras through a newly developed control interface. Featuring 42 buttons and 14 dials, including assignable buttons, programmable trace operation, and adjustable speed and response controls, this controller helps enable intuitive control of multiple PTZ cameras quickly and easily. With a 7-inch touch panel that provides clear visibility and touch-screen control, showing operation menus and camera video feeds, capability to control up to 200 cameras over IP, and more cutting-edge capabilities, the RC-IP1000 is built for large multi-camera productions.
Canon RC-IP1000 Features
- Full-featured remote camera controller provides smooth PTZ movement and precise control
- 7” touch panel for a clear display of operation screens, live camera views, and Touch AF
- User assignable buttons and dials allow users to customize the controller to provide easy access to their most frequently used functions
- Adjust pan, tilt, zoom and change camera function settings remotely
- Support for multiple connected cameras to be operated and configured simultaneously
- Control lever and zoom rocker with adjustable reaction rate
- 4K 60P video input/output via 12G SDI
- Control up to 200 supported Canon cameras, including up to 5 over serial
- Camera OSD menu from compatible cameras can be shown on the touch panel and operated using push-button controls
- RC-IP1000 Remote PTZ Camera Controller1
- Power
- LAN Terminal: PoE+ power supply supported (IEEE802.3at Compliant), PoE cannot be used DC IN 12V terminal: DC input: DC 10.8 to 20V, 2.5 A, 4-pin XLR connector
- Power Consumption PoE+ input: 25.0 W (max power consumption) Class 4 power sourcing equipment (Requests 25.5W)
- DC input: 27.0 W (max power consumption)
- Dimensions (WxHxD): Approx. 13.47 x 5.71 x 9.65 inches (342×145×245 mm)
- Weight: Approx. 7.5 lbs (3.4kg)
- Operating Temperature: 0°C – +40°C (+32°F – +104°F)
- Camera Control
- Controller Supported Cameras: CR-N700, CR-N500, CR-N300, CR-N100, CR-X500, CR-X300, C500 Mark II (requires firmware v1.0.3.1 or later), C300 Mark III (requires firmware v1.0.1.1 or later), XF605 (requires firmware v1.0.1.1 or later), EOS C70 (requires firmware v1.0.5.1 or later)
- Number of Connectable Cameras 200 (5 with serial connection)
- Number of Camera Select Buttons 10
- Number of Camera Groups 20 (10 cameras in 1 group)
- Video Interfaces 12G-SDI IN/OUT, HDMI OUT, IP IN
- Supported Protocols
- XC protocol (IP)
- NU protocol (serial)
- Preset (Store/Play/Delete) Up to 100 for each camera
- Trace (Store/Play/Delete) Up to 10 for each camera
- Other Controls Control lever, zoom rocker, focus dial, user buttons x 10, dials x 14, up down left right select buttons
- Supported Add-On Applications
- RA-AT001 Auto Tracking Application
- RA-AL001 Auto-loop Application
- Screen
- LCD Display 7-inch touch panel, 800 x 480 resolution
- Camera Video Preview YES (SDI IN / IP), up to 9 cameras per page
- Touch Focus YES (SDI IN / IP)
- Crop Frame Control YES (SDI IN / IP, CR-N700 only)
- OSD Menu Display
- YES (SDI IN / IP, select cameras only*)
- *XF605, EOS C70, EOS C500 Mark II, EOS C300 Mark III

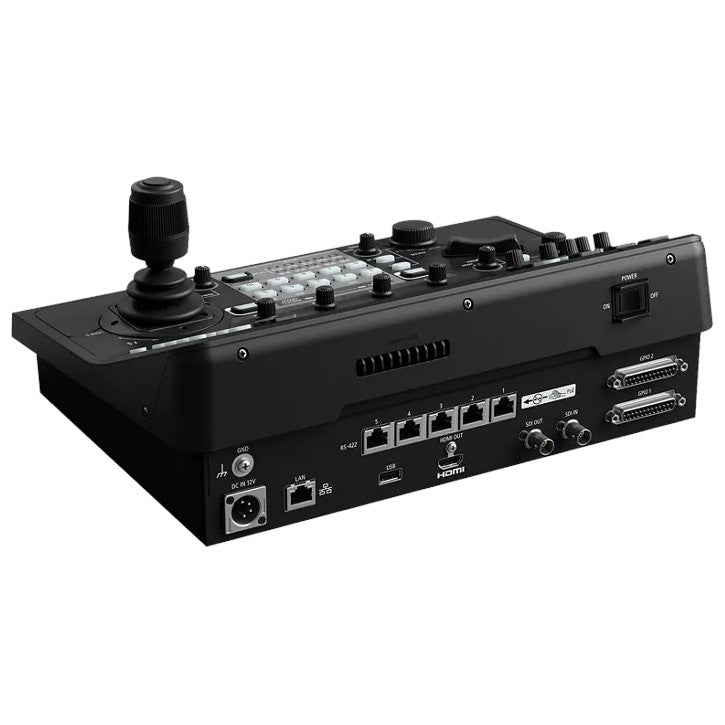

- Terminal
- GPIO D-Sub 25pin x 2 ports For GPIO external control/link
- LAN / PoE+ RJ45 port IP camera control, IP video input, PoE+ power supply
- Serial RJ45 port x 5 Serial camera control
- 12G-SDI IN SDI video input
- 12G-SDI OUT Video Output
- HDMI OUT (Type A) x1 Video Output
- 12V DC 4-Pin XLR port DC Power
- USB Type A x2 Save Settings, Firmware Update
