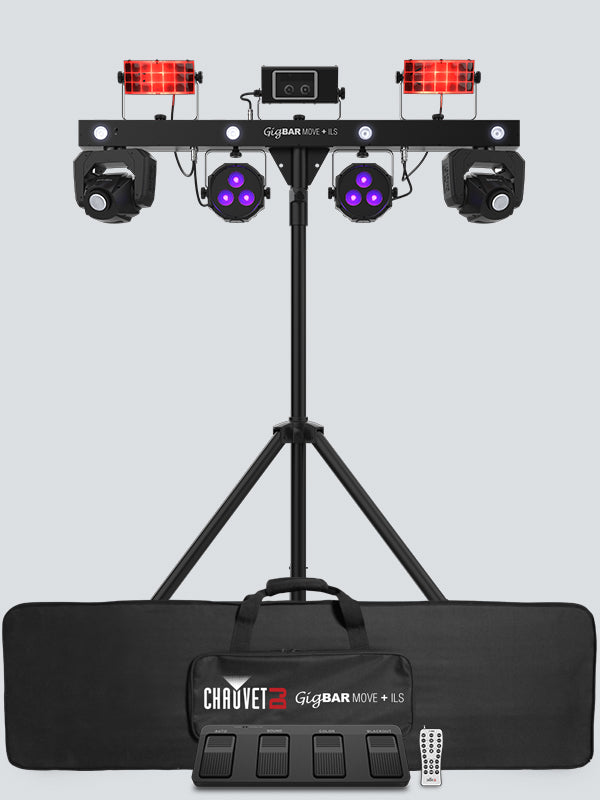

Chauvet DJ GigBAR Move + ILS 5-in-1 Lighting System

The future of easy lighting synchronization is here with GigBAR Move + ILS. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects. GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit! The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.

Chauvet DJ GigBAR Move + ILS System Features

• 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
• ILS compatibility for use in the ILS ecosystem (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
• Control any ILS-enabled fixture wirelessly with built-in D-Fi transceiver
• Use the included RF remote to trigger the built-in shows without needing line of sight
• Powerful moving heads with separate color and gobo wheels allow for creative programming
• Totem Mode keeps the moving heads focused on the dance floor
• Easy navigation and access to all moving head functions directly from the full-color LCD display
• Safely mounts to truss or ceilings using the 3/8 in threaded inserts
• System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
• Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
• Individual control of each effect ensures your show looks the way you need it to
• Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

• GigBar Move Plus ILS1
• Power cord1
• RF Remote1
• Carry bag1
• Tripod1
• Tripod carry bag1
• Footswitch1
• User Manual1

• DMX Channels3, 29, or 51)
• DMX Connectors3-pin XLR)
• Pan and Tilt540°/180°)
• Colors(moving head): 9 + open, split colors, continuous scroll at variable speeds)
• Gobos(moving head): 9 + open, continuous scroll at variable speeds)
• Light Source
  • (pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy
  • (strobe): 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy
  • (derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy
  • (moving head): 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy
  • (Laser): 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
• Strobe Rate0 to 30 Hz
• Beam Angle
  • (moving head): 17°
  • (pars): 22°
  • (strobe): 30°
• Field Angle
  • (pars): 33°
  • (strobe): 62°
• Coverage Angle
  • (derby): 131°
  • (laser): 93°
• Fits Tripod Size1.5 in (37.4 mm) )
• Illuminance
  • (pars) 1,205 lux @ 2 m (per par)
  • (moving head) 5,140 lux @ 2 m (per head)
  • (strobe) 130 lux @ 2 m
• Power Linking7 units @ 120 V; 12 units @ 230 V)
• Input Voltage100 to 240 VAC, 50/60 Hz (auto-ranging) )
• Power and Current
  • 250 W, 3 A @ 120 V, 60 Hz
  • 248 W, 1.8 A @ 230 V, 50 Hz
• Weight(bar only) 31 lbs (14 kg)
• Size43 x 5.7 x 17.7 in (1100 x 144 x 449 mm) )
• ApprovalsCE, UKCA, RoHS, FCC, FDA)
• Stand Height 4.8 ft to 8.3 ft (1.5 to 2.5 m) )
• Footswitch Operating Frequency 433 MHz)
• Footswitch Max Unobstructed Distance 100 ft (30.5 m) )
• Max Unobstructed Distance (D-Fi) 600 ft (183 m) )
• Footswitch Battery 9 V alkaline)
• Included Controllers RF remote, wireless footswitch)
• Cable Length 10 ft (3 m) )
• Tripod Thickness 1.37 in (35 mm) )
• Optional Controllers RF)
• RF Remote Battery 23A, 12 V alkaline)
